How to install an LED side light bar on a trailer?

Installing an LED side light bar on a trailer can significantly enhance visibility and safety, especially during nighttime driving or in low - light conditions. As an experienced LED Side Light Bar supplier, I'm here to guide you through the entire installation process step by step.

Step 1: Gather the Necessary Tools and Materials

Before you start the installation, you need to collect all the tools and materials required. Here's a list of what you'll need:

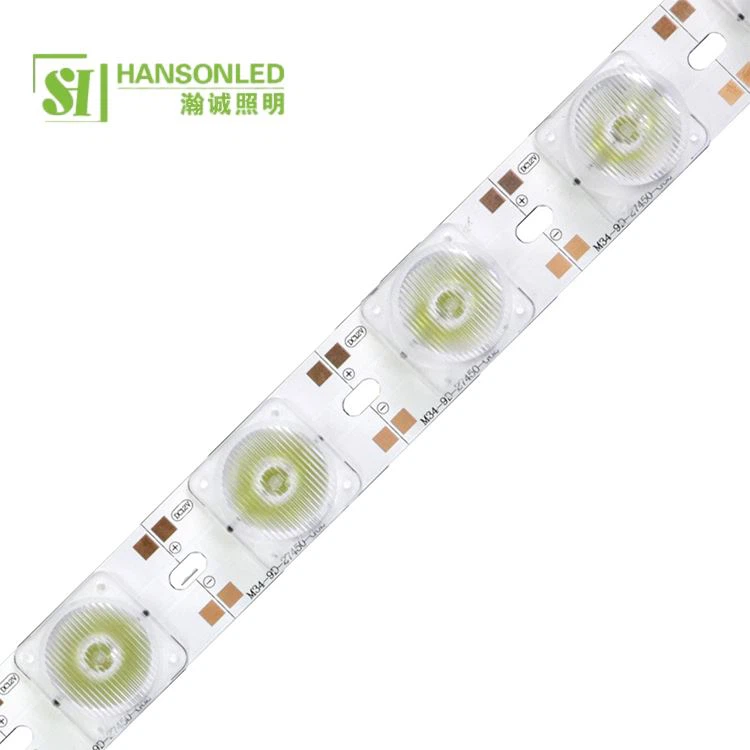

• LED side light bar: We offer a variety of options, such as the Slimline LED light bar with 12 LEDs and the Slimline LED light bar with 9 LEDs. These light bars are designed to provide bright and uniform illumination.
• Drill and drill bits: You'll need a drill to make holes for mounting the light bar. Make sure to choose the appropriate drill bit size according to the mounting hardware of your light bar.
• Screwdriver: Both a Phillips - head and a flat - head screwdriver may be needed for different tasks, such as removing any existing fixtures or tightening screws.
• Wire strippers: These are essential for preparing the electrical wires for connection.
• Electrical tape: It helps to insulate the electrical connections and prevent short - circuits.
• Mounting hardware: This usually includes screws, bolts, and nuts provided with the light bar.
• Wiring harness: A wiring harness is used to connect the light bar to the trailer's electrical system. You can choose a Quality Led Light Bar that comes with a high - quality wiring harness for a more reliable connection.

Step 2: Choose the Mounting Location

The next step is to decide where you want to mount the LED side light bar on your trailer. Here are some factors to consider:

• Visibility: The light bar should be mounted in a location where it can provide maximum visibility to other road users. A common choice is to mount it along the sides of the trailer, close to the bottom.
• Accessibility: Make sure the mounting location allows easy access to the light bar for maintenance and replacement in the future.
• Protection: Avoid mounting the light bar in areas where it may be easily damaged by debris or road hazards.

Once you've chosen the mounting location, use a measuring tape to mark the exact position where the light bar will be installed. Make sure the markings are straight and evenly spaced.

Step 3: Prepare the Trailer for Mounting

Before you can mount the light bar, you need to prepare the trailer surface. If there are any existing fixtures or debris on the mounting area, remove them using a screwdriver or a scraper. Clean the surface thoroughly with a degreaser or a mild detergent to ensure good adhesion and a secure mount.

Step 4: Mount the LED Side Light Bar

Now it's time to mount the light bar. Follow these steps:

1. Place the light bar on the marked mounting location. Make sure it is aligned correctly and level.
2. Using the drill, make holes through the mounting holes on the light bar and into the trailer surface. Be careful not to drill too deep and damage the trailer's structure.
3. Insert the mounting screws or bolts through the holes in the light bar and into the holes in the trailer. Tighten the screws or bolts securely using a screwdriver or a wrench. Make sure the light bar is firmly attached to the trailer.

Step 5: Connect the Wiring

After mounting the light bar, it's time to connect the wiring. Here's how:

1. Locate the wiring harness that came with the light bar. It usually consists of a power wire, a ground wire, and sometimes a control wire.
2. Identify the corresponding wires in the trailer's electrical system. The power wire should be connected to a source of 12 - volt power, such as the trailer's battery or the lighting circuit. The ground wire should be connected to a good ground point on the trailer, such as a metal frame.
3. Use the wire strippers to remove about half an inch of insulation from the ends of the wires.
4. Connect the power wire of the light bar to the power source in the trailer. You can use a crimp connector or solder the wires together. Make sure the connection is secure and insulated with electrical tape.
5. Connect the ground wire of the light bar to the ground point on the trailer in the same way.
6. If your light bar has a control wire, connect it to the appropriate control switch or circuit in the trailer.

Step 6: Test the Light Bar

Once you've completed the wiring connections, it's time to test the light bar. Turn on the trailer's electrical system and check if the light bar illuminates. If the light bar doesn't work, check the wiring connections to make sure they are secure and properly connected. You may also need to check the fuse in the trailer's electrical system.

Step 7: Secure the Wiring

After testing the light bar and ensuring it works properly, secure the wiring to prevent it from getting tangled or damaged. You can use cable ties or wire clips to attach the wiring to the trailer's frame or other components. Make sure the wiring is routed away from any moving parts or hot surfaces.

Step 8: Final Checks

Before you hit the road, perform a final check of the light bar and the wiring. Make sure the light bar is securely mounted, the wiring is properly connected and secured, and there are no loose or exposed wires. Check the brightness and color of the light to ensure it meets your expectations.

Installing an LED side light bar on a trailer is a relatively straightforward process that can be completed with basic tools and some electrical knowledge. By following these steps, you can enhance the visibility and safety of your trailer.

If you're interested in purchasing high - quality LED side light bars for your trailer, we are here to assist you. We offer a wide range of LED side light bars with different features and specifications to meet your specific needs. Whether you need a Slimline LED light bar for a sleek look or a Quality Led Light Bar for reliable performance, we have the perfect solution for you. Contact us today to discuss your requirements and start the procurement process.
