Can multiple 24V LED Modules be connected in series?

Hey there! As a supplier of 24V LED Modules, I often get asked whether multiple 24V LED Modules can be connected in series. It's a great question, and today I'm gonna break it down for you.

Let's first understand what it means to connect LED modules in series. When you connect things in series, you're essentially hooking them up one after the other so that the current flows through each component in a single path. In the case of LED modules, this means that the positive terminal of one module is connected to the negative terminal of the next module.

The Basics of Series Connections

One of the main advantages of connecting 24V LED Modules in series is that it can simplify your wiring setup. Instead of having multiple power connections for each module, you can have one main power source that feeds the entire string of modules. This can save you time and money on installation, especially in large - scale projects.

But here's the catch. When you connect LED modules in series, the voltage across the entire string adds up. So, if you have two 24V LED Modules connected in series, the total voltage required to power the string will be 48V. And if you have three modules, it'll be 72V, and so on.

Can You Actually Do It?

The short answer is yes, you can connect multiple 24V LED Modules in series, but there are some important factors to consider.

First off, you need to make sure that your power supply can handle the increased voltage. If your power supply is only rated for 24V and you try to connect multiple modules in series, you'll end up overloading it, which can cause the power supply to fail or even pose a safety hazard. So, you'll need to invest in a power supply that can provide the appropriate voltage for the number of modules you're connecting in series.

Another thing to keep in mind is the current. In a series circuit, the current remains the same throughout. This means that all the LED modules in the string will draw the same amount of current. So, you need to ensure that the LED modules you're using are compatible in terms of their current requirements. If one module has a significantly different current draw than the others, it can lead to uneven brightness or even damage to the modules.

Examples of 24V LED Modules

We offer a variety of 24V LED Modules that are popular among our customers. For instance, the 24V LED Module Single LED is great for applications where you need a single, focused light source. It's simple, efficient, and easy to install.

If you need more light output, the 24V LED Module 3 LED might be a better choice. With three LEDs in one module, it provides a brighter and more evenly distributed light.

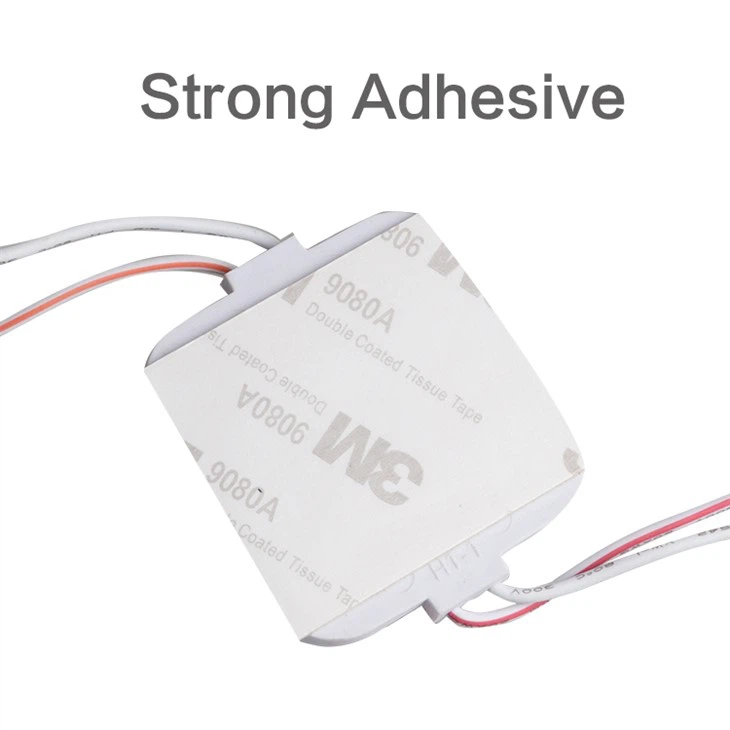

And for those who are looking for a unique design, our 24V LED Square Module is a fantastic option. Its square shape can add a modern and stylish touch to any project.

Advantages and Disadvantages

Let's talk about the pros and cons of connecting 24V LED Modules in series.

Advantages

• Simplified Wiring: As mentioned earlier, series connections can reduce the number of power connections, making the installation process quicker and easier.
• Cost - Effective: In some cases, using a single higher - voltage power supply for a series of modules can be more cost - effective than using multiple lower - voltage power supplies.

Disadvantages

• Voltage Requirements: You need to have a power supply that can handle the increased voltage, which can be an additional expense.
• Failure Risk: If one module in the series fails, it can break the circuit and cause all the other modules in the string to stop working.

Tips for Connecting in Series

If you decide to connect multiple 24V LED Modules in series, here are some tips to help you do it right:

• Choose the Right Power Supply: Make sure your power supply can provide the correct voltage and current for the number of modules you're connecting.
• Check Compatibility: Ensure that all the modules have similar current requirements to avoid uneven brightness or damage.
• Use Quality Components: Invest in high - quality LED modules and wiring to minimize the risk of failure.

Conclusion

So, to sum it up, yes, multiple 24V LED Modules can be connected in series, but it's important to do it with caution. You need to consider the voltage and current requirements, as well as the compatibility of the modules. If you have any questions or need help choosing the right LED modules for your project, don't hesitate to reach out.

Whether you're working on a small DIY project or a large commercial installation, we're here to help. Our team of experts can provide you with all the information you need and assist you in finding the best solutions for your lighting needs. So, if you're interested in purchasing our 24V LED Modules or have any questions about series connections, feel free to contact us for a purchase negotiation. We're looking forward to working with you!
