Are there any special requirements for the power supply of a top view neon flex?

As a supplier of Top View Neon Flex, I often receive inquiries from customers about the power supply requirements for these products. In this blog post, I'll delve into the special requirements for the power supply of Top View Neon Flex and provide some insights to help you make informed decisions when using and purchasing these products.

Understanding Top View Neon Flex

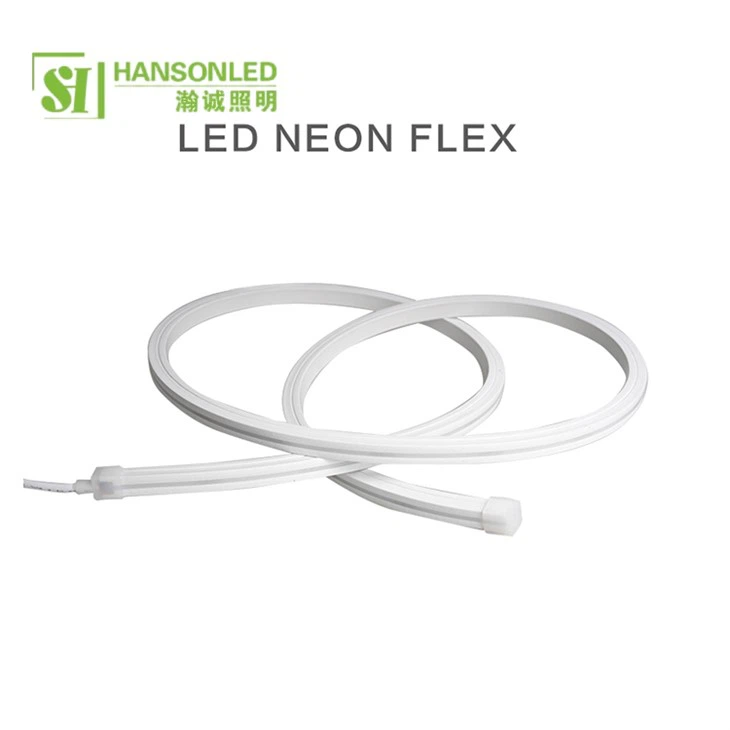

Top View Neon Flex is a popular lighting solution known for its flexibility, energy - efficiency, and vibrant illumination. It is widely used in various applications, including signage, architectural lighting, and decorative lighting. Our product line includes Top View Neon Flex 1616 and Top View Neon Flex 1010, which come in different sizes and specifications to meet diverse customer needs. Additionally, we also offer Flexible Led Neon Rope Light, a similar product with unique features.

Voltage Requirements

One of the primary considerations for the power supply of Top View Neon Flex is the voltage. Most Top View Neon Flex products operate on a low - voltage DC power supply, typically 12V or 24V. The choice between 12V and 24V depends on several factors, including the length of the neon flex, the number of LEDs, and the overall power consumption.

• 12V Power Supply: A 12V power supply is suitable for shorter lengths of Top View Neon Flex. It is often used in small - scale applications, such as indoor decorative lighting or small signage. The advantage of a 12V power supply is its lower voltage, which can be safer in some environments. However, for longer lengths of neon flex, a 12V power supply may result in voltage drop, which can cause uneven lighting and reduced brightness at the end of the strip.
• 24V Power Supply: A 24V power supply is recommended for longer lengths of Top View Neon Flex. It can minimize voltage drop, ensuring more consistent brightness along the entire length of the neon flex. This makes it ideal for large - scale applications, such as architectural lighting or large - format signage. While a 24V power supply may require more careful handling due to the higher voltage, it offers better performance for extended installations.

Current and Power Capacity

In addition to voltage, the current and power capacity of the power supply are also crucial. The current rating of the power supply should be sufficient to meet the power requirements of the Top View Neon Flex. To calculate the power consumption of the neon flex, you need to know the power per meter of the product and the total length of the installation.

For example, if a particular Top View Neon Flex has a power consumption of 6W per meter and you are installing a 5 - meter strip, the total power consumption will be 6W/m * 5m = 30W. In this case, you should choose a power supply with a power capacity of at least 30W. It is advisable to select a power supply with a slightly higher power capacity than the calculated requirement to account for any potential fluctuations in power consumption and to ensure the longevity of the power supply.

Power Supply Quality

The quality of the power supply can significantly impact the performance and lifespan of the Top View Neon Flex. A high - quality power supply should have stable voltage output, low ripple, and good protection features.

• Stable Voltage Output: A stable voltage output is essential to ensure consistent brightness and color of the Top View Neon Flex. Fluctuations in voltage can cause the LEDs to flicker or change color, which can be a major issue, especially in applications where visual quality is crucial.
• Low Ripple: Ripple refers to the small fluctuations in the DC voltage output. High ripple can cause the LEDs to emit a faint flicker, which may not be visible to the naked eye but can be detected by cameras or in certain lighting conditions. A power supply with low ripple can provide smoother and more stable lighting.
• Protection Features: A good power supply should have protection features such as over - current protection, over - voltage protection, and short - circuit protection. These features can prevent damage to the Top View Neon Flex and the power supply itself in case of electrical faults.

Dimming and Control

Many customers also require the ability to dim or control the Top View Neon Flex for different lighting effects. If you plan to use a dimming function, you need to choose a power supply that is compatible with dimming controllers.

There are different types of dimming controllers available, such as PWM (Pulse Width Modulation) dimmers and analog dimmers. PWM dimmers are more commonly used for LED lighting as they offer better dimming performance and can achieve a wider dimming range. When selecting a power supply for dimming applications, make sure it can work seamlessly with the chosen dimming controller.

Environmental Considerations

The environment in which the Top View Neon Flex is installed can also affect the power supply requirements. For outdoor applications, the power supply should be weather - resistant and able to withstand extreme temperatures, humidity, and other environmental factors.

• Weather - Resistance: Outdoor power supplies should be IP (Ingress Protection) rated to protect against dust and water. An IP65 or higher rating is recommended for outdoor use, which means the power supply is protected against low - pressure water jets from any direction and dust ingress.
• Temperature Range: The power supply should be able to operate within the temperature range of the installation environment. In cold climates, a power supply with a low - temperature operating range is required to ensure reliable performance. In hot climates, proper ventilation and heat dissipation are necessary to prevent overheating of the power supply.

Safety Precautions

When working with the power supply of Top View Neon Flex, it is important to follow safety precautions to avoid electrical hazards.

• Proper Installation: Ensure that the power supply is installed correctly, following the manufacturer's instructions. The power supply should be mounted in a well - ventilated area away from flammable materials.
• Insulation and Grounding: Make sure all electrical connections are properly insulated to prevent short - circuits. Additionally, the power supply should be grounded to protect against electrical shock.
• Regular Inspection: Periodically inspect the power supply and the connections for any signs of damage or wear. Replace any damaged components immediately to ensure safe operation.

Conclusion

In conclusion, there are several special requirements for the power supply of Top View Neon Flex, including voltage, current, power capacity, quality, dimming capabilities, environmental suitability, and safety. By understanding these requirements and choosing the right power supply, you can ensure optimal performance, longevity, and safety of your Top View Neon Flex installation.

If you are interested in purchasing Top View Neon Flex or have any questions about power supply requirements, please feel free to contact us. We are here to provide you with professional advice and high - quality products to meet your lighting needs.
