What is the maximum length of an Edge Lit LED Module?

As an Edge Lit LED Module supplier, I often get asked about the maximum length of these modules. It's a valid question, especially for those looking to use them in large - scale lighting projects. In this blog, I'll dive into what affects the maximum length of an Edge Lit LED Module and share some insights from my experience in the industry.

Let's first understand what an Edge Lit LED Module is. Simply put, it's a lighting component where LEDs are placed along the edge of a light - guiding panel. The light from the LEDs then spreads across the panel, creating a uniform and often very bright light source. These modules are super versatile and can be used in various applications, like backlighting for signs, display cases, and even in some architectural lighting setups.

There are several factors that come into play when determining the maximum length of an Edge Lit LED Module. One of the most significant factors is the power supply. LEDs need a certain amount of power to function properly. As the length of the module increases, the power required to illuminate the entire length also goes up. If the power supply can't keep up, the light output might become uneven, or some parts of the module might not light up at all.

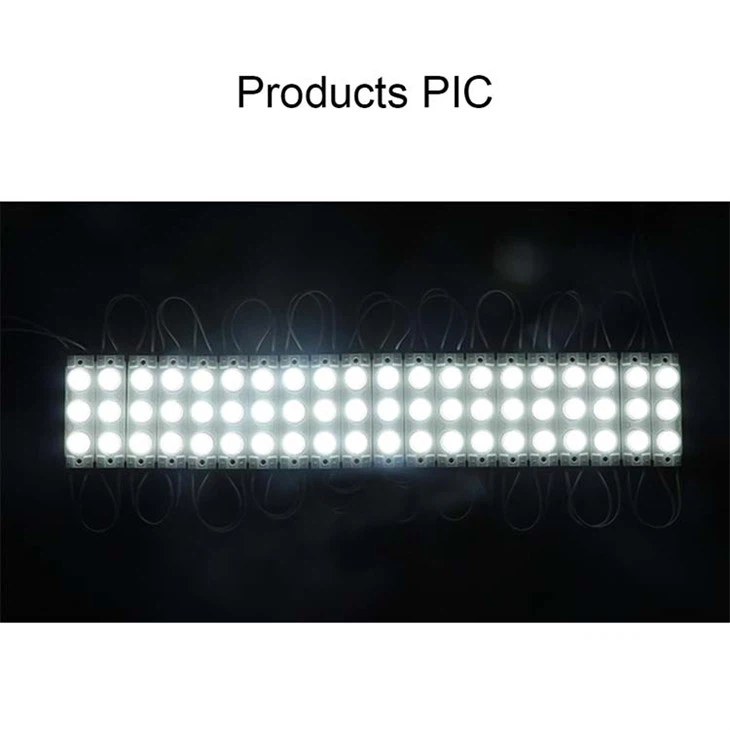

For example, our Edge Lit LED Module 2w is designed for smaller - scale applications. With a relatively low power output, its maximum length is limited. It's great for projects where you don't need a long stretch of lighting, like small signage or a compact display. On the other hand, our Edge Lit LED Module High Power can handle more power and, as a result, can be made longer. It's suitable for larger projects, such as big - sized backlit displays in shopping malls.

Another factor is the light - guiding technology used in the module. The efficiency of the light - guiding panel determines how well the light spreads along the length of the module. A high - quality light - guiding panel can ensure that the light is evenly distributed over a longer distance. Cheaper or lower - quality panels might cause the light to fade or become patchy as you move further from the LEDs.

The type of LEDs used also matters. Different LEDs have different brightness levels and beam angles. LEDs with a wider beam angle can spread the light more effectively over a longer distance. When we're designing our LED Edge Light Module, we carefully select the LEDs to optimize the light output and the maximum achievable length.

Heat dissipation is yet another crucial aspect. As the LEDs operate, they generate heat. If the heat isn't dissipated properly, it can damage the LEDs and reduce their lifespan. In longer modules, the heat build - up can be more of a problem. We use advanced heat - sinking techniques in our high - end modules to ensure that the LEDs stay cool, even when the module is long.

In general, for standard Edge Lit LED Modules, the maximum length can range from a few feet to around 10 - 15 feet. However, in some special cases, with the right combination of high - power LEDs, efficient light - guiding panels, and excellent heat dissipation, we've been able to create modules that are up to 20 feet long.

But it's important to note that just because a module can be made long doesn't mean it should be. Longer modules can be more challenging to install and maintain. You need to ensure that the installation surface is flat and stable. Any unevenness can cause the light to appear distorted. Also, if there's a problem with one part of a long module, it can be more difficult to troubleshoot and repair compared to a shorter one.

When you're planning a lighting project, it's a good idea to think about the overall design and functionality. Sometimes, it might be better to use multiple shorter modules instead of one long one. This can give you more flexibility in terms of installation and maintenance.

If you're in the market for Edge Lit LED Modules, whether it's for a small project or a large - scale one, we're here to help. We have a wide range of products to suit different needs and budgets. Our team of experts can work with you to determine the best solution for your specific requirements. Whether you need a short, low - power module or a long, high - power one, we can provide the right product and offer advice on installation and maintenance.

Don't hesitate to reach out to us if you have any questions or if you're ready to start your lighting project. We're always happy to have a chat and discuss how our Edge Lit LED Modules can meet your needs. Let's work together to create the perfect lighting solution for your space.

References:

• Industry knowledge and experience in Edge Lit LED Module manufacturing.
• Research on LED technology and light - guiding principles.
