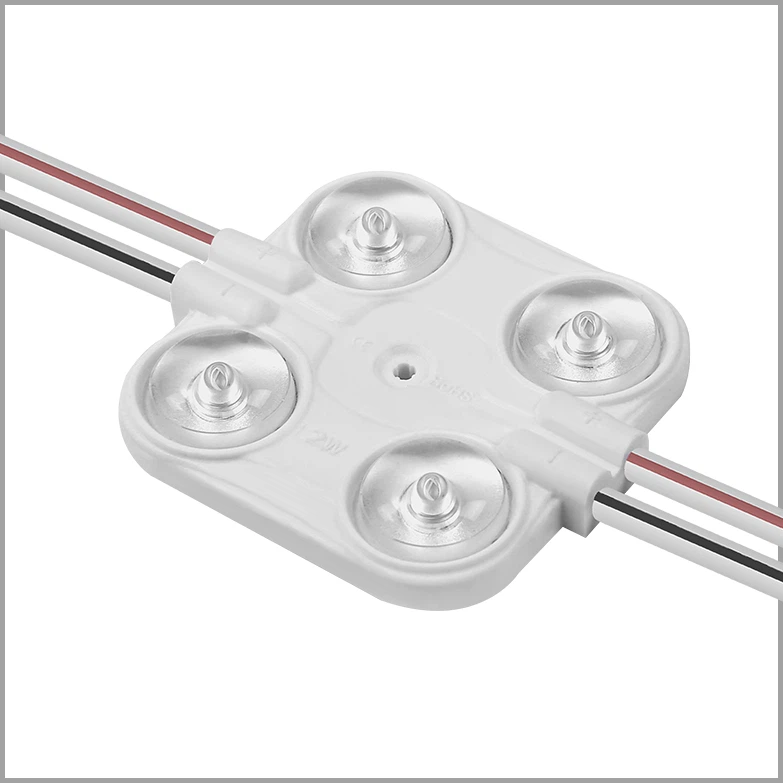

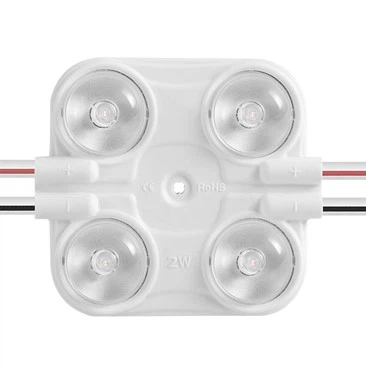

24V LED Square Module
◆ 95% transmittance lens,Wide view angle 170°
◆ Constant Current Technology ，20 pcs per series
◆ The exposed Aluminum plate for heat dissipation
◆ Injection molding process
◆ Energy Class reach to "C"
◆ Special Opitical Lens,can reach ratio 1:2.5
◆ Suitable for 10-25cm height channel letters and light boxes backlighting etc.
Description
Technical Parameters
24V LED Square Module
Product Feature
◆ 95% transmittance lens,Wide view angle 170°
◆ Constant Current Technology ,20 pcs per series
◆ The exposed Aluminum plate for heat dissipation
◆ Injection molding process
◆ Energy saving, Environment friendly
◆ Special Opitical Lens,can reach ratio 1:2.5
◆ Suitable for 10-25cm height channel letters and light boxes backlighting etc.

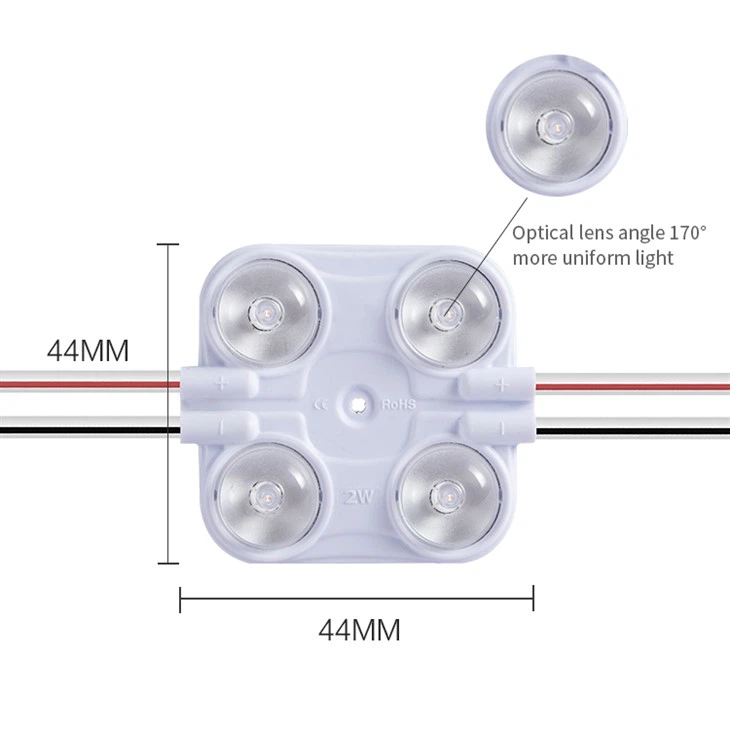

Product size

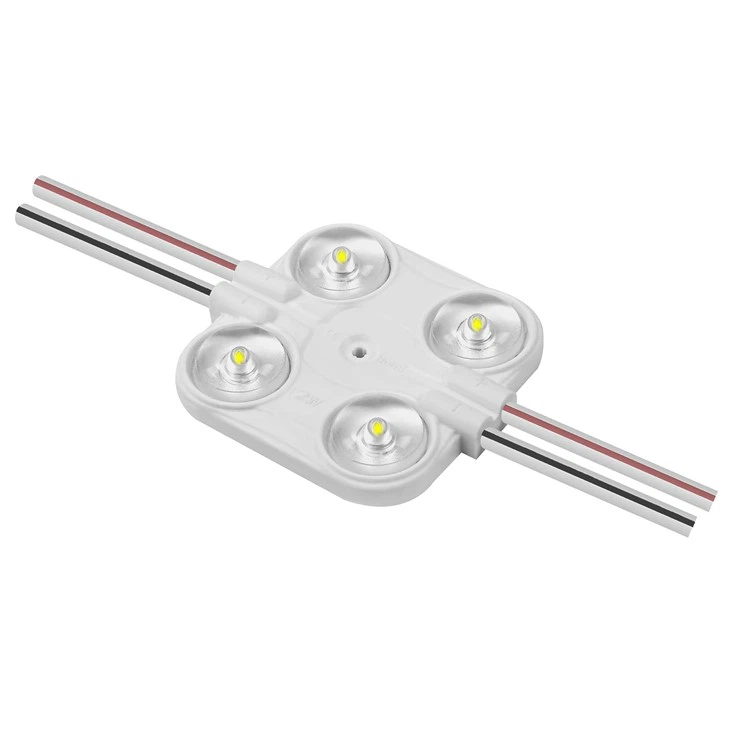

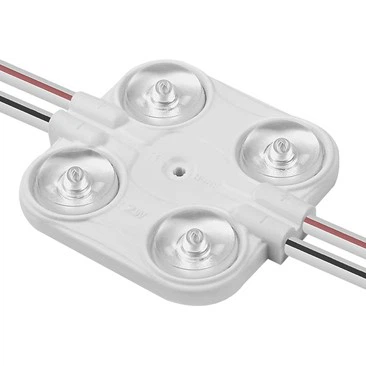

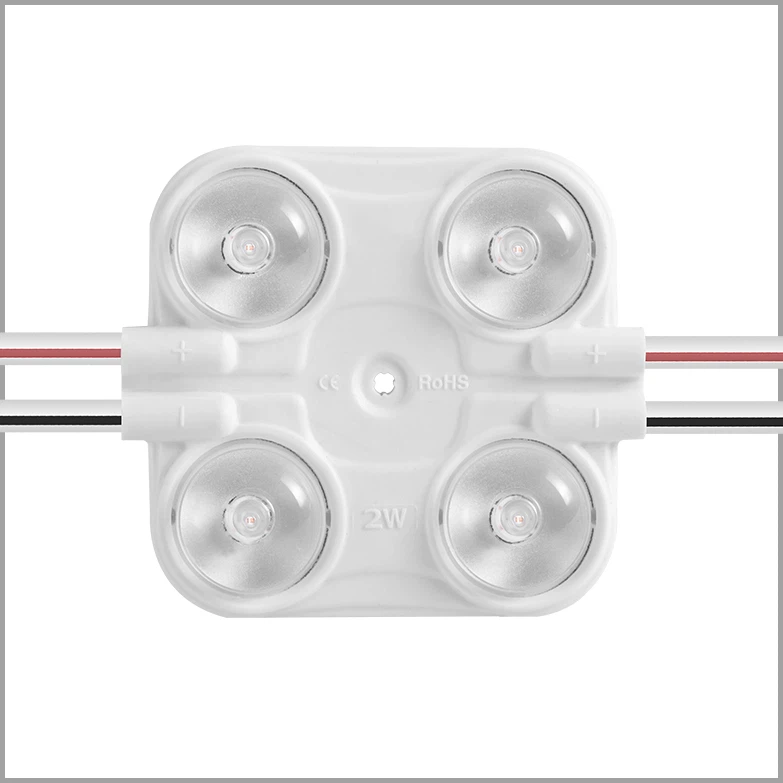

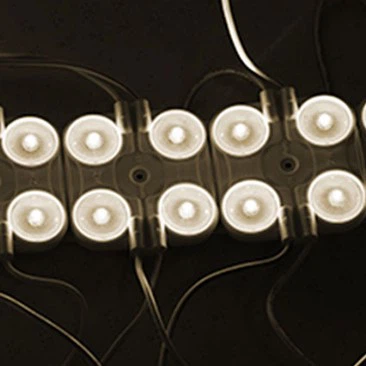

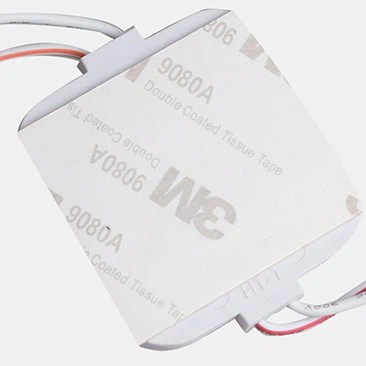

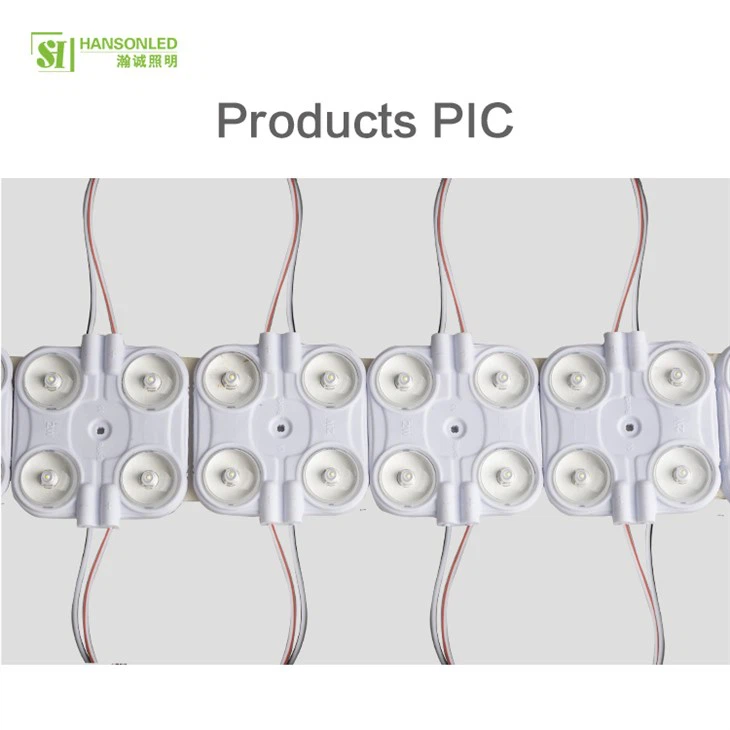

Product Pictures
Product Video
Product Parameters
Code | I64 |
Color | White |
Opration Voltage | DC24V |
Rated Current | 165mA |
Rated Power | 2W |
Beam Angle | 170° |
Luminous Flux | 190-200lm |

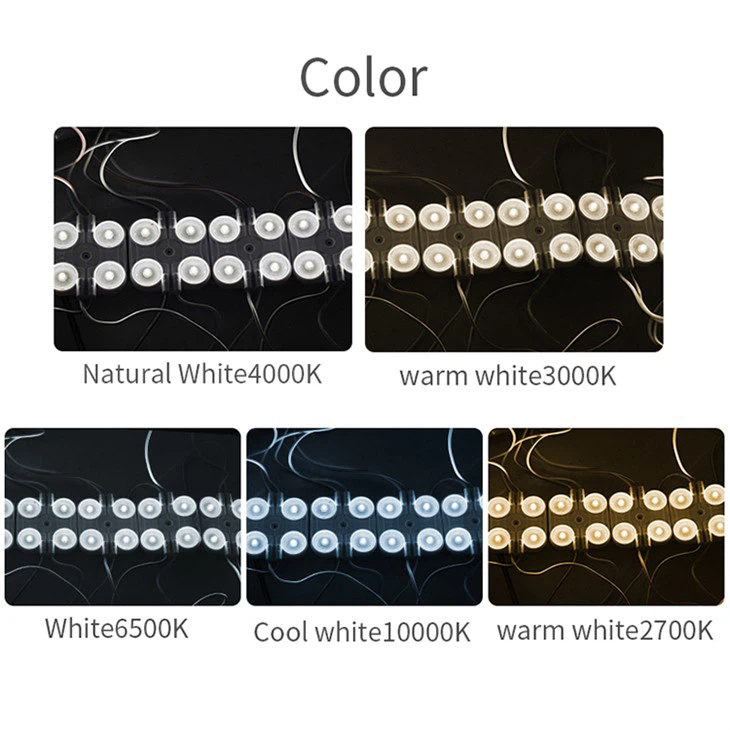

CCT | 2800-11000K |
Working Temp. | -40℃-60℃ |

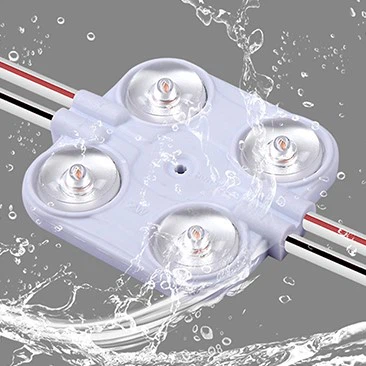

IP Rank | IP 65 |
Product Description
24V LED Square Module is a highly efficient and energy-saving lighting solution designed for various channel letter and light box backlighting applications. This module is equipped with several advanced features such as a 95% transmittance lens, wide view angle of 170°, constant current technology, and an exposed aluminum plate for heat dissipation.
The 95% transmittance lens is designed to allow for maximum light output by ensuring that more light passes through to the target area. This lens also helps to create a wide viewing angle of 170°, which means that the light can be seen from a wider range of angles and distances.

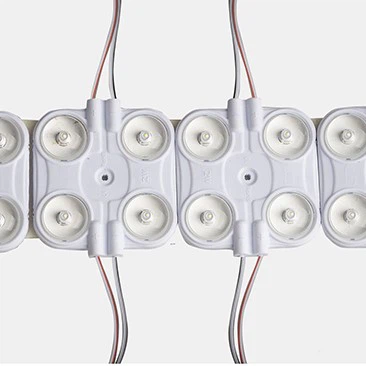

The constant current technology provides a stable and reliable power supply to the 24V LED Square Module, allowing it to operate at maximum efficiency and longevity. With 40 pieces per chain, this module can provide consistent and uniform lighting throughout the entire chain, ensuring that the target area is well-lit at all times.
The exposed aluminum plate is designed to provide maximum heat dissipation, which is important because LED modules generate a lot of heat when in operation. By dissipating the heat quickly, this module can operate at its maximum efficiency for longer periods of time without overheating or causing damage to the surrounding environment.
The injection molding process ensures that the 24V LED Square Module is manufactured to the highest standard of quality and consistency. This process creates modules that are highly durable, resistant to damage from weather and environmental conditions, and long-lasting.
In addition to being highly efficient, environmentally friendly, and energy-saving, this module is also equipped with a special optical lens that can reach a ratio of 1:2.5.

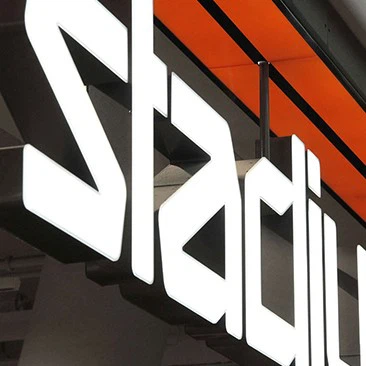

Product Applications
LED module usage scenarios
FAQ
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.
Q: What energy efficiency class does this product achieve, and what does it signify?
A: This product achieves an Energy Class rating of "C," which indicates its compliance with international energy efficiency standards. A Class "C" rating reflects a balance between performance and energy consumption, making it suitable for applications where both functionality and sustainability are priorities.
Q: What is the transmittance and viewing angle of the lens used in this product?
A: The lens utilized in this product boasts a high transmittance of 95%, ensuring optimal light transmission. Additionally, it features an expansive wide-angle view of 170°, providing enhanced visibility and coverage for various applications.
Q: What measures are taken to improve heat dissipation in the product design?
A: To address thermal management effectively, the product incorporates an exposed aluminum plate specifically designed for heat dissipation. Aluminum's excellent thermal conductivity ensures efficient cooling, preventing overheating and prolonging the lifespan of the components.
Company Certificate
ISO9001
PSE
FCC
CE
UL
Company Profile
HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise in Guangdongprovince, established in 2013 ,occupied area of 2,500 square meters factory.With senior engineers' professional expertise and continuing research, we have obtained national intellectuaproperty,The company has passed the "ISO 9001" international quality system certification" and CERoHS,PSE.UL,Reach certificate for dozens of our products. HansonLed owns the strongest R & D teamAccording to the customer's requirement. We customize the products or package for our clients
ISO 9001
2500㎡ Plant area
HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service First" for all our customersWith an entirely new brand image andcontinuing good customer service, we wilstrive to offer more excellent exclusiveproducts to support all our customers andwell-established distributors, makingHansonLed as the first-class brand in LEDsignage lighting industry.
Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hansonled has grown into themarket leader in LED products at signagearea. Meanwhile, we export our productsto North America South America.MiddleEast AND European countries, whichenjoys great popularity in their localmarkets.Hansonled has become aprecursor successfully enter into westemdevelopment counties in LED Signagelighting industry.
HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting product ranges coverLED Flexible Strips,LED Linear Strip.LEDModule, LED Rigid bar, LED Ambient Lighhundreds of varieties, widely applied inChannal Letter,Shops sign, Lighting box,housing and accommodation, publicfacilities
OUR FACTORY
Company Certificate
ISO9001
PSE
FCC
CE
UL
Company Profile
HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise in Guangdongprovince, established in 2013 ,occupied area of 2,500 square meters factory.With senior engineers' professional expertise and continuing research, we have obtained national intellectuaproperty,The company has passed the "ISO 9001" international quality system certification" and CERoHS,PSE.UL,Reach certificate for dozens of our products. HansonLed owns the strongest R & D teamAccording to the customer's requirement. We customize the products or package for our clients
![2025042109070118083[1].jpg](/uploads/allimg/20260125/1-26012516120RH.jpg)
ISO 9001
12 year Industry experience
2500㎡ Plant area
HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service First" for all our customersWith an entirely new brand image andcontinuing good customer service, we wilstrive to offer more excellent exclusiveproducts to support all our customers andwell-established distributors, makingHansonLed as the first-class brand in LEDsignage lighting industry.
Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hansonled has grown into themarket leader in LED products at signagearea. Meanwhile, we export our productsto North America South America.MiddleEast AND European countries, whichenjoys great popularity in their localmarkets.Hansonled has become aprecursor successfully enter into westemdevelopment counties in LED Signagelighting industry.
HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting product ranges coverLED Flexible Strips,LED Linear Strip.LEDModule, LED Rigid bar, LED Ambient Lighhundreds of varieties, widely applied inChannal Letter,Shops sign, Lighting box,housing and accommodation, publicfacilities
OUR FACTORY
Parameters: | |||||||||
Code | Color | Opration | Rated | Rated | Beam | Luminous Flux | CCT | Working Temp. | IP Rank |
I64 | White | DC24V | 165mA | 2W | 170° | 190-200lm | 2800-11000K | -40℃-60℃ | IP 65 |
