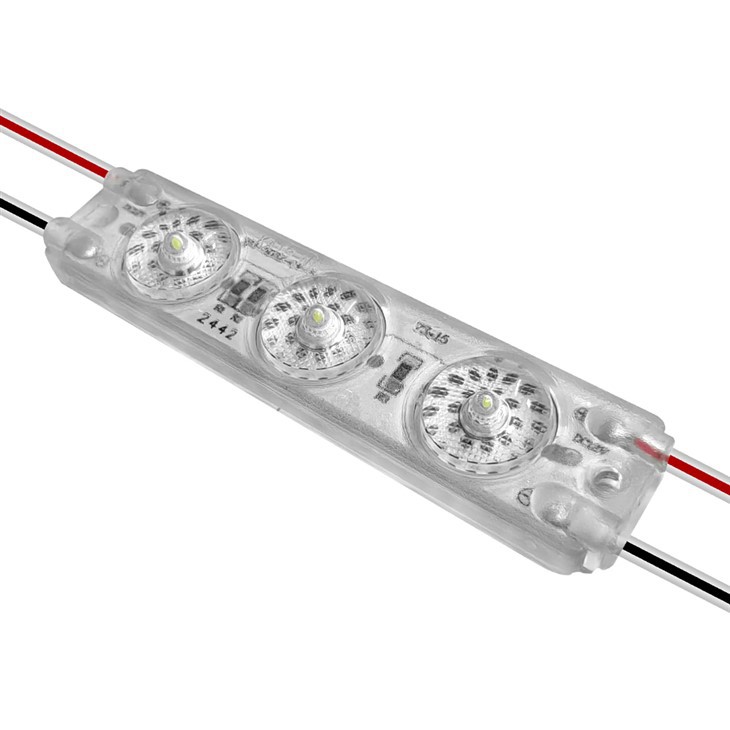

3 light Black Dot LED Module

Feature：

◆ Transprent housing design, better reflection in slim light box

◆ Special design with black dot,can work at 2.5cm depth letter and box

◆ 95% transmittance lens,Wide view angle 170°

◆ High Efficiency LED Module ,upto 170lm/w

◆ The exposed Aluminum plate for heat dissipation

◆ Energy Class reach to "C"

◆ Special Opitical Lens,can reach ratio 1:2.5

◆ Suitable for 8-20cm height channel letters and light boxes backlighting etc.

Description

Introducing our latest LED module, featuring a transparent housing design that allows for better reflection in slim lightboxes. The special design with black dots also allows the module to work at a depth of 2.5cm, making it suitable for a wide range of applications.

With a 95% transmittance lens and a wide view angle of 170 degrees, the module offers optimal lighting coverage. Thanks to its high efficiency, it can achieve up to 170lm/w, while the exposed aluminum plate aids in heat dissipation.

Black Dot LED Module also boasts an energy class rating of "C", making it a highly eco-friendly option. With a special optical lens, it can even reach a ratio of 1:2.5, further enhancing its performance.

Suitable for channel letters and light boxes between 8-20cm in height, our Black Dot LED Module provides superior backlighting for a variety of applications. Whether you need lighting for your signage, advertising displays, or other applications

FAQ

1. What is the housing design of the slim light box?

The slim light box features a transparent housing design that provides better reflection and illumination.

2. What is the special design with black dot?

The slim light box has a special design with black dot that allows it to work at a depth of 2.5cm in both letter and box.

3. What is the transmittance lens of the slim light box?

The slim light box has a 95% transmittance lens that offers a wide view angle of 170 degrees.

4. What is the LED Module efficiency of the slim light box?

The slim light box is equipped with a high-efficiency LED Module that provides up to 170lm/w.

5. What is the Aluminum plate exposed for in the slim light box?

The exposed Aluminum plate in the slim light box is meant for heat dissipation.

6. What is the energy class reached by the slim light box?

The energy class reached by the slim light box is "C".

7. What is the optical lens of the slim light box capable of?

The slim light box has a special optical lens that can reach a ratio of 1:2.5.

8. What is the suitable height range for channel letters and light boxes when using the slim light box?

The slim light box is suitable for channel letters and light boxes ranging from 8-20cm in height.

9. What is the primary application of the slim light box?

The slim light box is primarily designed for illuminating and backlighting channel letters, light boxes, and similar signage.

10. What are the advantages of using the slim light box?

The slim light box offers a high level of efficiency and illumination, is easy to install, provides a wide viewing angle, and has a slim design that lends itself to a variety of signage applications.

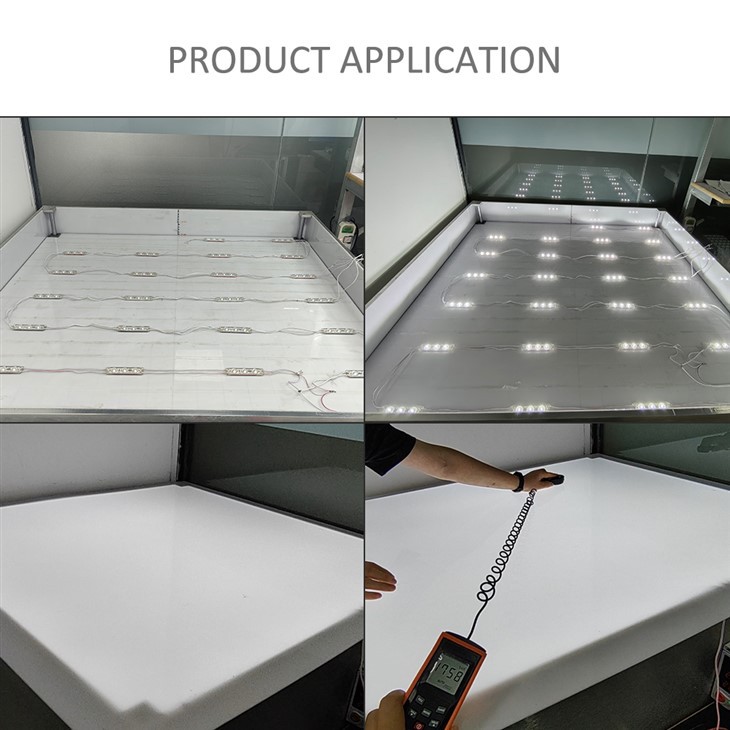

LED module usage scenarios
