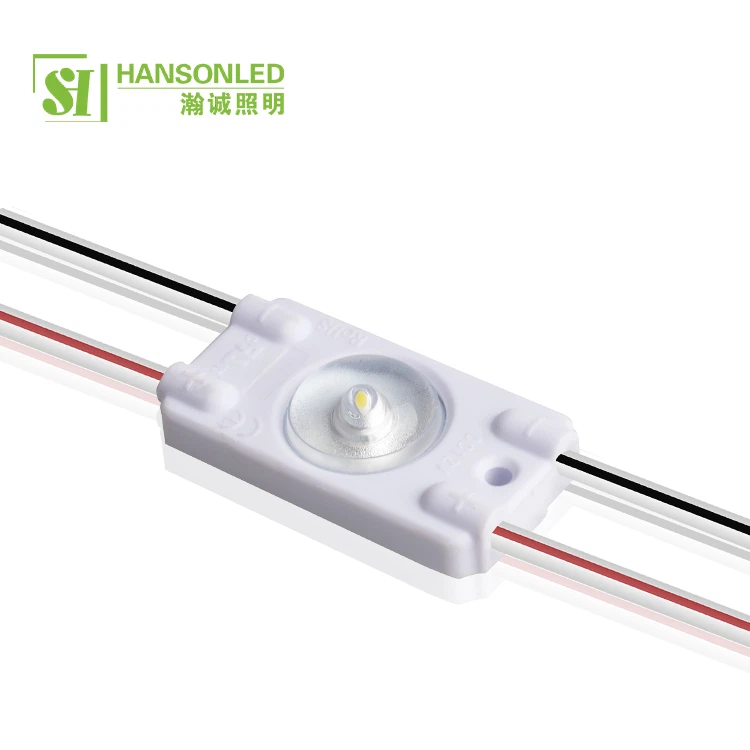

High luminous efficiency LED module
Features：

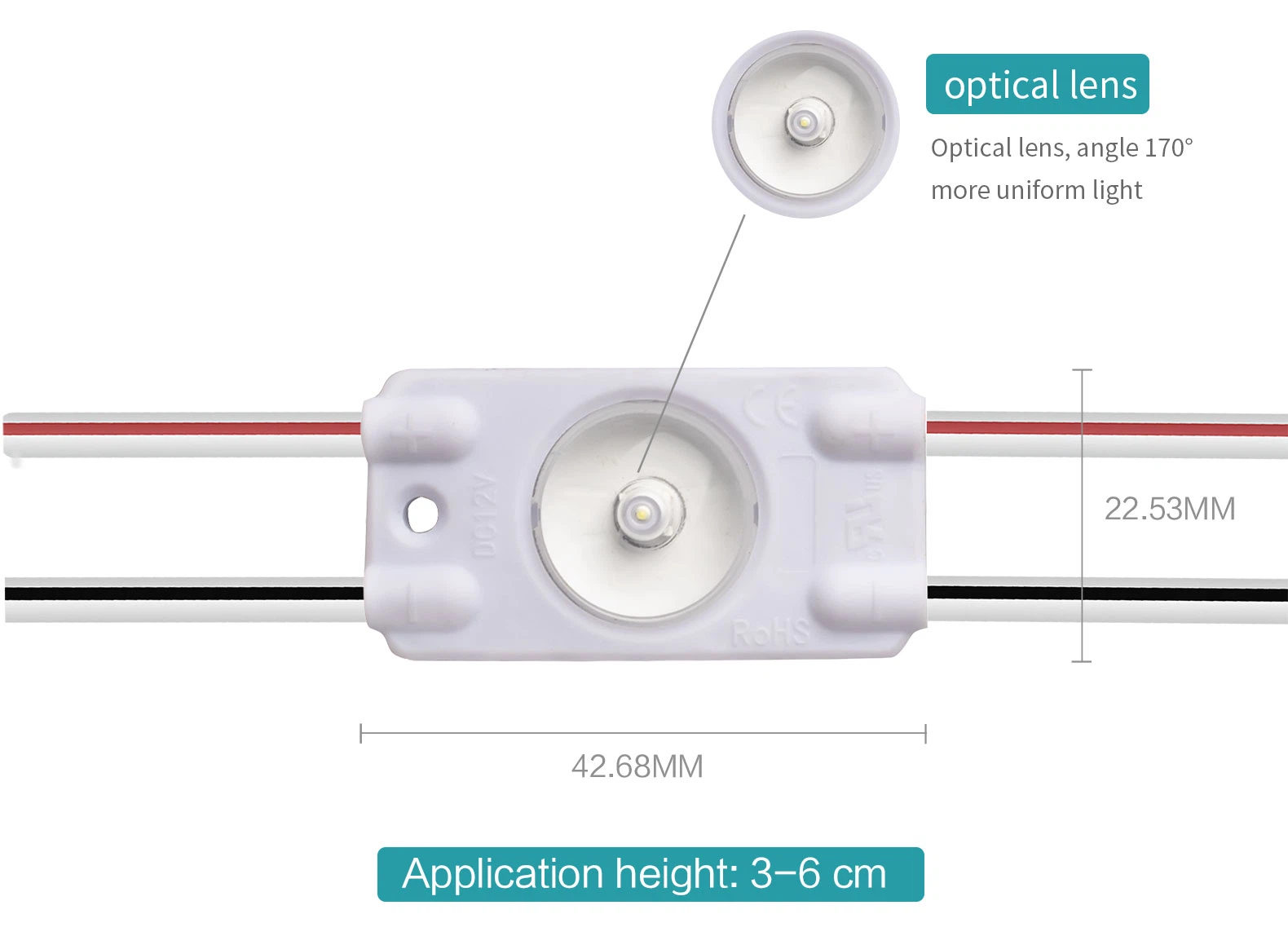

◆ 90% transmittance lens,Wide view angle 170°
◆ High efficiency module,upto 170lm/w
◆ Constant Voltage Technology ,20 pcs per series
◆ 170degree view angle,with less qty in square meter
◆ Injection molding process,Waterproof:IP 65
◆ Energy Class reach to "C"
◆ Long life span
◆ Suitable for 3-8 cm height channel letters and light boxes backlighting etc.
Description
Technical Parameters
Features：
◆ 90% transmittance lens,Wide view angle 170°
◆ High efficiency module,upto 170lm/w
◆ Constant Voltage Technology ,20 pcs per series
◆ 170degree view angle,with less qty in square meter
◆ Injection molding process,Waterproof:IP 65
◆ Energy Class reach to "C"
◆ Long life span
◆ Suitable for 3-8 cm height channel letters and light boxes backlighting etc.
Our High luminous efficiency LED modules offer a number of benefits that make them an ideal choice for a wide range of applications. Firstly, our modules feature a highly advanced lens that offers a 90% transmittance rate and a wide view angle of up to 170°. This allows for a better spread of light and improved visibility from all angles.
Our LED modules are highly efficient and capable of producing up to 170lm/w. This high efficiency is made possible by our use of Constant Voltage Technology and a series of 20pcs per series. This ensures a more stable and consistent level of brightness, regardless of the size or complexity of the application.
Another key advantage of our LED modules is their 170-degree view angle, which allows for a greater degree of illumination with fewer units required per square meter. This means that our modules can provide a higher level of light coverage with superior precision and clarity.
Our LED modules undergo an injection molding process, which helps to increase durability and water resistance. This ensures that they are fully waterproof with an IP 65 rating, making them ideal for use in outdoor applications where exposure to the elements is a concern.
Our LED modules also boast a high energy efficiency rating, achieving an Energy Class of "C". This makes them highly eco-friendly and a great choice for anyone looking to reduce their carbon footprint while still enjoying the benefits of high-quality lighting.
Our LED modules are designed to offer a long lifespan, ensuring that they provide reliable performance for years to come. They are especially well-suited to applications such as 3-8 cm height channel letters and light boxes backlighting, where a combination of precision and lighting power is required.
Product Parameters
Code | I56 |
Color | White |
Opration Voltage | DC12V |
Rated Current | 30mA |
Rated Power | 0.36W |
Beam Angle | 170° |
Luminous Flux | 60-65lm |

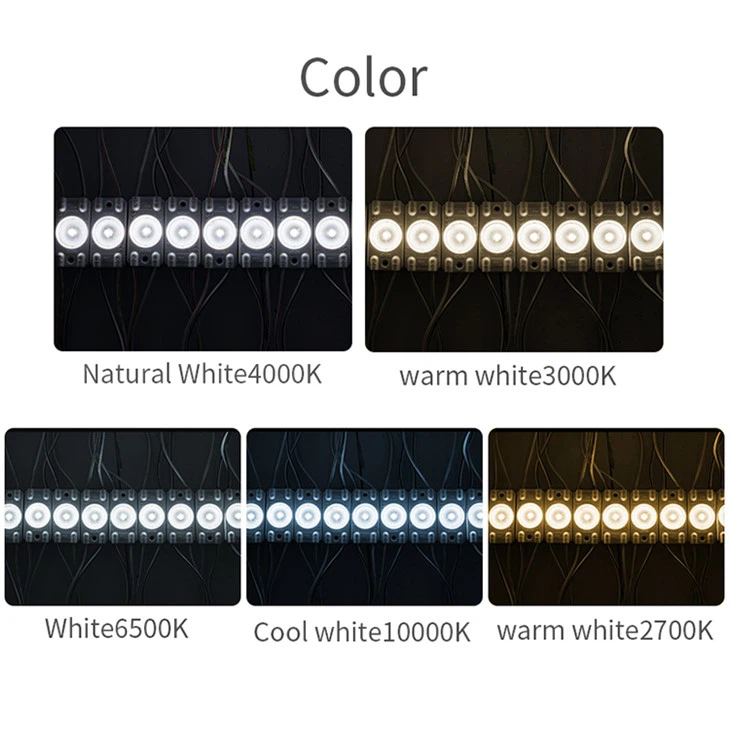

CCT | 2800-11000K |
Working Temp. | -40℃-60℃ |
IP Rank | IP 65 |
Product Applications
LED module usage scenarios
Company Certificate
ISO9001
PSE
FCC
CE
UL
Company Profile
HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise in Guangdongprovince, established in 2013 ,occupied area of 2,500 square meters factory.With senior engineers' professional expertise and continuing research, we have obtained national intellectuaproperty,The company has passed the "ISO 9001" international quality system certification" and CERoHS,PSE.UL,Reach certificate for dozens of our products. HansonLed owns the strongest R & D teamAccording to the customer's requirement. We customize the products or package for our clients
ISO 9001
2500㎡ Plant area
HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service First" for all our customersWith an entirely new brand image andcontinuing good customer service, we wilstrive to offer more excellent exclusiveproducts to support all our customers andwell-established distributors, makingHansonLed as the first-class brand in LEDsignage lighting industry.
Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hansonled has grown into themarket leader in LED products at signagearea. Meanwhile, we export our productsto North America South America.MiddleEast AND European countries, whichenjoys great popularity in their localmarkets.Hansonled has become aprecursor successfully enter into westemdevelopment counties in LED Signagelighting industry.
HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting product ranges coverLED Flexible Strips,LED Linear Strip.LEDModule, LED Rigid bar, LED Ambient Lighhundreds of varieties, widely applied inChannal Letter,Shops sign, Lighting box,housing and accommodation, publicfacilities
OUR FACTORY
Company Certificate
ISO9001
PSE
FCC
CE
UL
Company Profile
HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise in Guangdongprovince, established in 2013 ,occupied area of 2,500 square meters factory.With senior engineers' professional expertise and continuing research, we have obtained national intellectuaproperty,The company has passed the "ISO 9001" international quality system certification" and CERoHS,PSE.UL,Reach certificate for dozens of our products. HansonLed owns the strongest R & D teamAccording to the customer's requirement. We customize the products or package for our clients
![2025042109070118083[1].jpg](/uploads/allimg/20260125/1-26012516120RH.jpg)
ISO 9001
12 year Industry experience
2500㎡ Plant area
HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service First" for all our customersWith an entirely new brand image andcontinuing good customer service, we wilstrive to offer more excellent exclusiveproducts to support all our customers andwell-established distributors, makingHansonLed as the first-class brand in LEDsignage lighting industry.
Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hansonled has grown into themarket leader in LED products at signagearea. Meanwhile, we export our productsto North America South America.MiddleEast AND European countries, whichenjoys great popularity in their localmarkets.Hansonled has become aprecursor successfully enter into westemdevelopment counties in LED Signagelighting industry.
HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting product ranges coverLED Flexible Strips,LED Linear Strip.LEDModule, LED Rigid bar, LED Ambient Lighhundreds of varieties, widely applied inChannal Letter,Shops sign, Lighting box,housing and accommodation, publicfacilities
OUR FACTORY
Rules of Naming Products: | |||||||||
Code | Color | Opration Voltage | Rated Current | Rated Power | Beam Angle | Luminous Flux | efficiency | CCT | IP Rank |
I56 | White | DC12V | 30mA | 0.36W | 170° | 60-65lm | 170LM/W | 2800-10000K | IP 65 |
