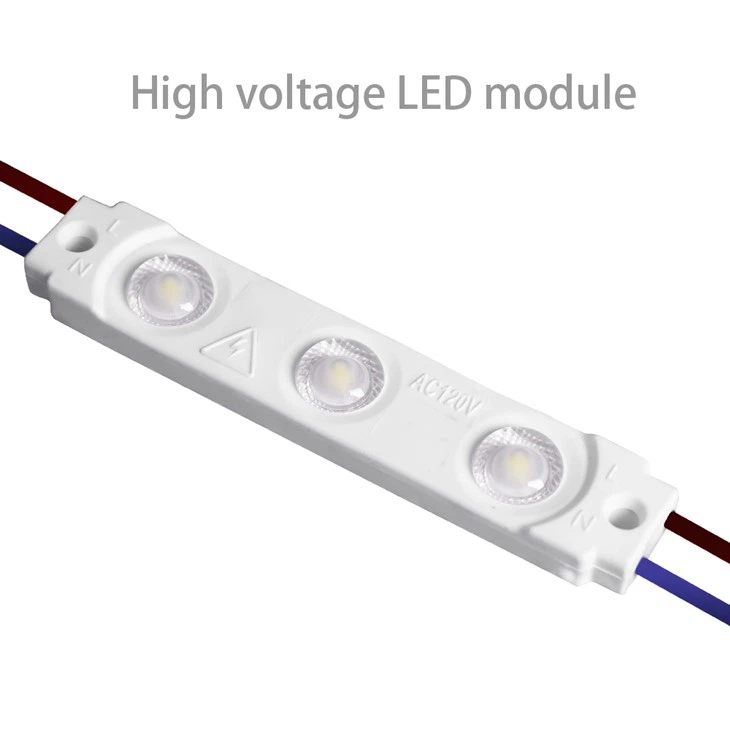

120V Led Module

Features

◆ AC120V directly Input, no need adaptor

◆ Constant Voltage Technology (CCT),50 pcs per series

◆ Each one pcs can cut,more easy to install

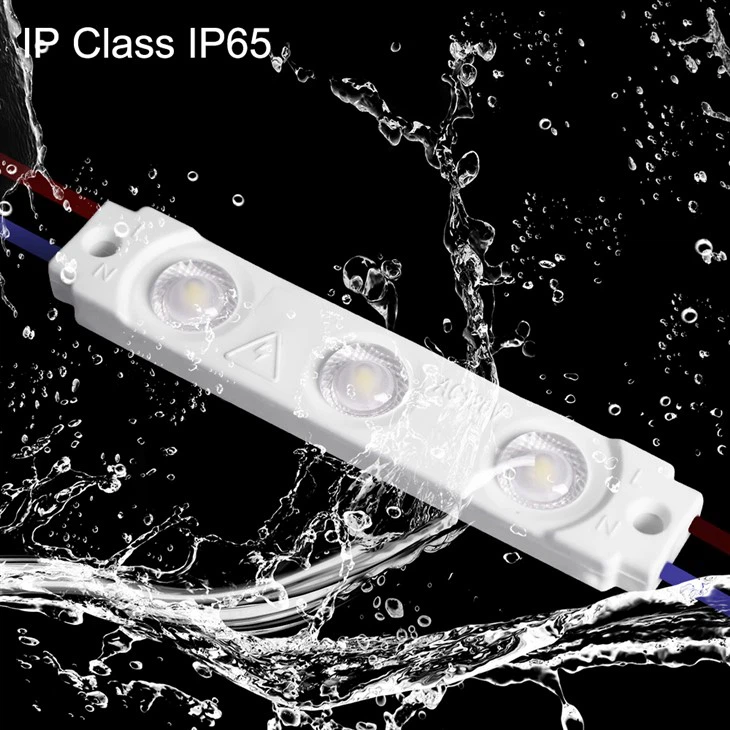

◆ Injection molding process,Waterproof:IP 65

◆ Use Alu PCB, better heat dissipate, Longer life span

◆ Suitable for 6-15cm height channel letters and light boxes backlighting etc.

Description

Introducing our 120V LED Module, designed to provide a superior lighting solution for various applications. With its innovative features and advanced technology, this LED module offers unparalleled performance, reliability, and functionality.

One of the most remarkable features of this LED module is its direct AC120V input, which eliminates the need for an adaptor, thereby simplifying the installation process. This feature makes it a cost-effective solution, as well as more convenient for those who want to save time during installation.

In addition, the LED module utilizes Constant Voltage Technology (CCT) and allows the connection of 50 pieces in series, providing a stable and consistent output voltage to maintain optimum performance. This feature enhances efficiency and contributes to longer life-span of the product.

Another unique feature of our LED module is its easy-to-install design. Each piece can be cut, allowing for greater flexibility in the installation process. The injection molding process used in its manufacture ensures that the product is waterproof (IP65), which means it can be used in outdoor applications.

This LED module also uses an Alu PCB, which enhances heat dissipation, thus promoting longer product life. This feature allows it to be suitable for use in 6-15cm height channel letters and light boxes backlighting, among other applications, as it can withstand heat better, and maintain optimal performance even when used for long periods.

FAQ

1. What is the input voltage for this LED strip light?

Answer: The input voltage is AC120V directly, and there is no need for an adaptor.

2. What is Constant Voltage Technology (CCT)?

Answer: CCT stands for Constant Voltage Technology, which means that the light output is maintained at a consistent voltage even when the input voltage fluctuates.

3. How many LEDs are in one series?

Answer: There are 50 pcs per series.

4. Can I cut each piece of the LED strip light?

Answer: Yes, you can cut each piece of the LED strip light individually. This makes it easier to install and customize for your specific lighting needs.

5. Is this LED strip light waterproof?

Answer: Yes, the LED strip light is waterproof with a waterproof rating of IP 65. It is made with an injection molding process for added durability.

6. What material is used for the PCB?

Answer: The PCB is made with aluminum, which helps with heat dissipation and ensures a longer lifespan for the LED strip light.

7. What types of applications is this LED strip light suitable for?

Answer: This LED strip light is ideal for backlighting channel letters and light boxes ranging from 6-15cm in height.
