AC220V LED Module
Feature：
◆Direct AC220V input; no need for an adapter
◆50 pieces per series using Constant Current Technology (CCT)
◆Every piece can be sliced, making installation simpler.
◆Seal Glue Method ◌ IP 67 Waterproof
◆Ideal for light boxes with backlighting and channel letters with a height of 8 to 12 cm, etc.
Description
Technical Parameters
Feature：
◆ Direct AC220V input; no need for an adapter
◆50 pieces per series using Constant Current Technology (CCT)
◆Every piece can be sliced, making installation simpler.
◆ Seal Glue Method ◌ IP 67 Waterproof
◆ Ideal for light boxes with backlighting and channel letters with a height of 8 to 12 cm, etc.
![20231122110657b21401cac6d743629d93bae7881a442d[1].jpg](/uploads/allimg/20260124/1-260124212RM50.jpg)
![202311221107292e4cfdde2c0c499cb763ab3b0d5e0b76[1].jpg](/uploads/allimg/20260124/1-260124212T15a.jpg)
Description

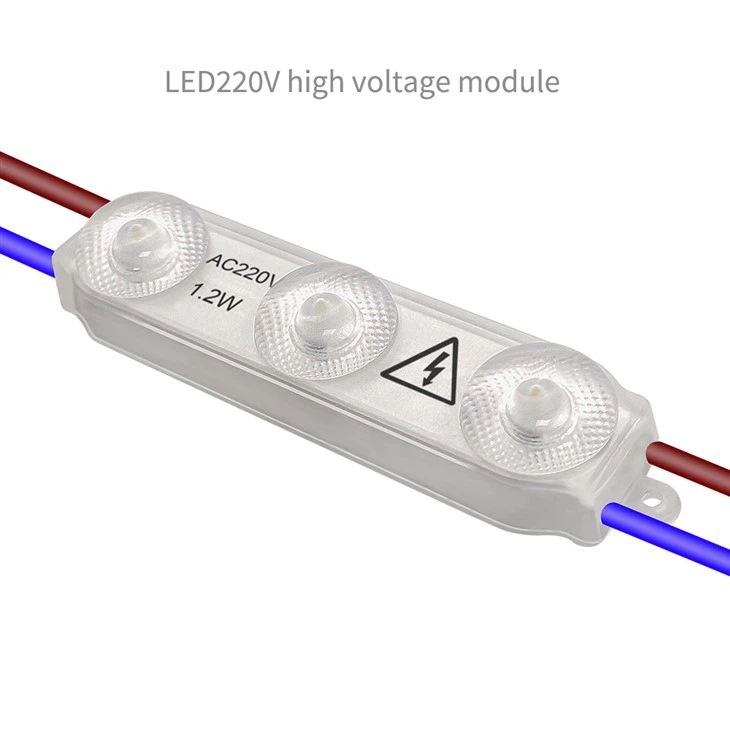

AC220V LED Module is a revolutionary lighting solution that comes with direct AC220V input, eliminating the need for an adapter, which makes it highly convenient to use. With 50 pieces per series, this LED module uses Constant Current Technology (CCT) to ensure uniform brightness across all pieces. Additionally, every piece can be sliced, making the installation process much simpler.

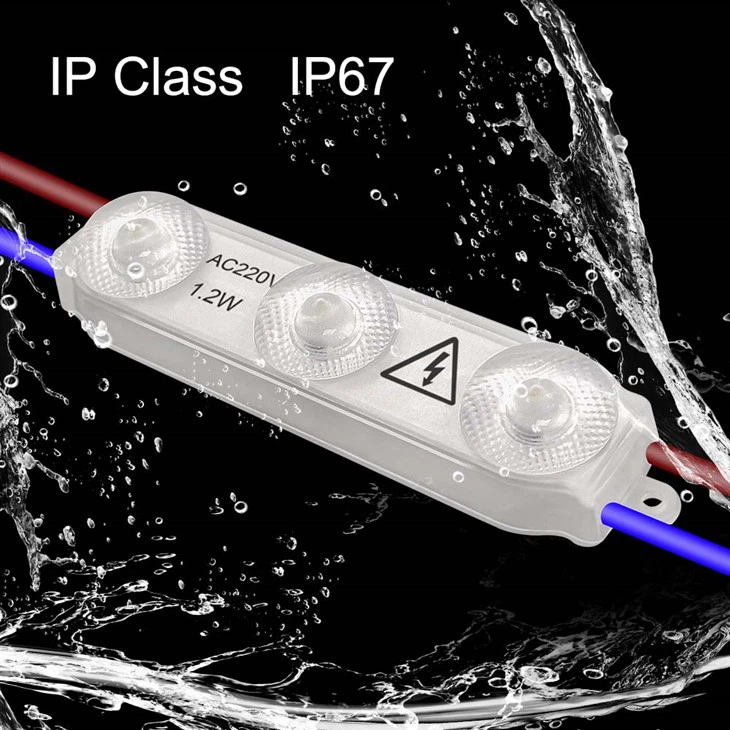

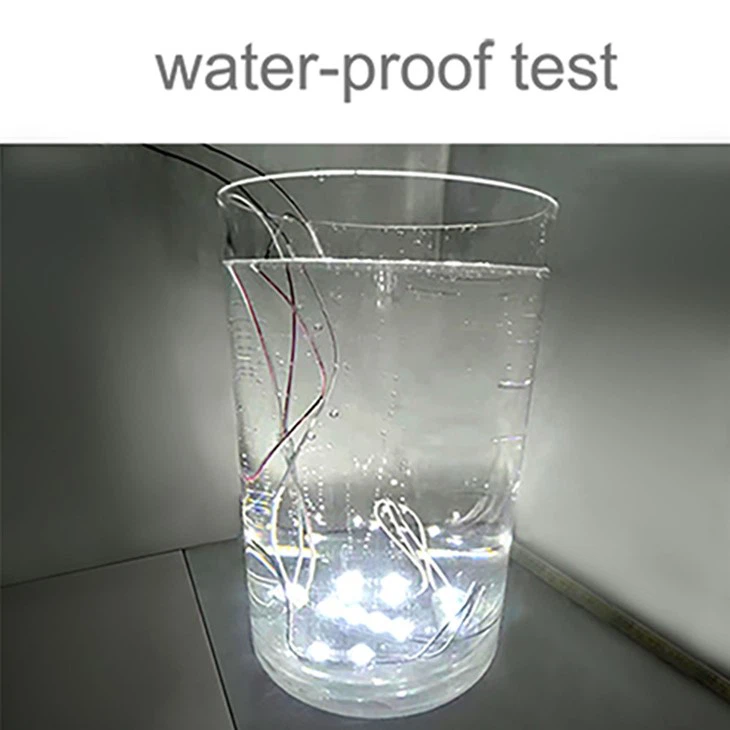

This LED module uses Seal Glue Method, makes it waterproof with an IP 67 rating, making it ideal for outdoor applications. Whether it is light boxes with backlighting or channel letters that have a height of 8 to 12 cm, AC220V LED Module is an excellent choice for all such applications.
The AC220V LED Module is designed keeping in mind the requirement of a cost-effective and energy-efficient lighting solution. These modules consume less energy and produce less heat, thus making them highly energy efficient and long-lasting.
AC220V LED Module is ideal for architectural lighting, outdoor advertising and light boxes, and commercial lighting applications. With its stunning design and innovative features, it offers versatility and flexibility, making it an excellent choice for all your lighting requirements.
Product Parameters
Code | I143-HV-220V |
Color | WW/W/CW |
Opration Voltage | AC220V |
| PCS/china | 50pcs |
Rated Power | 1.2W |
Beam Angle | 170° |
Luminous Flux | 120-130Lm |
CCT | 2800-15000K |
Working Temp. | -40℃-60℃ |
IP Rank | IP 67 |
Product Applications
LED module usage scenarios
Company Certificate
ISO9001
PSE
FCC
CE
UL
Company Profile
HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise in Guangdongprovince, established in 2013 ,occupied area of 2,500 square meters factory.With senior engineers' professional expertise and continuing research, we have obtained national intellectuaproperty,The company has passed the "ISO 9001" international quality system certification" and CERoHS,PSE.UL,Reach certificate for dozens of our products. HansonLed owns the strongest R & D teamAccording to the customer's requirement. We customize the products or package for our clients
ISO 9001
2500㎡ Plant area
HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service First" for all our customersWith an entirely new brand image andcontinuing good customer service, we wilstrive to offer more excellent exclusiveproducts to support all our customers andwell-established distributors, makingHansonLed as the first-class brand in LEDsignage lighting industry.
Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hansonled has grown into themarket leader in LED products at signagearea. Meanwhile, we export our productsto North America South America.MiddleEast AND European countries, whichenjoys great popularity in their localmarkets.Hansonled has become aprecursor successfully enter into westemdevelopment counties in LED Signagelighting industry.
HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting product ranges coverLED Flexible Strips,LED Linear Strip.LEDModule, LED Rigid bar, LED Ambient Lighhundreds of varieties, widely applied inChannal Letter,Shops sign, Lighting box,housing and accommodation, publicfacilities
OUR FACTORY
Company Certificate
ISO9001
PSE
FCC
CE
UL
Company Profile
HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise in Guangdongprovince, established in 2013 ,occupied area of 2,500 square meters factory.With senior engineers' professional expertise and continuing research, we have obtained national intellectuaproperty,The company has passed the "ISO 9001" international quality system certification" and CERoHS,PSE.UL,Reach certificate for dozens of our products. HansonLed owns the strongest R & D teamAccording to the customer's requirement. We customize the products or package for our clients
![2025042109070118083[1].jpg](/uploads/allimg/20260125/1-26012516120RH.jpg)
ISO 9001
12 year Industry experience
2500㎡ Plant area
HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service First" for all our customersWith an entirely new brand image andcontinuing good customer service, we wilstrive to offer more excellent exclusiveproducts to support all our customers andwell-established distributors, makingHansonLed as the first-class brand in LEDsignage lighting industry.
Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hansonled has grown into themarket leader in LED products at signagearea. Meanwhile, we export our productsto North America South America.MiddleEast AND European countries, whichenjoys great popularity in their localmarkets.Hansonled has become aprecursor successfully enter into westemdevelopment counties in LED Signagelighting industry.
HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting product ranges coverLED Flexible Strips,LED Linear Strip.LEDModule, LED Rigid bar, LED Ambient Lighhundreds of varieties, widely applied inChannal Letter,Shops sign, Lighting box,housing and accommodation, publicfacilities
OUR FACTORY
Item No. | I143-HV-220V |
Input Voltage | AC220V |
Power | 1.2w |
Luminous Flux | 120-130Lm |
CCT | 2800-15000K |
Lighting angle | 170° |
PCS/china | 50pcs |
Color | WW/W/CW |
Waterproof class | IP67 |

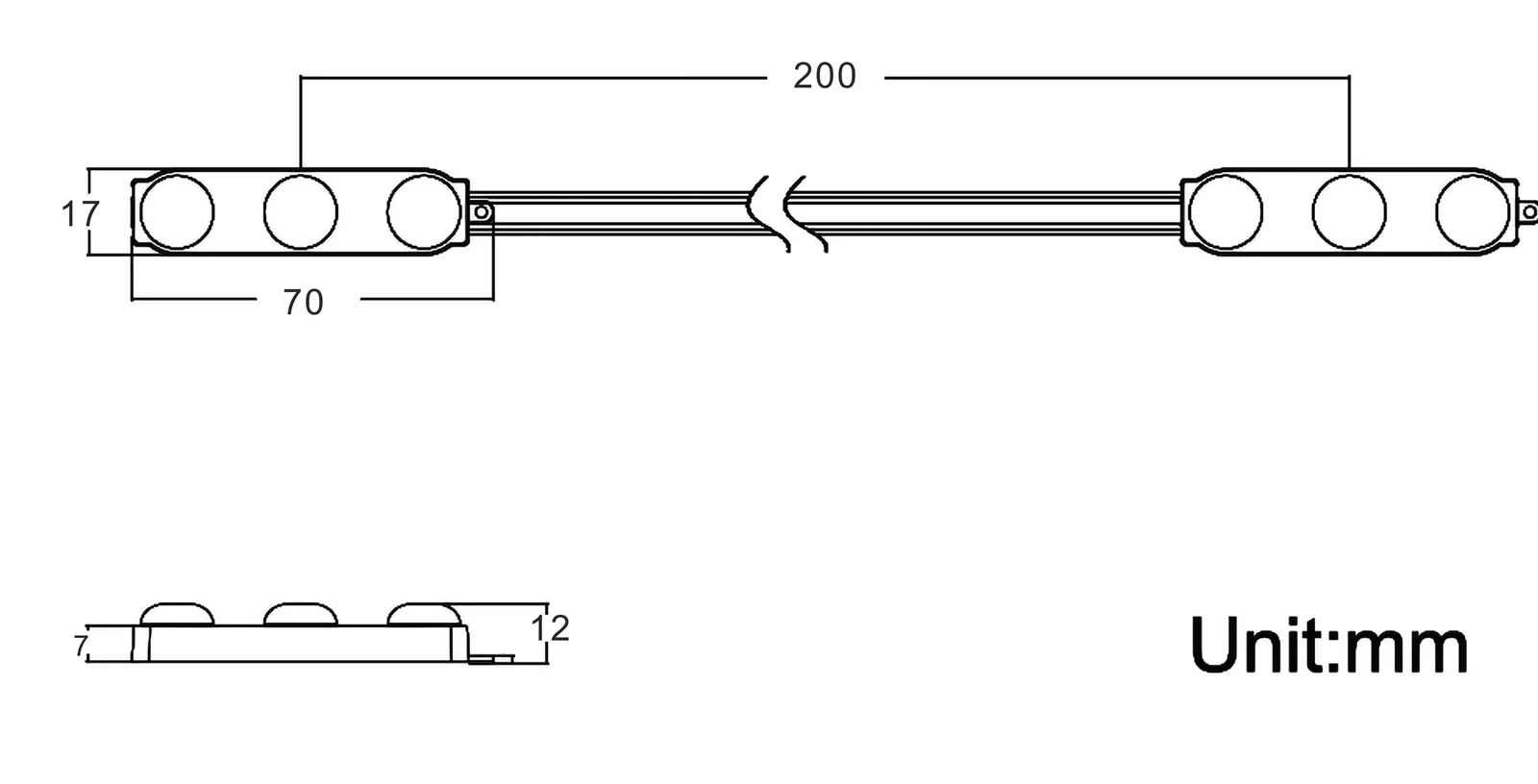

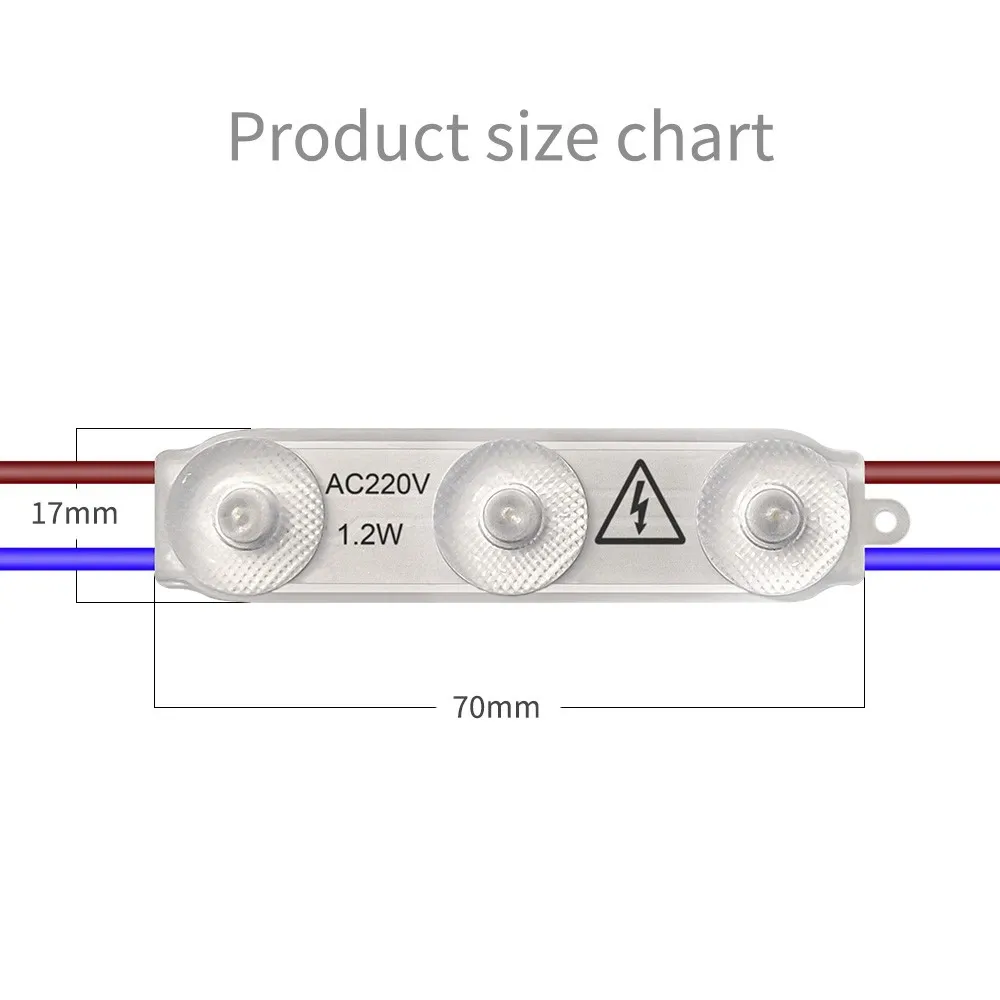

Size | 70*17*12mm |
