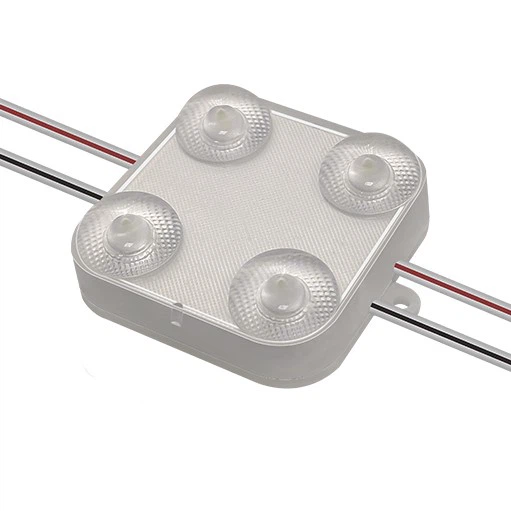

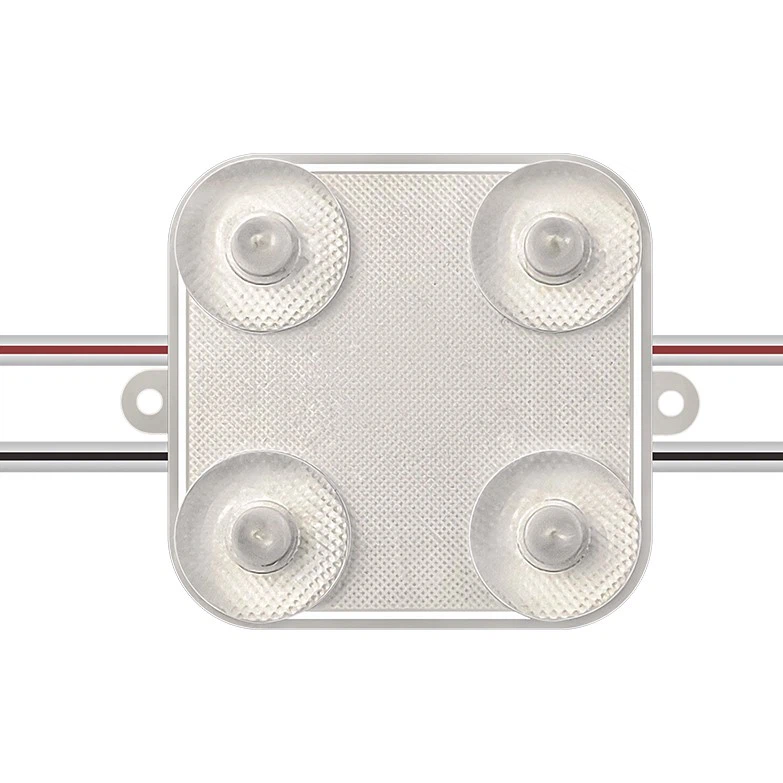

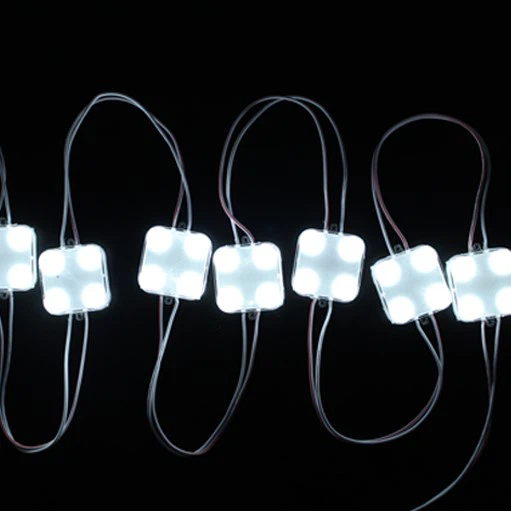

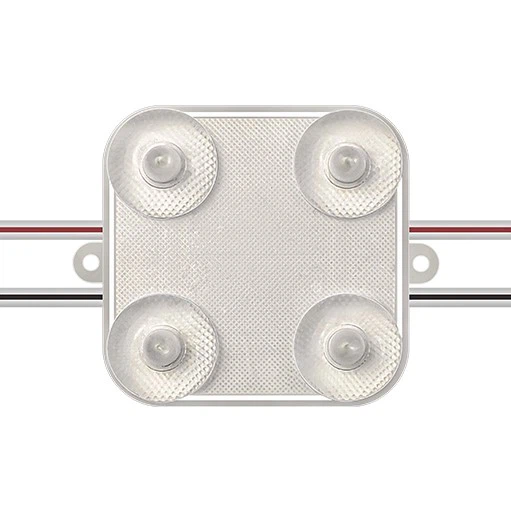

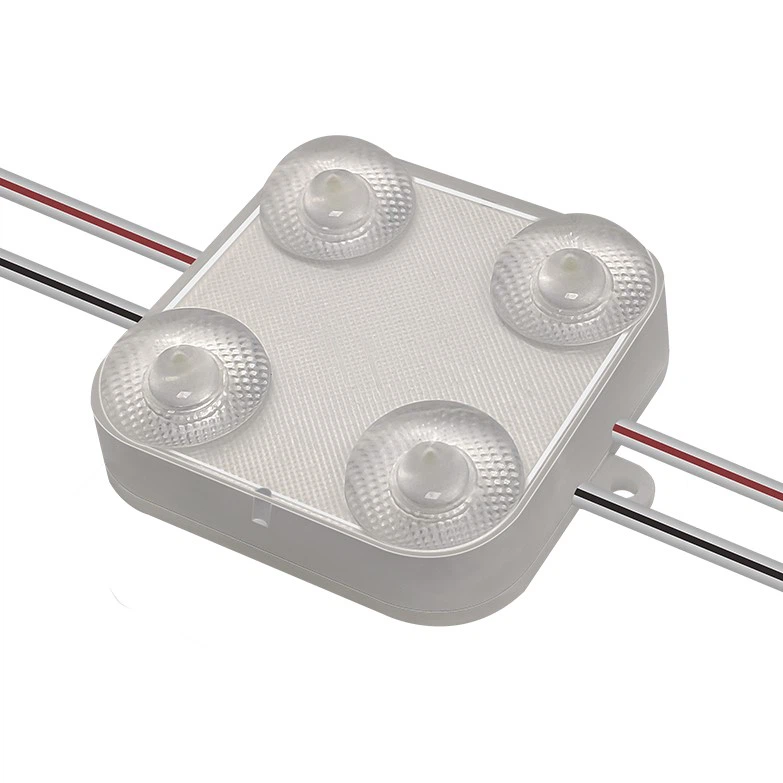

Square Led Module
Feature：
◆ 95% transmittance lens,Wide view angle 170°
◆ Constant Voltage Technology ，20 pcs per series

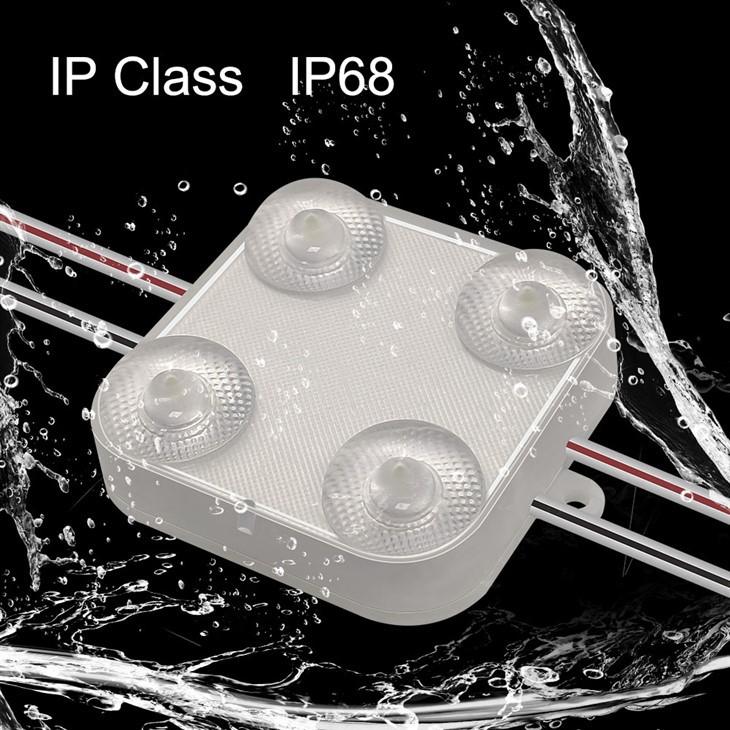

◆ IP68 Waterproof Class,Can work outdoor directly
◆ Seal Glue Process
◆ Special Opitical Lens,can reach ratio 1:2.5
◆ Suitable for 10-25cm height channel letters and light boxes backlighting etc.
Description
Technical Parameters
Square Led Module
Product Feature

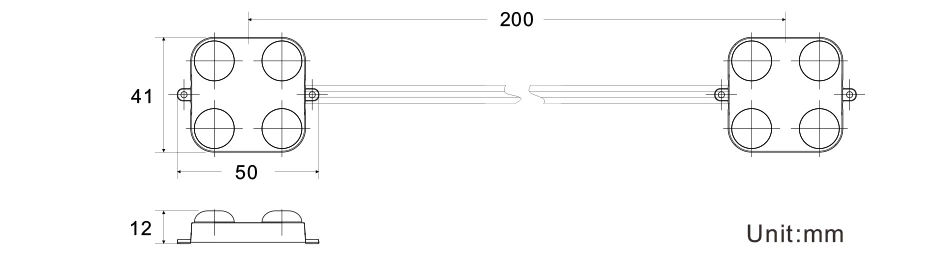

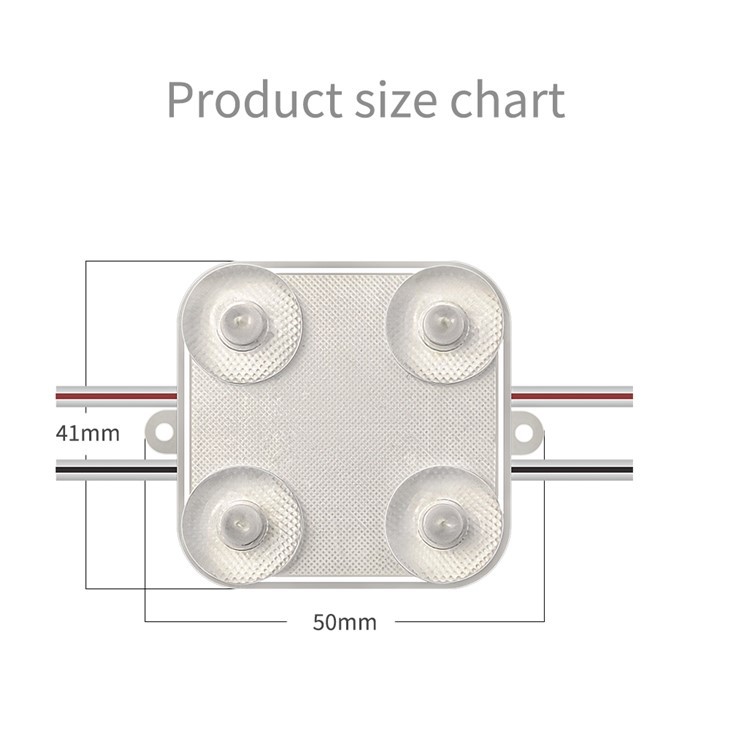

Product size

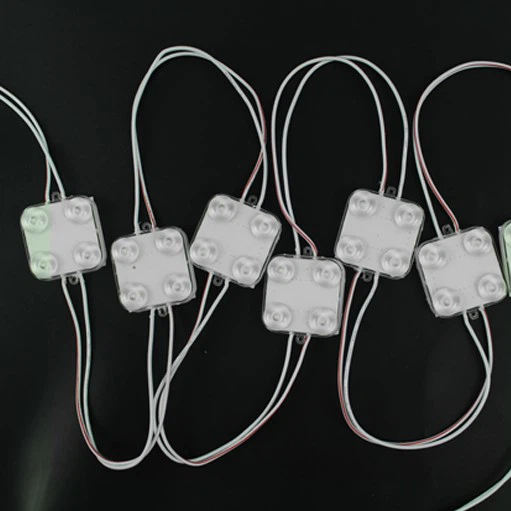

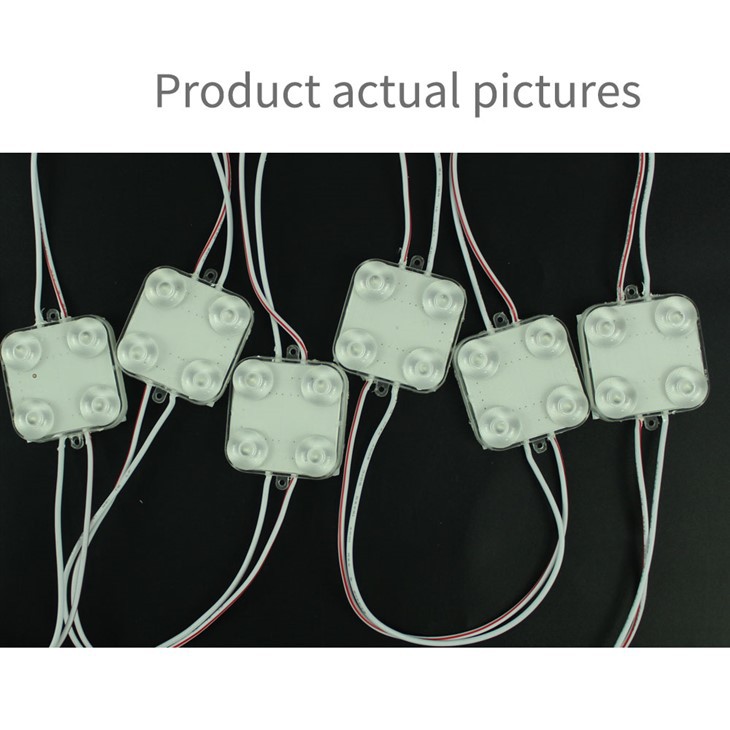

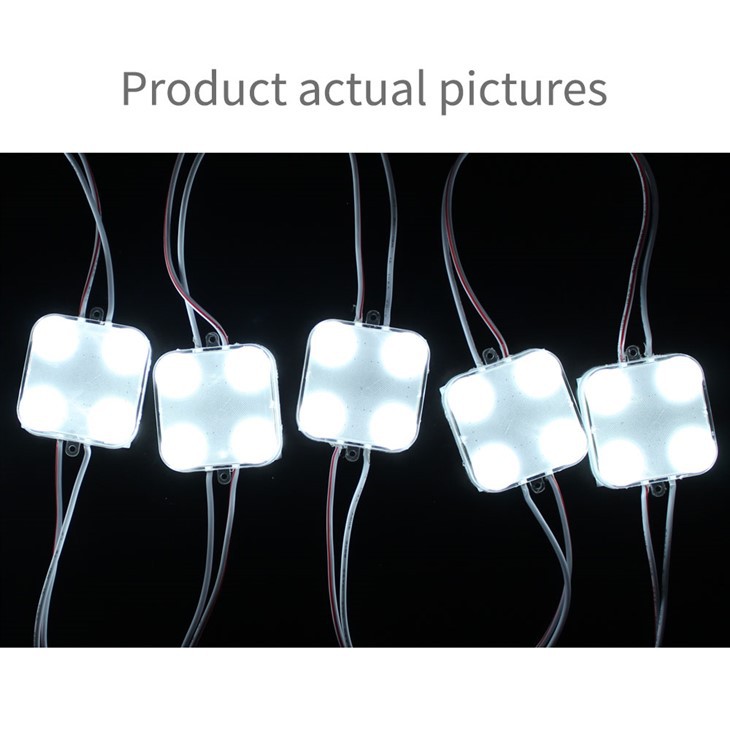

Product Pictures
Product Video
Product Parameters
Code | I144 |

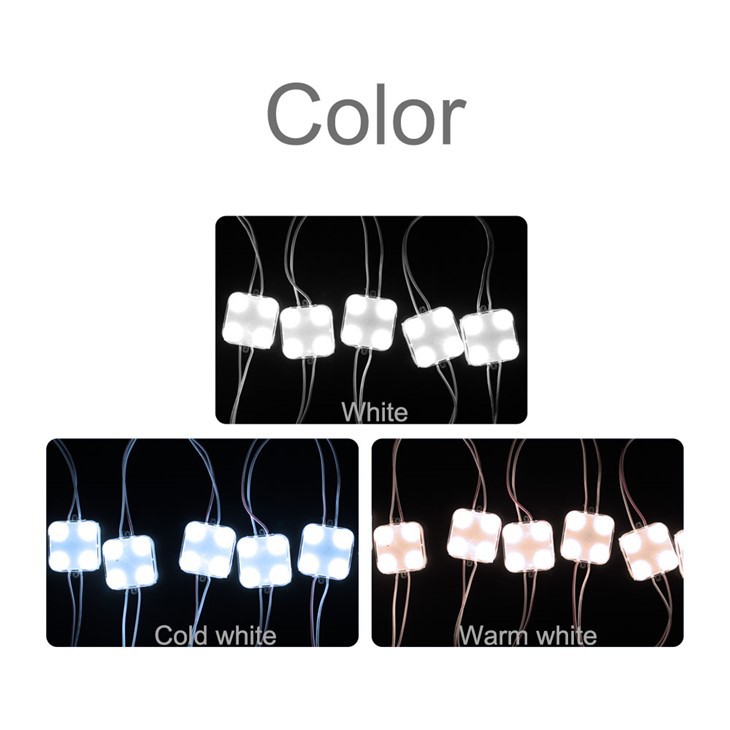

Color | White |
Opration Voltage | DC12V |
Rated Current | 120mA |
Rated Power | 1.44W |
Beam Angle | 170° |
Luminous Flux | 240-250lm |
CCT | 2800-11000K |
Working Temp. | -40℃-60℃ |
IP Rank | IP 68 |
Product Description
When it comes to channel letters and light boxes backlighting, the choice of LED modules plays a crucial role. Square LED modules, with their advanced features and design, are quickly becoming the go-to choice for this type of application. In this article, we will give you a comprehensive description of the key features of the square LED module, including its specifications, performance, and other important attributes.
One of the most important features of the square LED module is its 95% transmittance lens. This high efficiency lens ensures that the light output is maximized while minimizing any loss of light. With this high level of performance, the square LED module can easily achieve bright and uniform lighting for any application.
The constant current technology provides a stable and reliable power supply to the Square Led Module, allowing it to operate at maximum efficiency and longevity. With 40 pieces per chain, this module can provide consistent and uniform lighting throughout the entire chain, ensuring that the target area is well-lit at all times.
The square LED module uses cutting-edge constant voltage technology that ensures a consistent output of light regardless of the voltage changes. By using this technology, the module is able to maintain its efficiency and brightness even with varying voltage levels.
The seal glue process is an important feature of the square LED module, as it helps to protect the module from damage caused by water and dust. This process involves applying a layer of sealant around the module, sealing it off from the environment and preventing any damage or corrosion.
The special optical lens used in the square LED module allows it to achieve a ratio of 1:2.5, which is a great achievement in terms of brightness and efficiency. This lens is designed to distribute the light evenly and achieve the optimal lighting effect with minimal energy consumption.
Suitable for 10-25cm Height Channel Letters and Light Boxes Backlighting
Product Applications
LED module usage scenarios
FAQ
Q: What is the transmittance lens for this product?
A: The transmittance lens for this product is 95%, allowing for a clear and bright display.
Q: What is the view angle for this product?
A: The wide view angle for this product is 170°, providing excellent visibility from different angles.
Q: What technology is used to ensure constant voltage?
A: Constant Voltage Technology is used to ensure stable and reliable performance.
Q: How many LEDs are in one series?
A: There are 20 LEDs per series, providing sufficient brightness for different applications.

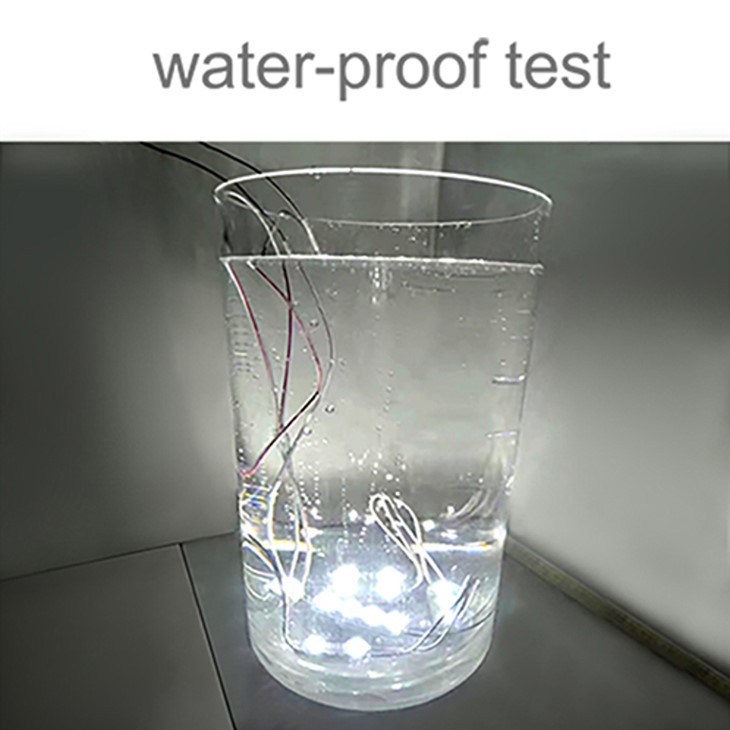

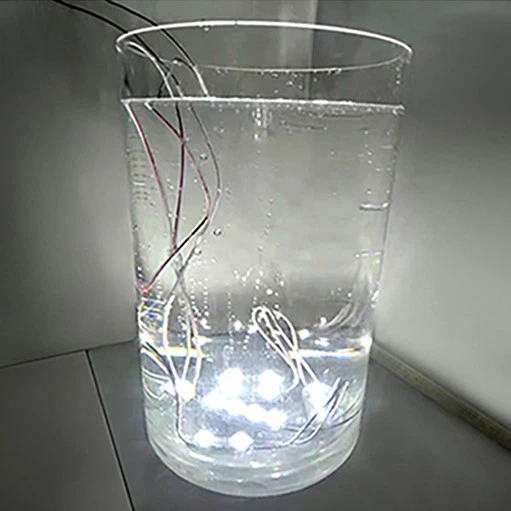

Q: Is this product suitable for outdoor use?
A: Yes, this product has IP68 Waterproof Class and can work outdoor directly.
Company Certificate
ISO9001
PSE
FCC
CE
UL
Company Profile
HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise in Guangdongprovince, established in 2013 ,occupied area of 2,500 square meters factory.With senior engineers' professional expertise and continuing research, we have obtained national intellectuaproperty,The company has passed the "ISO 9001" international quality system certification" and CERoHS,PSE.UL,Reach certificate for dozens of our products. HansonLed owns the strongest R & D teamAccording to the customer's requirement. We customize the products or package for our clients
ISO 9001
2500㎡ Plant area
HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service First" for all our customersWith an entirely new brand image andcontinuing good customer service, we wilstrive to offer more excellent exclusiveproducts to support all our customers andwell-established distributors, makingHansonLed as the first-class brand in LEDsignage lighting industry.
Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hansonled has grown into themarket leader in LED products at signagearea. Meanwhile, we export our productsto North America South America.MiddleEast AND European countries, whichenjoys great popularity in their localmarkets.Hansonled has become aprecursor successfully enter into westemdevelopment counties in LED Signagelighting industry.
HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting product ranges coverLED Flexible Strips,LED Linear Strip.LEDModule, LED Rigid bar, LED Ambient Lighhundreds of varieties, widely applied inChannal Letter,Shops sign, Lighting box,housing and accommodation, publicfacilities
OUR FACTORY
Company Certificate
ISO9001
PSE
FCC
CE
UL
Company Profile
HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise in Guangdongprovince, established in 2013 ,occupied area of 2,500 square meters factory.With senior engineers' professional expertise and continuing research, we have obtained national intellectuaproperty,The company has passed the "ISO 9001" international quality system certification" and CERoHS,PSE.UL,Reach certificate for dozens of our products. HansonLed owns the strongest R & D teamAccording to the customer's requirement. We customize the products or package for our clients
![2025042109070118083[1].jpg](/uploads/allimg/20260125/1-26012516120RH.jpg)
ISO 9001
12 year Industry experience
2500㎡ Plant area
HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service First" for all our customersWith an entirely new brand image andcontinuing good customer service, we wilstrive to offer more excellent exclusiveproducts to support all our customers andwell-established distributors, makingHansonLed as the first-class brand in LEDsignage lighting industry.
Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hansonled has grown into themarket leader in LED products at signagearea. Meanwhile, we export our productsto North America South America.MiddleEast AND European countries, whichenjoys great popularity in their localmarkets.Hansonled has become aprecursor successfully enter into westemdevelopment counties in LED Signagelighting industry.
HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting product ranges coverLED Flexible Strips,LED Linear Strip.LEDModule, LED Rigid bar, LED Ambient Lighhundreds of varieties, widely applied inChannal Letter,Shops sign, Lighting box,housing and accommodation, publicfacilities
OUR FACTORY
Item No. | I144 |
Input Voltage | DC12V |
Power | 1.44w |
Luminous Flux | 240-250Lm |
Rated Current | 120mA |
Lighting angle | 170° |
PCS/china | 20pcs |

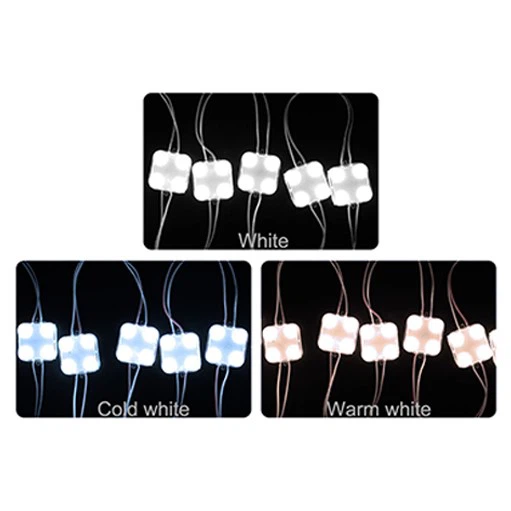

Color | WW/W/CW |
Waterproof class | IP68 |
Size | 50*41*12mm |
