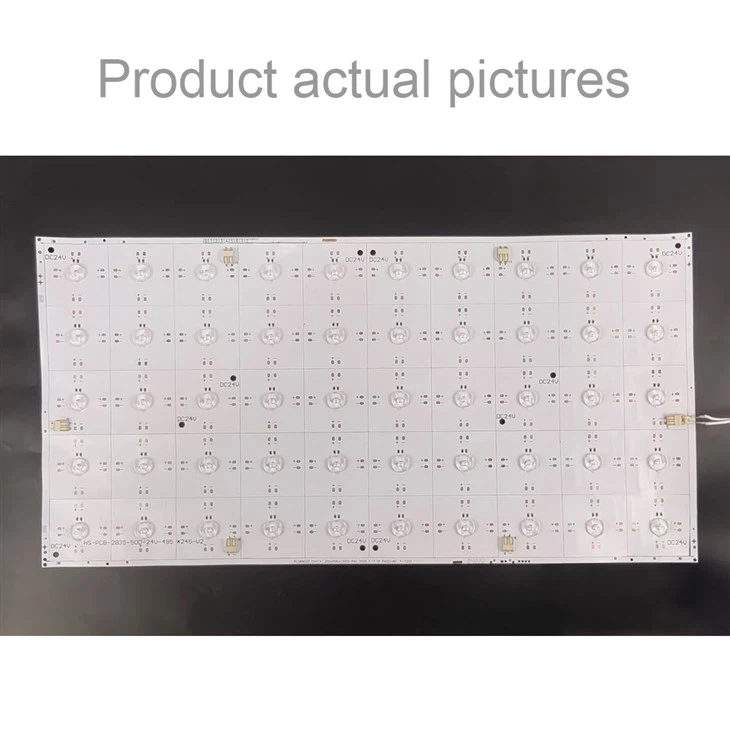

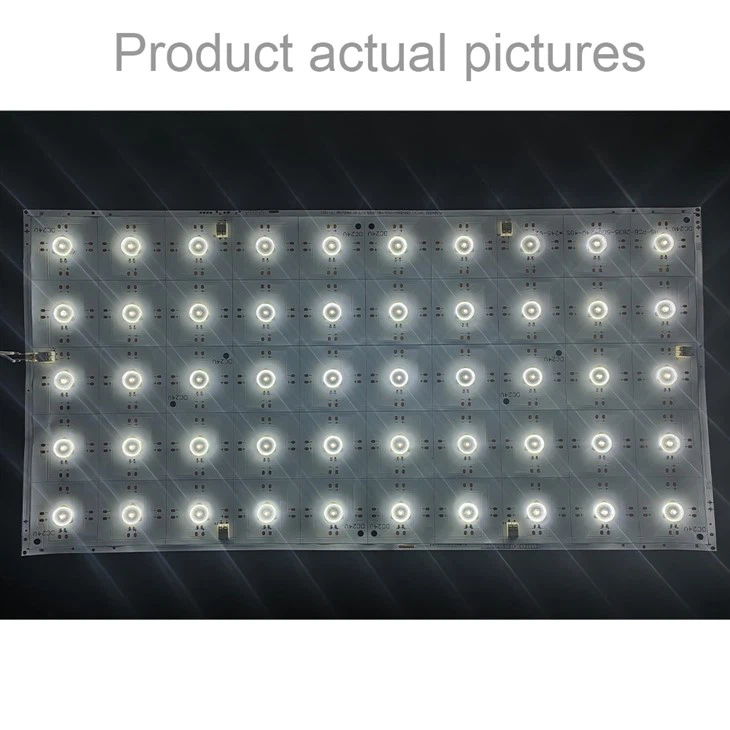

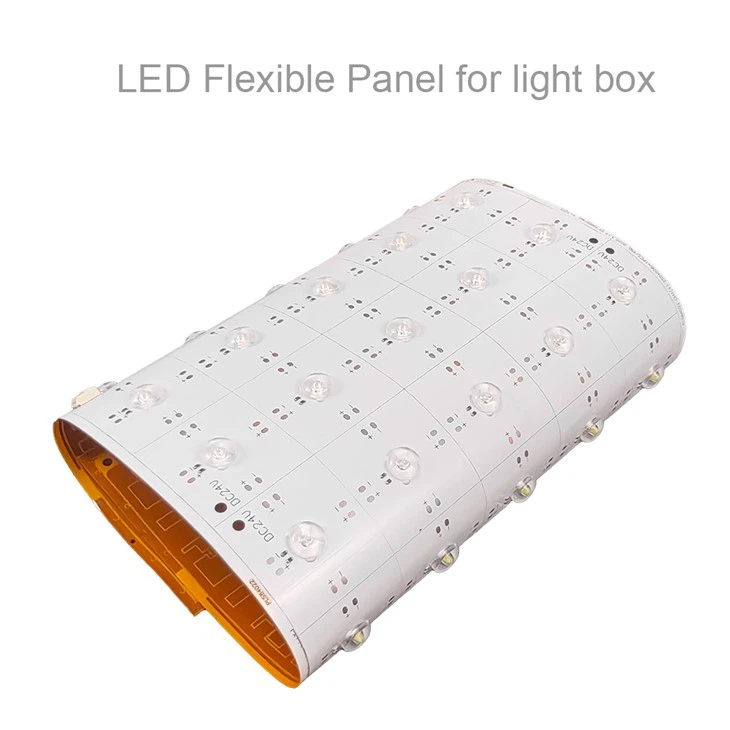

LED Flexible Panel For Light Box

Feature：

1.Utilize superior quality 2835 LED, high brightness, wide beaming angle and high luminous efficiency.

2.Special designed 170° optical lens, more suitable for ultra-thin light box..

3.Easy to install and use thanks to the pin connection.

4.With lifespan of more than 50000hrs, and no light degradation under certain conditions.

5.Constant voltage driving method, safe and stable.

6.CE, RoHS certified.

Description

This product integrates advanced 2835 LED chips, renowned for their exceptional brightness and energy efficiency. The 2835 LED architecture features a compact design with a high luminous flux output of up to 22-24 lumens per chip, ensuring optimal illumination for commercial and industrial applications. Its wide 120° beam angle is engineered to deliver uniform light distribution, minimizing hotspots and shadowing.

Additionally, the LED's superior thermal management system enhances heat dissipation, maintaining stable performance even during prolonged operation. With a luminous efficacy exceeding 100 lm/W, this solution outperforms conventional LED modules, offering a cost-effective and eco-friendly lighting alternative.

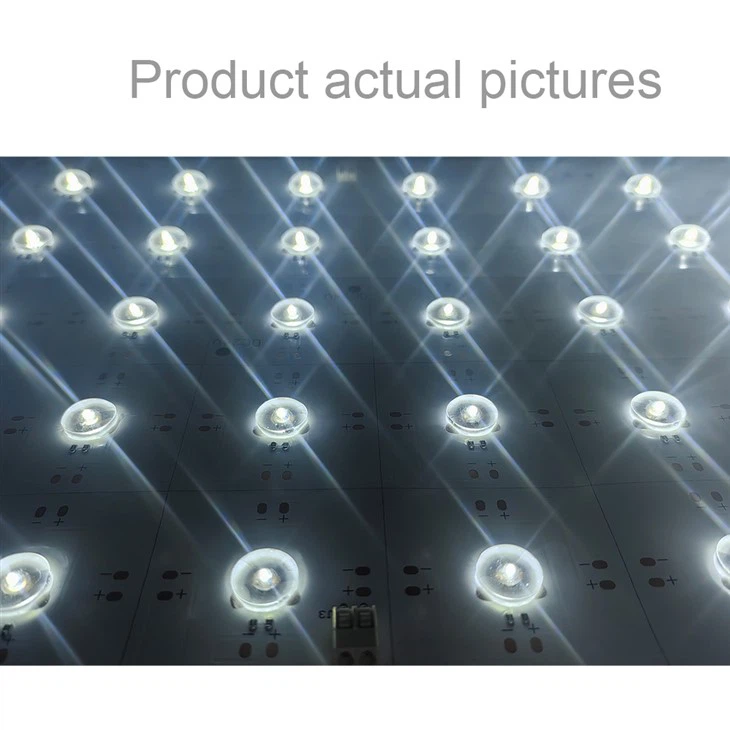

The custom-designed 170° optical lens optimizes light diffusion to align perfectly with ultra-thin light box requirements. By expanding the beam angle to 170°, the lens ensures edge-to-edge brightness uniformity, eliminating dark corners and enhancing visual appeal in signage and display applications. The anti-glare polycarbonate material reduces light loss while providing UV resistance, ensuring long-term clarity and color consistency. This proprietary lens design also allows for a slimmer profile (as thin as 15mm), making it ideal for space-constrained installations without compromising illumination quality.

A user-friendly pin-and-socket connection system simplifies installation, reducing labor time by up to 40%. The corrosion-resistant gold-plated connectors ensure reliable electrical contact, preventing voltage drop or intermittent connections. Each module is designed for tool-free daisy-chaining, enabling seamless scalability for large-scale projects. The plug-and-play mechanism supports both horizontal and vertical configurations, offering flexibility for custom light box designs. Maintenance is equally streamlined, as individual LED strips can be replaced without disassembling the entire system.

Engineered for durability, this LED solution boasts a rated lifespan exceeding 50,000 hours (L70/B10) under standard operating conditions (25&deg;C ambient temperature, 12V DC input). Rigorous testing confirms minimal lumen depreciation (<3%) over 10,000 hours, attributed to the use of premium phosphor-coated LEDs and robust driver circuitry. The absence of light degradation ensures consistent color temperature (3000K-6500K adjustable) and brightness throughout the product's lifecycle, reducing replacement costs and downtime. This reliability is further validated by accelerated aging tests simulating extreme humidity (95% RH) and temperature cycles (-20&deg;C to +60&deg;C).

The integrated constant voltage driver (12V/24V DC) ensures stable current output, safeguarding LEDs against voltage fluctuations (&plusmn;10% tolerance). This technology eliminates flickering and color shifts, critical for high-end retail and architectural lighting. The driver's overcurrent, overvoltage, and short-circuit protection mechanisms comply with IEC 61347-1 safety standards, ensuring fail-safe operation. With a power efficiency rating of &ge;90%, the system minimizes energy waste while operating silently-ideal for noise-sensitive environments like museums or offices.

Certified under CE (EN 60598-1) and RoHS (Directive 2011/65/EU) regulations, this product meets stringent international safety and environmental standards. The RoHS-compliant manufacturing process eliminates hazardous substances like lead, mercury, and cadmium, ensuring eco-sustainability. CE certification guarantees electromagnetic compatibility (EMC) and low-voltage directive (LVD) conformity, enabling seamless integration into European and global markets. All components are traceable via a QR-code system, facilitating compliance audits and quality assurance.

Combining cutting-edge 2835 LEDs, precision optics, and intelligent engineering, this ultra-thin light box solution redefines efficiency and reliability in commercial lighting. Its plug-and-play design, extended lifespan, and rigorous certifications position it as a versatile, future-proof choice for signage, retail displays, and architectural accents.

FAQ

Q1: What type of LED is used in the product, and what are its key features?

A1: The product utilizes superior quality 2835 LED technology, which is renowned for its high brightness, wide beaming angle, and high luminous efficiency. This ensures optimal performance and illumination, making it an ideal choice for various lighting applications.

Q2: How does the optical lens design enhance the functionality of the product?

A2: The product features a specially designed 170&deg; optical lens, which provides an exceptionally wide angle of illumination. This design makes the product particularly suitable for ultra-thin light boxes, ensuring even and consistent lighting across the surface.

Q3: What installation advantages does the product offer?

A3: The product is equipped with a pin connection system, which significantly simplifies the installation process. This feature allows for quick and easy assembly, reducing both time and labor costs while ensuring secure and stable connections.

Q4: What is the expected lifespan of the product, and how does it maintain its performance over time?

A4: The product boasts an impressive lifespan of more than 50,000 hours under normal operating conditions. Additionally, it ensures no significant light degradation over time, maintaining consistent brightness and color accuracy throughout its service life.

Q5: What safety certifications and driving methods ensure the reliability of the product?

A5: The product employs a constant voltage driving method, ensuring safe and stable operation. Furthermore, it has obtained CE and RoHS certifications, guaranteeing compliance with international safety and environmental standards. These certifications assure users of the product's reliability, safety, and eco-friendliness.
