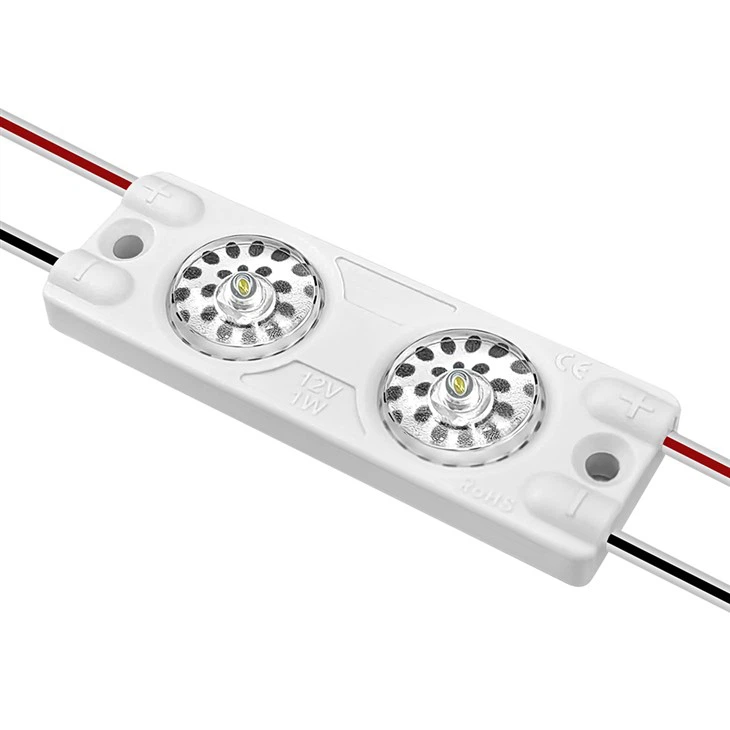

Eco High Efficiency 2 LED Module

◆ Transprent housing design, better reflection in slim light box

◆ 95% transmittance lens,Wide view angle 170°

◆ High Power & High Efficiency design,upto 150lm/w

◆ The Aluminum plate for heat dissipation

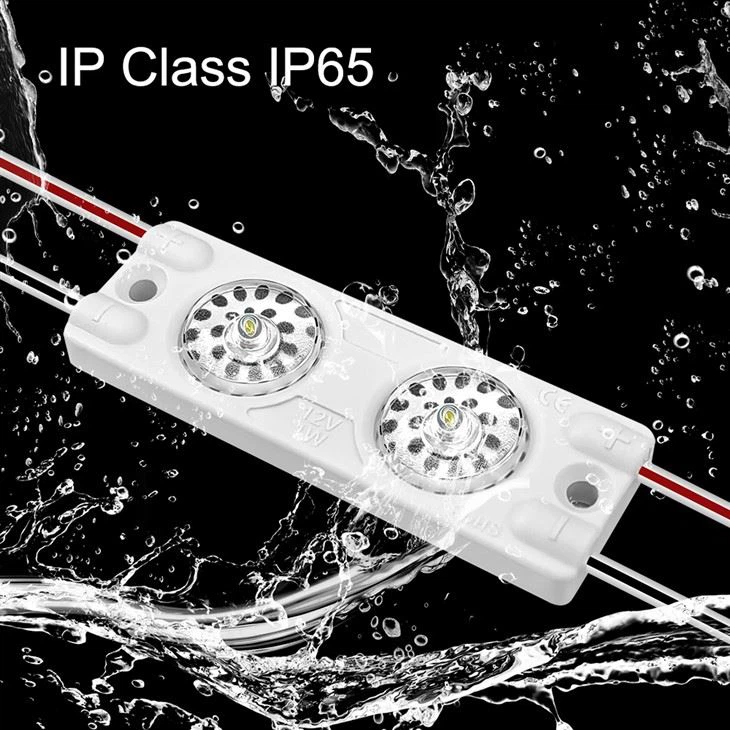

◆ Injection molding process,Waterproof:IP 65

◆ Special Opitical Lens,can reach ratio 1:2.5

◆ Suitable for 6-12cm height channel letters and light boxes backlighting etc.

Description

The Eco High Efficiency 2 LED Module incorporates a strategically engineered transparent housing. This design is not merely aesthetic; it significantly enhances internal light reflection within slim-profile light boxes. By minimizing light absorption and maximizing redirection off internal surfaces, the transparent housing ensures a higher proportion of generated lumens is effectively utilized for illumination, resulting in superior brightness uniformity and overall luminous output efficiency specifically tailored for applications with constrained depth.

Central to this module's performance is an advanced optical lens boasting an exceptional 95% light transmittance. This near-lossless transmission minimizes energy waste as light passes through the lens material. Furthermore, the lens geometry delivers an ultra-wide 170-degree viewing angle. This expansive coverage ensures even light distribution across large surface areas, effectively eliminates visible hotspots or dark zones, and provides consistent, high-quality illumination suitable for demanding signage and display applications where viewing perspective varies.

Engineered with cutting-edge LED semiconductor technology, this module achieves a remarkable luminous efficacy of up to 150 lumens per watt (lm/W). This high-efficiency design translates directly into significant operational advantages: it produces exceptionally bright light output from lower electrical power input, reducing energy consumption and associated costs. Simultaneously, the high-power capability ensures robust illumination intensity meets the requirements of professional commercial and architectural lighting, delivering outstanding brightness while adhering to eco-conscious principles.

Recognizing that heat is the primary adversary of LED longevity and performance stability, this module integrates a dedicated aluminum plate as its core structural base. Aluminum's excellent thermal conductivity rapidly draws heat away from the sensitive LED chips and associated circuitry. This proactive heat dissipation is critical for maintaining optimal LED junction temperatures, thereby ensuring consistent light output (minimizing lumen depreciation), preserving color stability over extended periods, and significantly prolonging the operational lifespan of the module far beyond inferior designs.

Manufactured using precision injection molding processes, the module housing achieves exceptional dimensional accuracy, structural integrity, and material consistency. This robust construction forms the foundation for its IP65-rated ingress protection. The IP65 certification guarantees complete protection against intrusive dust particles (rated "6") and shields against low-pressure water jets from any direction (rated "5"). This resilience makes the module impervious to typical environmental challenges encountered both indoors and outdoors, including rain, dust, humidity, and cleaning procedures, ensuring reliable operation in diverse conditions.

Beyond wide viewing angles and high transmission, the module features a specially engineered optical lens designed to achieve an impressive 1:2.5 throw ratio. This optical performance metric signifies the module's ability to deliver uniform, high-intensity illumination even when mounted relatively close to the illuminated surface. Specifically, it can effectively light surfaces located up to 2.5 times the module's mounting distance away. This capability is paramount for achieving consistent backlighting in applications like channel letters and light boxes where space between the module and the diffuser or face material is limited.

The combined features of the Eco High Efficiency 2 LED Module – its slim profile enhanced by the transparent housing, high efficiency, wide beam angle, close-proximity lighting capability (1:2.5 ratio), and robust IP65 protection – make it the optimal solution for illuminating shallow-depth fixtures. It is particularly well-suited for channel letters ranging from 6cm to 12cm (approximately 2.5 to 5 inches) in height, as well as various slim light boxes, cabinet lighting, and other backlighting applications where space efficiency, brightness uniformity, energy savings, and long-term outdoor durability are critical requirements. This module delivers professional-grade performance tailored precisely to these demanding environments.

FAQ

1. Q: What are the key optical performance features of the Eco High Efficiency 2 LED Module?

A: The module delivers outstanding optical performance. It incorporates a lens with 95% light transmittance, maximizing output efficiency. It provides an exceptionally wide viewing angle of 170 degrees for broad, uniform illumination. Furthermore, the module utilizes a special optical lens design enabling a projection ratio of 1:2.5, optimizing light spread for specific applications like channel letters.

2. Q: How energy efficient is this LED module, and what light output can be expected?

A: The Eco High Efficiency 2 LED Module is engineered for superior performance, achieving up to 150 lumens per watt (lm/W). This high power combined with high efficiency design ensures bright illumination while minimizing energy consumption and operational costs.

3. Q: How does the module manage heat dissipation and ensure durability?

A: Effective thermal management is achieved through an integrated aluminum plate, which efficiently draws heat away from the LEDs, promoting longevity and stable performance. The module is manufactured using an injection molding process and achieves an IP65 waterproof rating, providing excellent protection against dust ingress and low-pressure water jets from any direction, ensuring reliability in various environments.

4. Q: For which specific signage applications is this LED module best suited?

A: This module is ideally suited for providing backlighting in applications requiring slim profiles and high efficiency. Its design is particularly optimized for channel letters with heights ranging between 6cm (approximately 2.36 inches) and 12cm (approximately 4.72 inches), as well as for various light box configurations requiring bright, uniform illumination, etc.

5. Q: What design features contribute to the module's lighting effectiveness in slim profiles?

A: The module features a transparent housing design. This enhances internal light reflection within confined spaces typical of slim light boxes and channel letters. Combined with the high-transmittance lens (95%) and wide 170-degree viewing angle, this design ensures maximum light output is effectively directed forward with minimal loss, producing bright and visually impactful signage.
