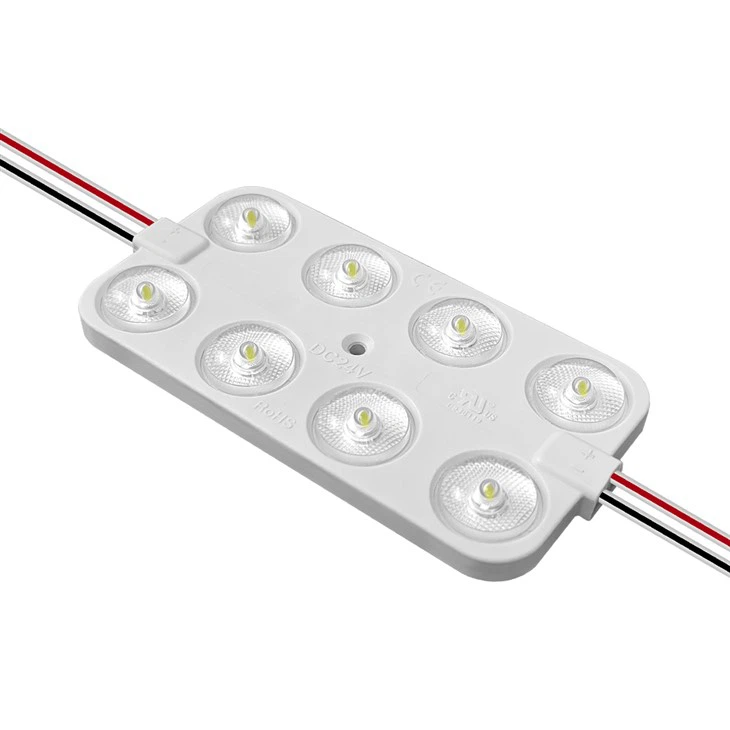

High Efficiency High Power Led Module

Feature：

◆ 95% transmittance lens,Wide view angle 170°

◆ bright illumination with fewer modules

◆ Constant current Technology ,20 pcs per series

◆ The exposed Aluminum plate for heat dissipation

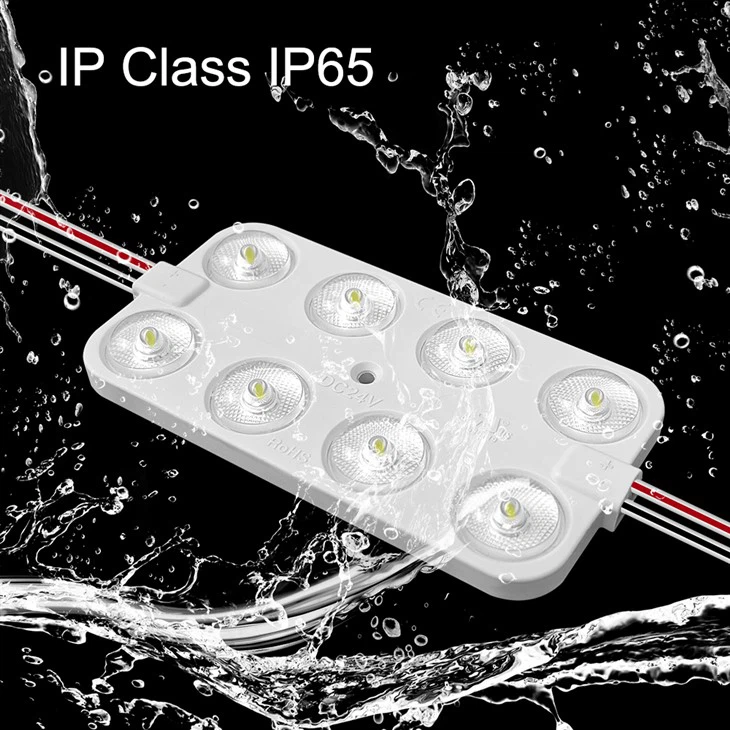

◆ Injection molding process,Waterproof:IP 65

◆ High Efficiency design, Upto 170lm/w

◆ Long life span

◆ Suitable for 10-30cm height channel letters and light boxes backlighting etc.

Description

Introduction to High Efficiency High Power LED Module

Equipped with a lens boasting 95% transmittance, this LED module maximizes light utilization to ensure minimal light loss during transmission. Complemented by a wide view angle of 170°, it delivers uniform illumination across a broad area, effectively eliminating shadows and dark spots.

This high - power LED module achieves bright illumination with significantly fewer units compared to conventional alternatives. Its optimized light - emitting design ensures that even a reduced number of modules can provide sufficient brightness, reducing installation complexity, saving space, and lowering overall material costs.

Adopting advanced constant current technology, this module maintains a stable current output regardless of input voltage fluctuations. This stability not only ensures consistent light intensity and color temperature but also protects the LED chips from damage caused by current spikes. With a configuration of 20 pieces per series, it offers reliable performance in series - connected lighting systems.

Featuring an exposed Aluminum plate, the module excels in heat dissipation. The Aluminum material, known for its excellent thermal conductivity, quickly transfers the heat generated by the LED chips to the surrounding environment. Efficient heat dissipation prevents overheating, which is crucial for maintaining the module's performance and extending its operational life.

Manufactured using an advanced injection molding process, the module boasts a robust and durable structure. This process ensures precise dimensional accuracy and a tight seal, contributing to its impressive waterproof performance with an IP65 rating. It can withstand exposure to rain, dust, and other harsh environmental conditions, making it suitable for both indoor and outdoor applications.

With a high - efficiency design, this LED module achieves an impressive luminous efficacy of up to 170lm/w. This means it converts electrical energy into light energy with minimal waste, significantly reducing energy consumption compared to traditional lighting sources. It is an environmentally friendly choice that helps lower electricity bills.

Designed for long - term use, this LED module offers an exceptionally long life span. Thanks to its high - quality components, efficient heat dissipation, and stable current control, it can operate continuously for thousands of hours without significant degradation in performance. This reduces the need for frequent replacements and maintenance, saving time and resources.

This versatile LED module is particularly suitable for backlighting applications in 10 - 30cm height channel letters and light boxes. Its compact size, combined with its bright and uniform illumination, makes it an ideal choice for enhancing the visibility and attractiveness of signage and displays in commercial, retail, and advertising settings.
