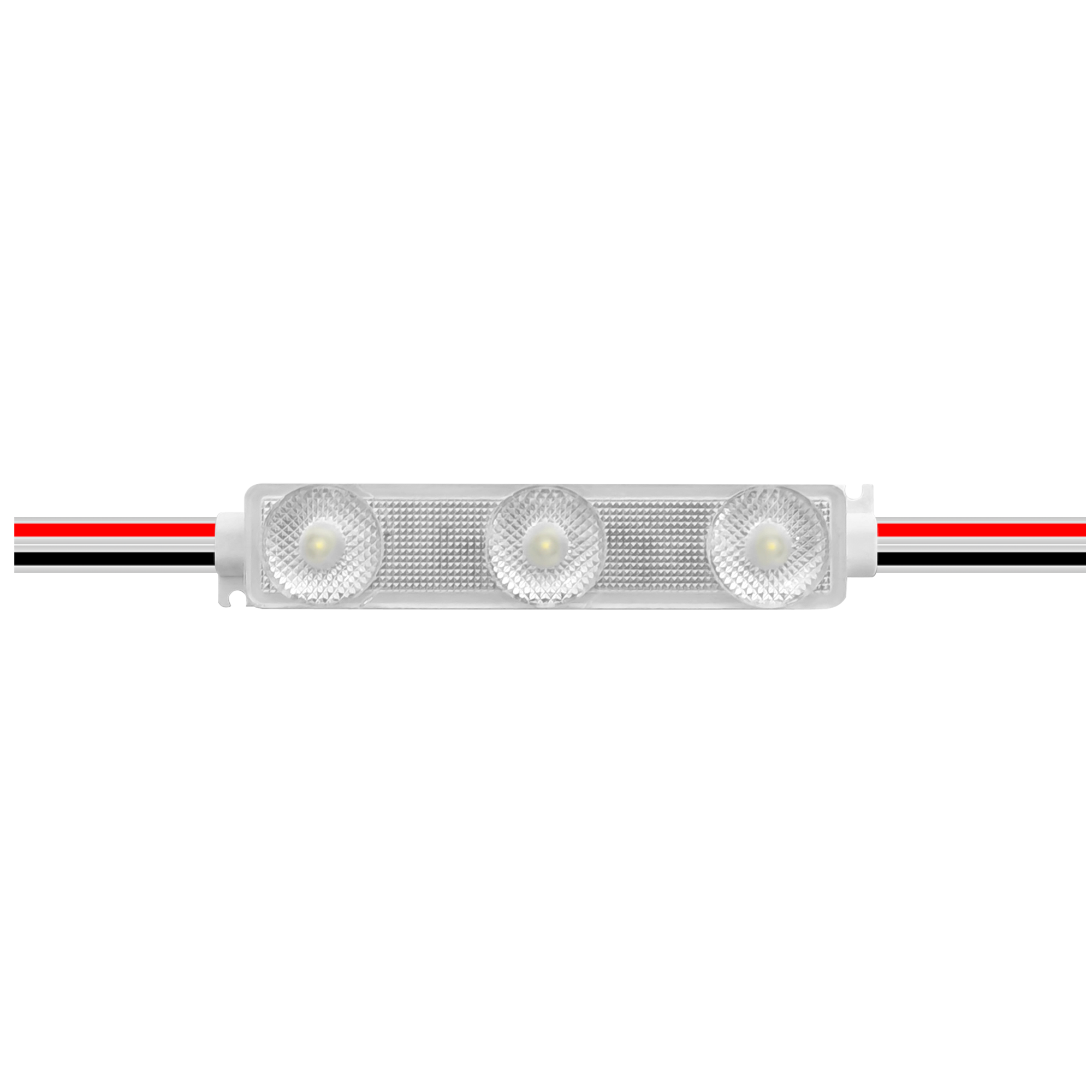

Ultrasonic LED Module 3led 1.2W

Ultrasonic LED Module 3led 1.2W

◆ New Technology ,PCB and components with silicon coating

◆ High Efficiency design,170lm/w

◆ Injection molding process,Waterproof:IP 67

◆ Real IC design,with better protection for led module

◆ Constant Current design,Can make Long Chain,40pcs cascade

◆ The Aluminum plate for heat dissipation

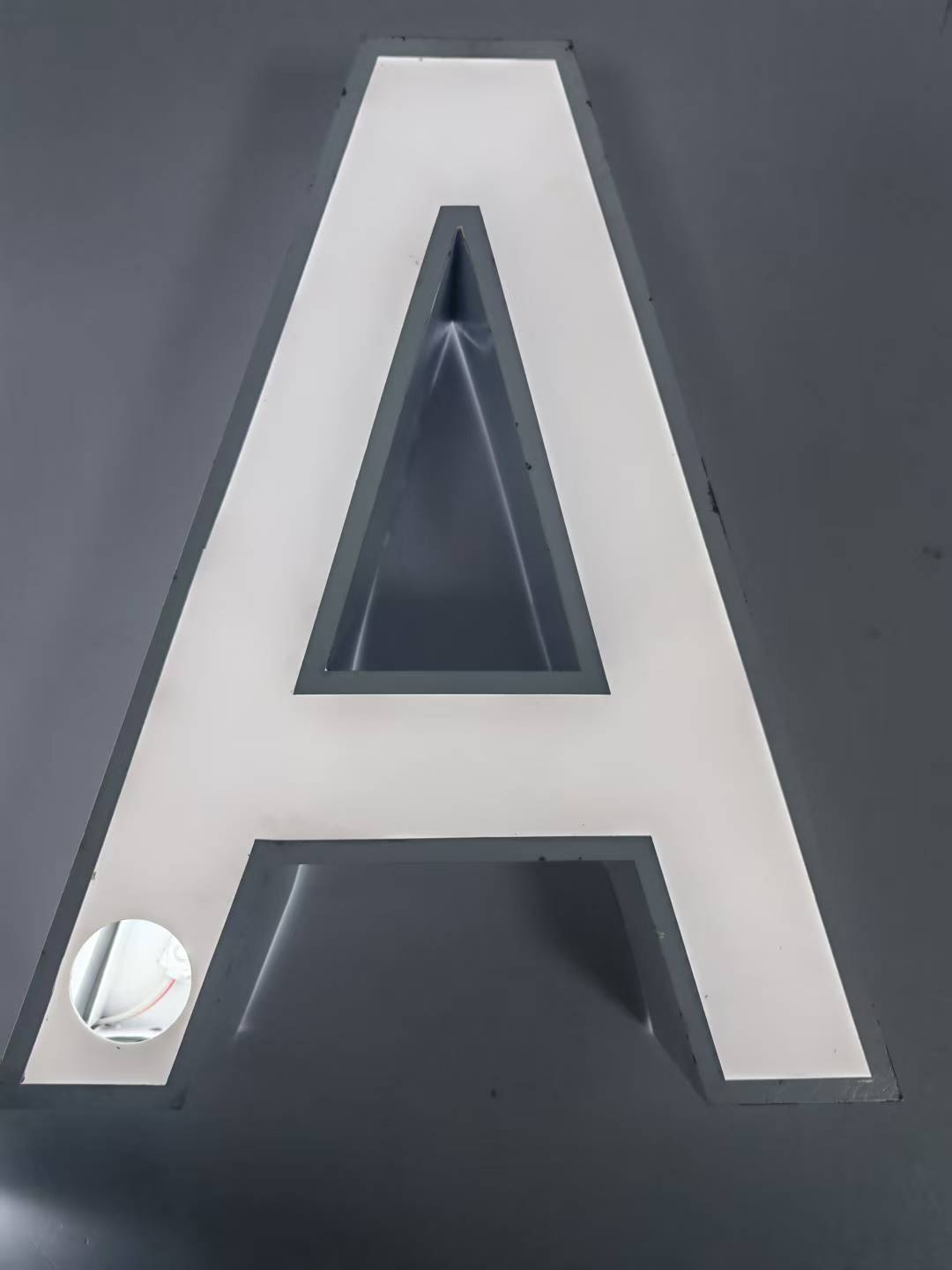

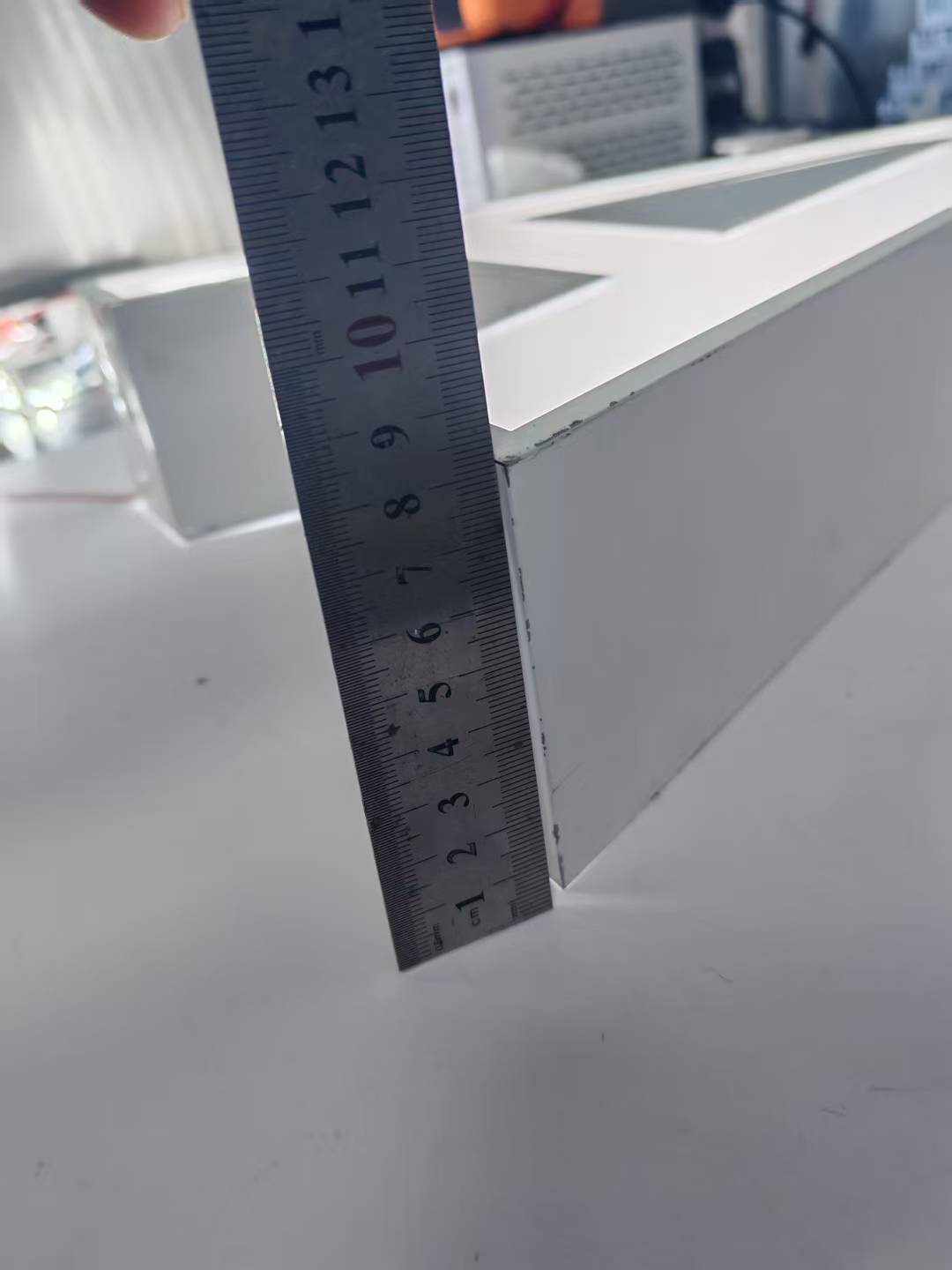

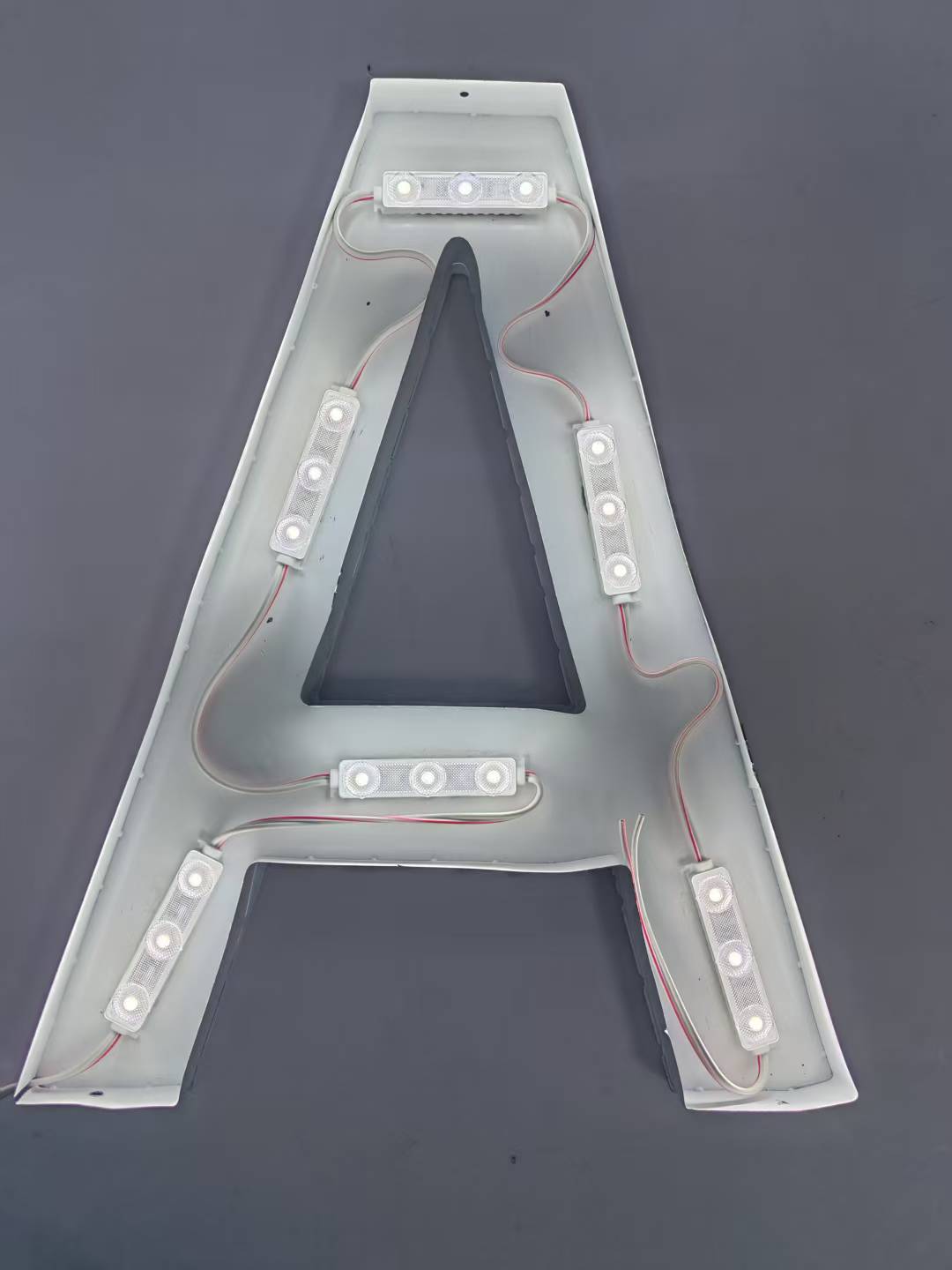

◆ Suitable for 8-20cm height channel letters and light boxes backlighting etc.


Send Inquiry

Description

Technical Parameters

Feature:

◆ New Technology ,PCB and components with silicon coating

◆ High Efficiency design,170lm/w

◆ Injection molding process,Waterproof:IP 67

◆ Real IC design,with better protection for led module

◆ Constant Current design,Can make Long Chain,40pcs cascade

◆ The Aluminum plate for heat dissipation

◆ Suitable for 8-20cm height channel letters and light boxes backlighting etc.

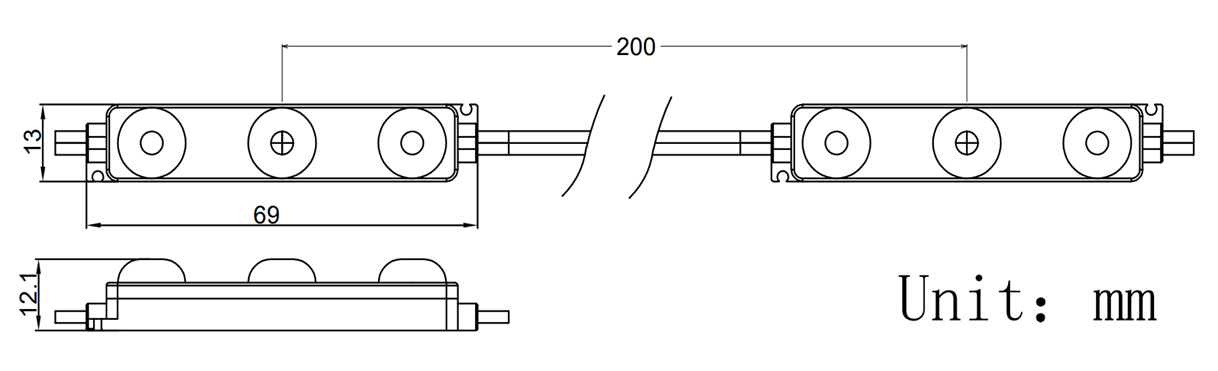

Dimensions:



package:



Carton size: 65*29*32cm2000pcs/carton
Weigth:25.2kg/carton










Company Certificate




ISO9001

ISO9001

PSE

PSE

FCC

FCC

CE

CE

UL

UL



Company Profile



HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise in Guangdongprovince, established in 2013 ,occupied area of 2,500 square meters factory.With senior engineers' professional expertise and continuing research, we have obtained national intellectuaproperty,The company has passed the "ISO 9001" international quality system certification" and CERoHS,PSE.UL,Reach certificate for dozens of our products. HansonLed owns the strongest R & D teamAccording to the customer's requirement. We customize the products or package for our clients








ISO 9001





12 year Industry experience





2500㎡ Plant area





HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service Firs

01

HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service First" for all our customersWith an entirely new brand image andcontinuing good customer service, we wilstrive to offer more excellent exclusiveproducts to support all our customers andwell-established distributors, makingHansonLed as the first-class brand in LEDsignage lighting industry.

02

Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hansonled has grown into themarket leader in LED products at signagearea. Meanwhile, we export our productsto North America South America.MiddleEast AND European countries, whichenjoys great popularity in their localmarkets.Hansonled has become aprecursor successfully enter into westemdevelopment counties in LED Signagelighting industry.

Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hanson

HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting pro

03

HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting product ranges coverLED Flexible Strips,LED Linear Strip.LEDModule, LED Rigid bar, LED Ambient Lighhundreds of varieties, widely applied inChannal Letter,Shops sign, Lighting box,housing and accommodation, publicfacilities



OUR FACTORY



Injection Dept
Injection Dept
SMT Dept
SMT Dept
Ttest Area
Ttest Area
Welding Dept
Welding Dept
Warehouse
Warehouse
Sample Room
Sample Room
Labs
Labs





CodeColorOpration
    Voltage
Rated
    Current
Rated
    Power
Beam
    Angle
Luminous FluxEfficiencyColor Temp.IP Rank
I148PW11W12Pure   WhiteDC12V90mA1.08W170°180-190LM170lm/w7000-7500KIP 67
