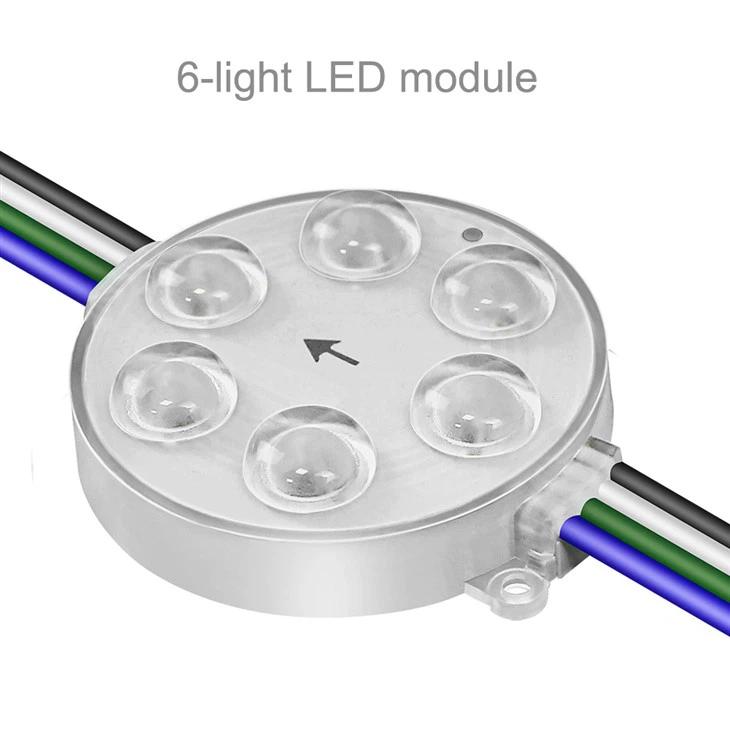

Smart RGB Module
Feature：
◆ Signal Break-point Continuous Transmission
◆ Adopts dual signal transmission
◆ Used TM1934 IC
◆ Long cascade,40pcs per Chain
◆ The gray levels of each module of 256 levels
◆ 3528RGB，Golden wire,high lumen chip

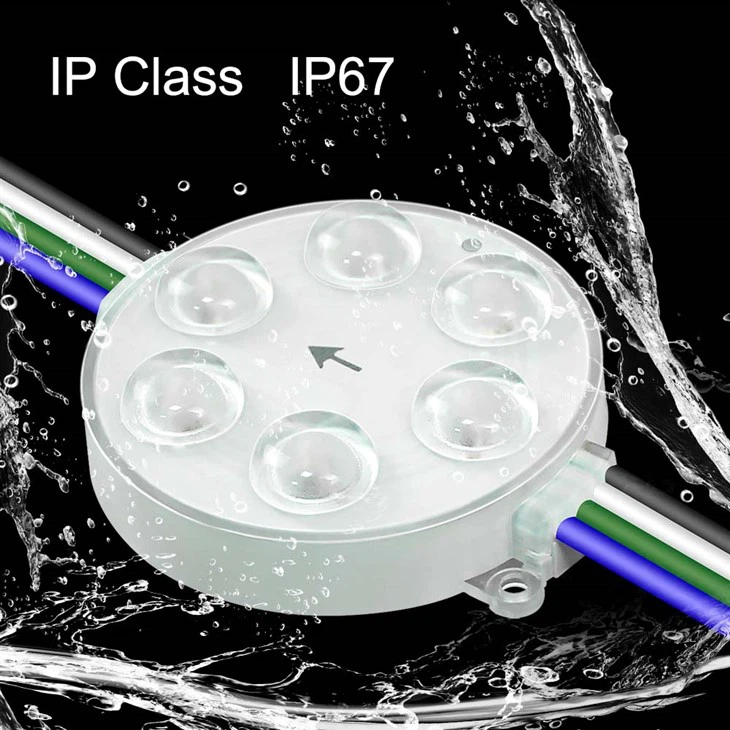

◆ IP class reach to IP67
Description
Technical Parameters
Feature：
◆ Signal Break-point Continuous Transmission
◆ Adopts dual signal transmission
◆ Used TM1934 IC
◆ Long cascade,40pcs per Chain
◆ The gray levels of each module of 256 levels
◆ 3528RGB,Golden wire,high lumen chip
◆ IP class reach to IP67
![20231127142238f00e13ed83f3465d93e539ba4c5842fd[1].png](/uploads/allimg/20260124/1-2601242113225O.png)
![20231127142303aaa5fe25471546a494fc2f138e6211eb[1].jpg](/uploads/allimg/20260124/1-26012421133HO.jpg)
Description
The Smart RGB Module is a highly innovative, high-tech lighting solution with a range of advanced features that make it ideal for a variety of applications and settings. Designed for superior performance, durability and reliability, this module is a state-of-the-art lighting solution that meets the needs of the most demanding lighting environments.
One of the key features of the Smart RGB Module is its Signal Break-point Continuous Transmission capability. This allows for continuous signal transmission even when there is a break in the transmission path, ensuring that the lighting remains on even in the case of signal disruptions. Additionally, this module adopts dual signal transmission to further improve signal reliability and stability.
Using the TM1934 IC, the Smart RGB Module boasts long cascading capabilities, with up to 40 modules per chain. This makes it ideal for lighting setups that require a large number of lighting fixtures in a single area. The gray levels of each module are adjustable, with 256 levels available for each module.
Further, the Smart RGB Module is constructed with 3528RGB, golden wire and high lumen chip, making it one of the most efficient and long-lasting lighting solutions currently available. It also boasts a high IP class of IP67, meaning it is well-protected from dust and moisture, making it an ideal choice for outdoor or harsh environments.
The Smart RGB Module is a top-of-the-line lighting solution for a variety of applications, including decorative lighting, stage lighting, and architectural lighting. With its advanced features and superior performance capabilities,
Product Parameters
Code | I123-T19 |

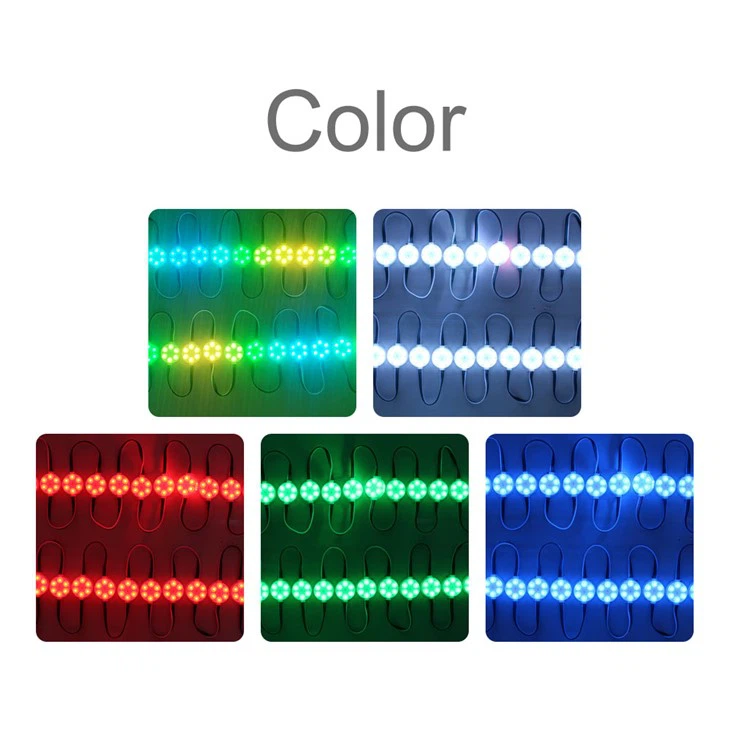

Color | RGBW |
Opration Voltage | DC24V |
Rated Current | 15/45mA |
Rated Power | 0.36/1.08W |
Beam Angle | 165° |
Luminous Flux | 16/42/10/68lm |
CCT | 460-625nm |
Working Temp. | -40℃-60℃ |
IP Rank | IP 67 |
Product Applications
LED module usage scenarios
Company Certificate
ISO9001
PSE
FCC
CE
UL
Company Profile
HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise in Guangdongprovince, established in 2013 ,occupied area of 2,500 square meters factory.With senior engineers' professional expertise and continuing research, we have obtained national intellectuaproperty,The company has passed the "ISO 9001" international quality system certification" and CERoHS,PSE.UL,Reach certificate for dozens of our products. HansonLed owns the strongest R & D teamAccording to the customer's requirement. We customize the products or package for our clients
ISO 9001
2500㎡ Plant area
HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service First" for all our customersWith an entirely new brand image andcontinuing good customer service, we wilstrive to offer more excellent exclusiveproducts to support all our customers andwell-established distributors, makingHansonLed as the first-class brand in LEDsignage lighting industry.
Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hansonled has grown into themarket leader in LED products at signagearea. Meanwhile, we export our productsto North America South America.MiddleEast AND European countries, whichenjoys great popularity in their localmarkets.Hansonled has become aprecursor successfully enter into westemdevelopment counties in LED Signagelighting industry.
HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting product ranges coverLED Flexible Strips,LED Linear Strip.LEDModule, LED Rigid bar, LED Ambient Lighhundreds of varieties, widely applied inChannal Letter,Shops sign, Lighting box,housing and accommodation, publicfacilities
OUR FACTORY
Company Certificate
ISO9001
PSE
FCC
CE
UL
Company Profile
HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise in Guangdongprovince, established in 2013 ,occupied area of 2,500 square meters factory.With senior engineers' professional expertise and continuing research, we have obtained national intellectuaproperty,The company has passed the "ISO 9001" international quality system certification" and CERoHS,PSE.UL,Reach certificate for dozens of our products. HansonLed owns the strongest R & D teamAccording to the customer's requirement. We customize the products or package for our clients
![2025042109070118083[1].jpg](/uploads/allimg/20260125/1-26012516120RH.jpg)
ISO 9001
12 year Industry experience
2500㎡ Plant area
HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service First" for all our customersWith an entirely new brand image andcontinuing good customer service, we wilstrive to offer more excellent exclusiveproducts to support all our customers andwell-established distributors, makingHansonLed as the first-class brand in LEDsignage lighting industry.
Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hansonled has grown into themarket leader in LED products at signagearea. Meanwhile, we export our productsto North America South America.MiddleEast AND European countries, whichenjoys great popularity in their localmarkets.Hansonled has become aprecursor successfully enter into westemdevelopment counties in LED Signagelighting industry.
HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting product ranges coverLED Flexible Strips,LED Linear Strip.LEDModule, LED Rigid bar, LED Ambient Lighhundreds of varieties, widely applied inChannal Letter,Shops sign, Lighting box,housing and accommodation, publicfacilities
OUR FACTORY
Code | Opration | Color | Rated | Rated | Beam | Luminous Flux | CCT | Working Temp. | IP Rank |
I123-T19 | DC24V | R | 15mA | 0.36W | 165° | 16 lm | 620-625nm | -40℃-60℃ | IP 67 |
G | 15mA | 0.36W | 42 lm | 520-530nm | |||||
B | 15mA | 0.36W | 10 lm | 460-470nm | |||||
W | 45mA | 1.08W | 68 lm | / |
