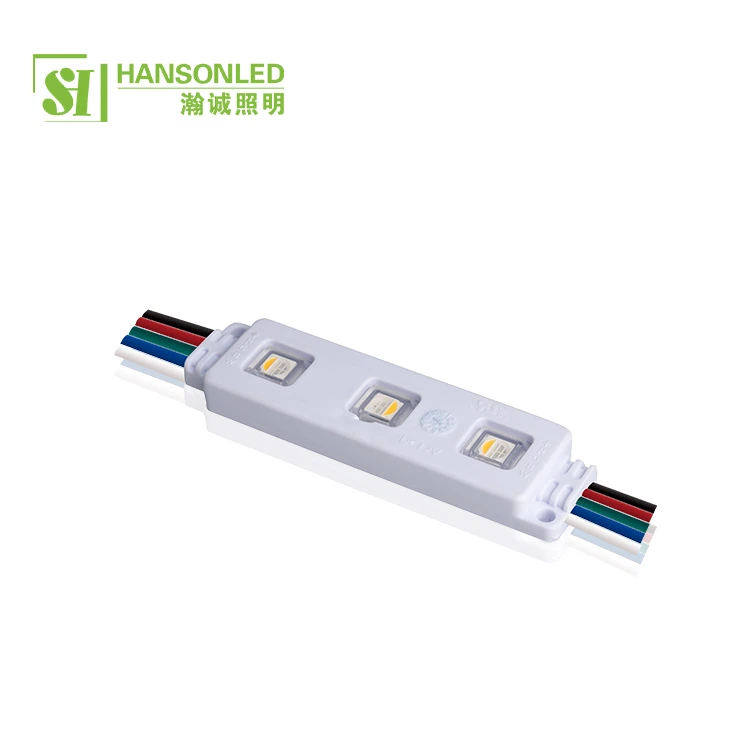

RGBW LED Module
Feature：
◆ 100% transmittance PC Cover
◆ High lumen epistar chip
◆ Constant Voltage Technology ,20 pcs per series
◆ The exposed Aluminum plate for heat dissipation

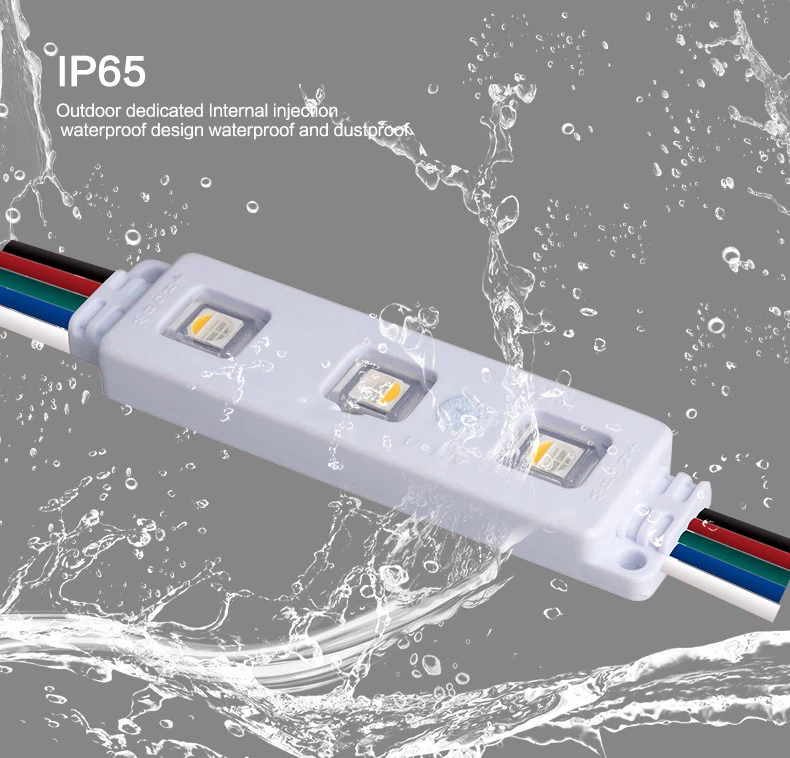

◆ Injection molding process,Waterproof:IP 67
◆ Energy saving,Environment friendly
◆ Long life span
Description
Technical Parameters
Feature：
◆ 100% transmittance PC Cover
◆ High lumen epistar chip
◆ Constant Voltage Technology ,20 pcs per series
◆ The exposed Aluminum plate for heat dissipation
◆ Injection molding process,Waterproof:IP 67
◆ Energy saving,Environment friendly
◆ Long life span

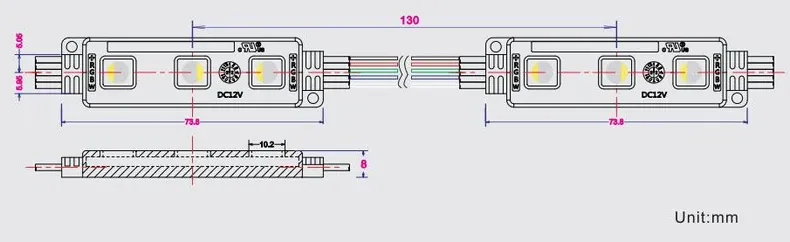

![2023052310420510746691a3d042f1914297d484ba8af6[1].jpg](/uploads/allimg/20260124/1-2601242131501M.jpg)
The RGBW LED Module is an advanced lighting solution designed to offer high lumen output, energy efficiency, and environmental friendliness. This LED module is made of high-quality materials, featuring a 100% transmittance PC cover for improved light distribution. The cover helps to reduce glare and scatter loss, making it suitable for various lighting applications.
The device features high lumen Epistar chips, which provide superior brightness, color consistency, and reliability. The module also employs Constant Voltage Technology, which guarantees a stable power supply and reduces flicker and noise. With 20 pieces per series, the RGBW LED Module generates enough illumination to meet various lighting requirements.
Another highlight of this LED module is its excellent thermal management. The exposed aluminum plate acts as a heatsink, dissipating heat from the light source effectively. This not only ensures reliable performance but also extends the lifespan of the device. Additionally, the injection molding process makes the module waterproof, providing protection against dust, moist, and other environmental hazards. With an IP67 rating, the RGBW LED Module is suitable for both indoor and outdoor use.
The RGBW LED Module is an energy-efficient and eco-friendly lighting option. It consumes less energy and produces less heat compared to traditional lighting sources. This not only saves energy but also reduces the carbon footprint, contributing to a cleaner environment. Moreover, the device has a long life span, reducing the need for frequent replacements and maintenance.
The RGBW LED Module is an excellent lighting solution that combines superior performance, advanced features, and environmental benefits. With its high lumen output, constant voltage technology, thermal management, and waterproof design, this LED module is a reliable option for various lighting applications.
Product Parameters
Code | I79 |
Color | RGBW |
Opration Voltage | DC12V |
Rated Current | 60mA |
Rated Power | 0.72W |
Beam Angle | 120° |
Luminous Flux | 2/5/1.2/10lm |
CCT | 620-625/520-525/460-467/2800-3200nm |
Working Temp. | -40℃-60℃ |
IP Rank | IP 67 |
Product Applications
LED module usage scenarios
Company Certificate
ISO9001
PSE
FCC
CE
UL
Company Profile
HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise in Guangdongprovince, established in 2013 ,occupied area of 2,500 square meters factory.With senior engineers' professional expertise and continuing research, we have obtained national intellectuaproperty,The company has passed the "ISO 9001" international quality system certification" and CERoHS,PSE.UL,Reach certificate for dozens of our products. HansonLed owns the strongest R & D teamAccording to the customer's requirement. We customize the products or package for our clients
ISO 9001
2500㎡ Plant area
HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service First" for all our customersWith an entirely new brand image andcontinuing good customer service, we wilstrive to offer more excellent exclusiveproducts to support all our customers andwell-established distributors, makingHansonLed as the first-class brand in LEDsignage lighting industry.
Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hansonled has grown into themarket leader in LED products at signagearea. Meanwhile, we export our productsto North America South America.MiddleEast AND European countries, whichenjoys great popularity in their localmarkets.Hansonled has become aprecursor successfully enter into westemdevelopment counties in LED Signagelighting industry.
HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting product ranges coverLED Flexible Strips,LED Linear Strip.LEDModule, LED Rigid bar, LED Ambient Lighhundreds of varieties, widely applied inChannal Letter,Shops sign, Lighting box,housing and accommodation, publicfacilities
OUR FACTORY
Company Certificate
ISO9001
PSE
FCC
CE
UL
Company Profile
HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise in Guangdongprovince, established in 2013 ,occupied area of 2,500 square meters factory.With senior engineers' professional expertise and continuing research, we have obtained national intellectuaproperty,The company has passed the "ISO 9001" international quality system certification" and CERoHS,PSE.UL,Reach certificate for dozens of our products. HansonLed owns the strongest R & D teamAccording to the customer's requirement. We customize the products or package for our clients
![2025042109070118083[1].jpg](/uploads/allimg/20260125/1-26012516120RH.jpg)
ISO 9001
12 year Industry experience
2500㎡ Plant area
HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service First" for all our customersWith an entirely new brand image andcontinuing good customer service, we wilstrive to offer more excellent exclusiveproducts to support all our customers andwell-established distributors, makingHansonLed as the first-class brand in LEDsignage lighting industry.
Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hansonled has grown into themarket leader in LED products at signagearea. Meanwhile, we export our productsto North America South America.MiddleEast AND European countries, whichenjoys great popularity in their localmarkets.Hansonled has become aprecursor successfully enter into westemdevelopment counties in LED Signagelighting industry.
HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting product ranges coverLED Flexible Strips,LED Linear Strip.LEDModule, LED Rigid bar, LED Ambient Lighhundreds of varieties, widely applied inChannal Letter,Shops sign, Lighting box,housing and accommodation, publicfacilities
OUR FACTORY
Rules of Naming Products: | |||||||||
Code | Color | Opration Voltage | Rated Current | Rated Power | Beam Angle | Luminous Flux | Wave length | Working Temp. | IP Rank |
I79 | RGBW | DC12V | 60mA | 0.72W | 120° | R:2lm | 620-625nm | -40℃-60℃ | IP 67 |
G: 5lm | 520-525nm | ||||||||
B:1.2lm | 460-467nm | ||||||||
W:10lm | 2800-3200K | ||||||||
