cabinet sign led module double side high efficiency

Feature：

◆ Double side lighting module for light box

◆ Special design Lens, better working in light box

◆ 95% transmittance lens,Wide view angle 170°

◆ High Power and High Efficiency design,upto 160lm/w

◆ Injection molding process,Waterproof:IP 65

◆ Special Opitical Lens,can reach ratio 1:2.5

◆ Suitable for 30-60cm depth light boxes

Description

1. Product Overview and Core Innovation

The LED Double Side Lighting Module represents a groundbreaking advancement in illumination technology, specifically engineered for dual-sided light boxes in commercial and outdoor settings. Unlike conventional single-sided modules, this product features bidirectional LED arrays that emit uniform light from both surfaces, ensuring consistent brightness across front and back panels without hotspots or dark zones. This innovation eliminates the need for multiple lighting units in traditional setups, reducing installation complexity and operational costs. Designed with sustainability in mind, the module leverages advanced materials and optical engineering to deliver superior performance in environments ranging from retail displays to high-traffic transit hubs. Its core purpose is to transform light boxes into dynamic, energy-efficient canvases for advertising and information dissemination, aligning with global trends toward smart, eco-friendly urban infrastructure.

2. Advanced Optical Lens Design for Optimal Light Diffusion

At the heart of this module lies a specially engineered optical lens, meticulously crafted to excel in light box applications. With an exceptional 95% transmittance rate-surpassing the industry standard of 80-90%-the lens minimizes light loss and maximizes luminance output, resulting in vivid, true-to-life color rendering even under bright ambient conditions. Complementing this is an ultra-wide 170-degree viewing angle, which ensures uniform illumination across expansive surfaces, eliminating edge darkening and providing clear visibility from oblique perspectives. This lens design incorporates micro-structured elements for asymmetric light distribution, balancing deep penetration for thick enclosures with broad horizontal dispersion. Consequently, users experience unparalleled visual consistency, making it ideal for applications where readability and aesthetic appeal are paramount, such as high-end storefronts or public information kiosks.

3. High-Efficiency Performance and Energy Savings

Engineered for maximum power output with minimal energy consumption, this module achieves a remarkable luminous efficacy of up to 160 lumens per watt (lm/W), significantly outperforming typical market offerings of 120-140 lm/W. This high-efficiency design translates to approximately 40% reduction in electricity usage compared to older technologies, contributing to substantial cost savings over the product's lifespan. The integration of high-power LEDs, coupled with optimized thermal management, ensures stable performance without degradation, even during extended operation. By reducing heat generation, the module lowers the risk of overheating in enclosed light boxes, extending both LED longevity and overall system reliability. Such efficiency not only supports corporate sustainability goals but also complies with stringent international energy regulations, positioning it as a future-proof solution for eco-conscious industries.

4. Robust Construction and Environmental Durability

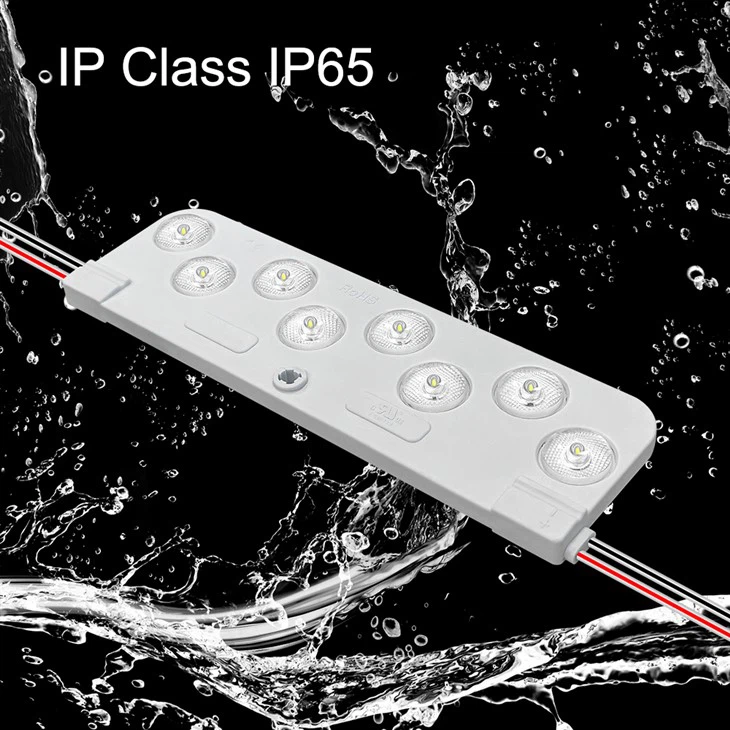

Built to withstand demanding operational conditions, the module employs injection molding processes that enhance structural integrity and precision. This manufacturing technique ensures seamless component fit and resistance to warping, even in variable temperatures. Crucially, the module boasts an IP65 waterproof and dustproof rating, providing comprehensive protection against harsh outdoor elements like rain, humidity, and particulate ingress. This rugged design makes it suitable for exposed installations, such as bus shelters or coastal billboards, where environmental stressors could compromise lesser products. Additionally, the use of high-grade polymers and metals in construction contributes to a lightweight yet durable form factor, facilitating easy handling and mounting while maintaining compliance with industrial safety standards for fire resistance and impact tolerance.

5. Optimized Beam Control for Deep Light Box Applications

A standout feature is the specialized optical lens capable of achieving a beam ratio of 1:2.5, which enables superior light penetration for deep or thick-walled light boxes ranging from 30cm to 60cm in depth. This ratio-exceeding the common 1:1.5-1:2 range-allows the module to project a narrow, focused beam vertically to illuminate the center of deep enclosures, while simultaneously spreading light widely horizontally. This dual-action eliminates the "tunnel effect" often seen with inferior modules, where central areas appear dim and uneven. As a result, fewer modules are required per installation, reducing material costs and assembly time. This capability is particularly valuable for custom architectural integrations, such as museum exhibits or transportation hubs, where consistent backlighting is essential for depth-intensive designs without sacrificing energy efficiency.

6. Versatile Applications and User Benefits in Real-World Scenarios

The module's design is tailored for seamless integration into diverse light box environments, offering tangible advantages across multiple sectors. In retail, it enhances dual-sided advertising displays-such as mall directories or product showcases-by providing uniform brightness that boosts consumer engagement and brand visibility. For public infrastructure, like subway station signs or roadside billboards, the IP65 rating and high efficiency ensure reliable operation in all weather, reducing maintenance frequency and downtime. Its suitability for 30-60cm depths makes it a perfect fit for premium applications such as luxury boutique windows or interactive kiosks, where deep panels require consistent, high-quality illumination. End-users benefit from lower lifecycle costs, simplified logistics (due to reduced component counts), and enhanced aesthetic flexibility, enabling creative designs that were previously impractical with older lighting technologies.

7. Conclusion and Future-Forward Recommendations

The LED Double Side Lighting Module sets a new benchmark for illumination in light box systems, combining cutting-edge optics, energy efficiency, and rugged durability to meet the evolving demands of modern advertising and architectural lighting. With its industry-leading specifications-including 95% transmittance, 170° viewing angle, 160 lm/W efficacy, IP65 protection, and 1:2.5 beam ratio-it addresses critical pain points like energy waste, uneven lighting, and environmental vulnerability. As urban landscapes and retail environments increasingly prioritize sustainability and smart technology, this module is poised for widespread adoption, with emerging trends pointing toward integration with IoT systems for adaptive lighting control. For optimal deployment, we recommend pairing it with compatible light box frames and professional calibration tools to unlock its full potential, ensuring a rapid return on investment through energy savings and reduced operational disruptions.
