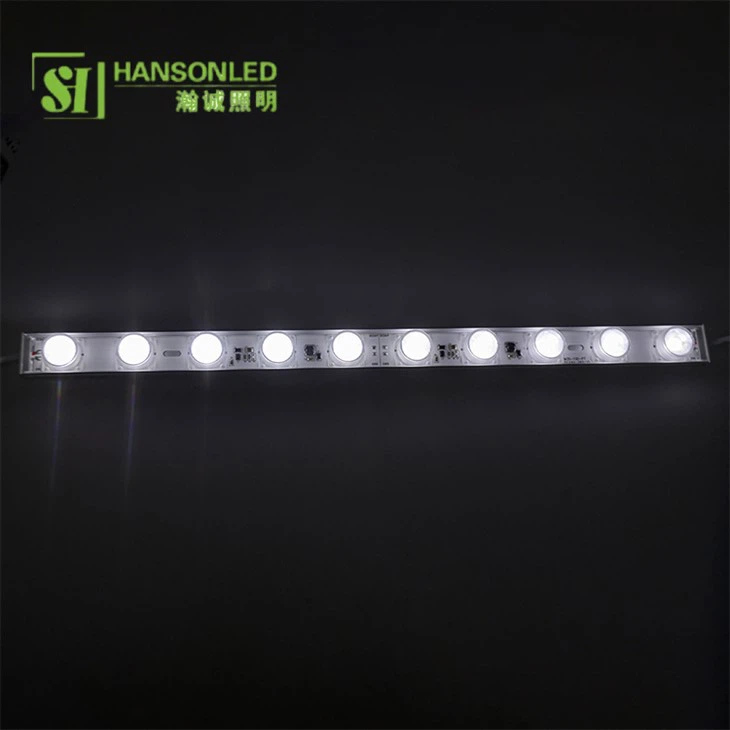

Waterproof LED side mount light bar
Feature
◆CCT: 2800K-10000k
◆Density: 10 LEDs/pcs
◆LED: 2835 LEDs
◆Input: DC24V
◆Luminous: 2260lm
◆Beaming angle: 15*20°
◆Power: 21.6W

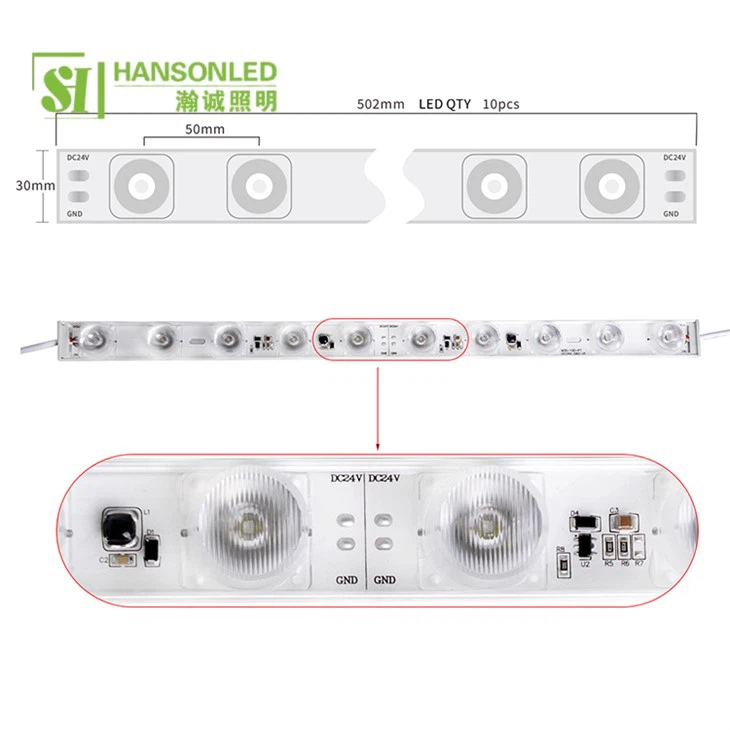

◆Size: 502mm*30mm*16mm
◆Weight: 217g
◆Certificate: CE ROHS
◆Waterproof class: IP67
◆Warranty: 3 years
Description
Technical Parameters
Feature
◆CCT: 2800K-10000k
◆Density: 10 LEDs/pcs
◆LED: 2835 LEDs
◆Input: DC24V
◆Luminous: 2260lm
◆Beaming angle: 15*20°
◆Power: 21.6W
◆Size: 502mm*30mm*16mm
◆Weight: 217g
◆Certificate: CE ROHS
◆Waterproof class: IP67
◆Warranty: 3 years
Description

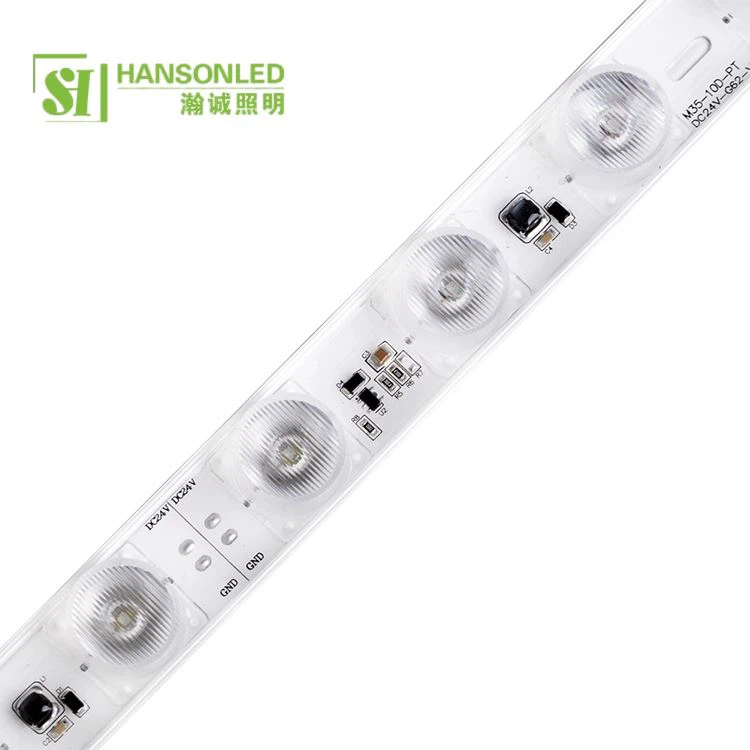

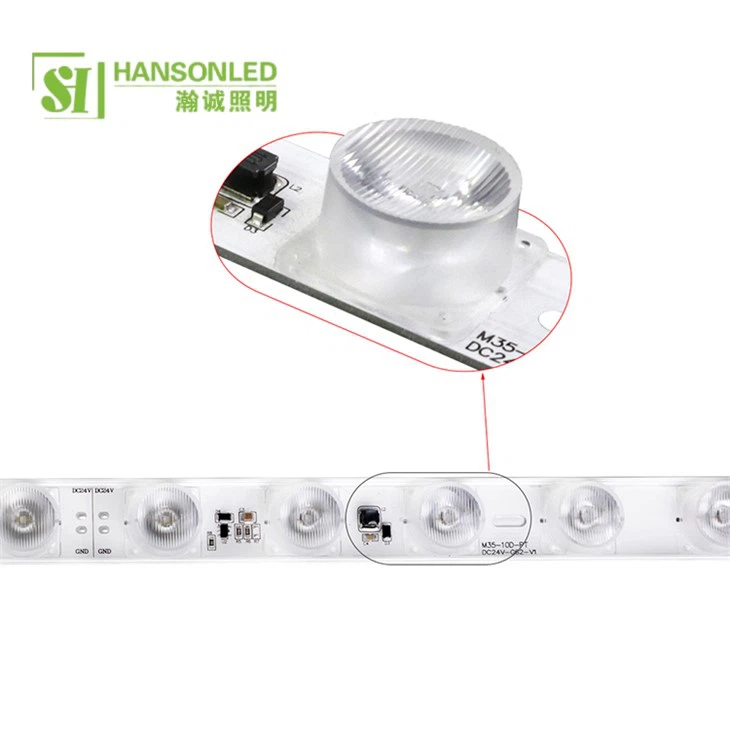

This LED light bar is made of 10 high-quality LED lamp beads and high-transmittance lenses integrated on an aluminum substrate with excellent heat dissipation. Its beam angle is 15*20°.
Its surface is covered with a layer of glue, and the outside is covered with a shell with excellent heat dissipation performance, and the waterproof level has reached IP67.
You can install it in a double-sided light box or some other scene.

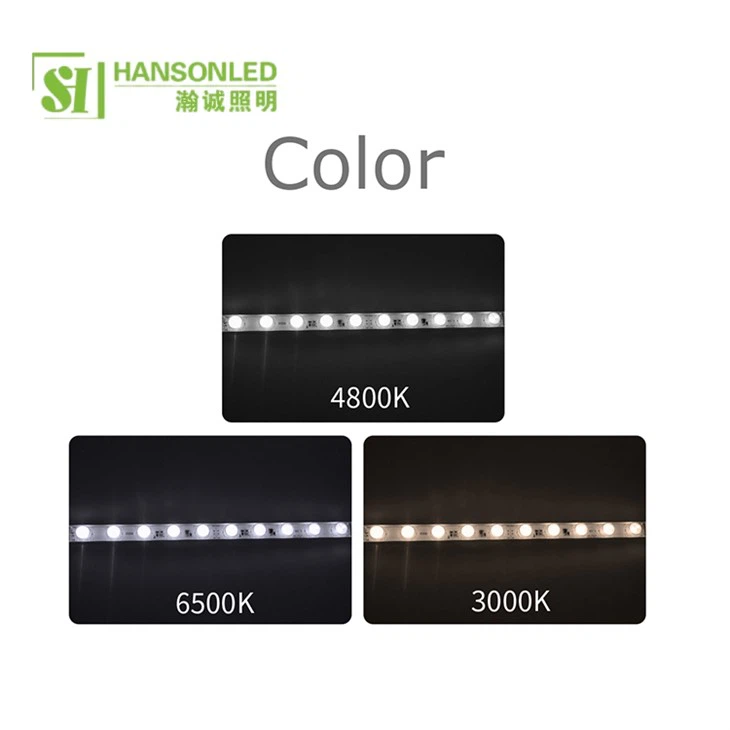

Its color temperature can also be customized by you, please contact us for MOQ.
Why choose us?
- We are a Chinese factory specializing in high quality Waterproof LED Side Light Bar products and professional services.
- Our company has a strong presence in Waterproof LED Side Light Bar 10 LEDs associations and organizations.
- At our factory, we use cutting-edge technology and the latest manufacturing techniques to create the best products possible.
- Our global network of partners allows us to provide our products to businesses in every corner of the world.
- Our team is committed to providing the highest level of customer service and support, no matter where you are located.
- Our vision is to create the technical level of the industry and create the core competitiveness facing the international market.
- Our dedication to quality, innovation, and excellence is the foundation of our success as a company.
- We combine our own characteristics, give full play to the subjective initiative of dealers, and adopt flexible sales strategies according to the characteristics of local markets.
- We are passionate about what we do, and we believe that our products and services speak for themselves.
- We absorb and learn from the excellent traditional culture to shape a corporate image with a distinctive sense of the times and individual characteristics.
Product Parameters
| Part Number | M35 |
| CCT(K) | 2800-10000 |
| Beaming Angle(°) | 15*20 |
| CRI(Ra) | ≥70 |
| Luminous Flux(lm) | 2260 |
| Voltage(V) | 24 |
| Power(W) | 21.6 |
| LED Type | 28.5 |
| LED Qty(pcs) | 10 |
| Dimension(mm) | 502*30*16 |
| Weight(g) | 217 |
| Protection Grade | IP67 |
Product Applications
LED Rigid bar usage scenarios
Company Certificate
ISO9001
PSE
FCC
CE
UL
Company Profile
HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise in Guangdongprovince, established in 2013 ,occupied area of 2,500 square meters factory.With senior engineers' professional expertise and continuing research, we have obtained national intellectuaproperty,The company has passed the "ISO 9001" international quality system certification" and CERoHS,PSE.UL,Reach certificate for dozens of our products. HansonLed owns the strongest R & D teamAccording to the customer's requirement. We customize the products or package for our clients
ISO 9001
2500㎡ Plant area
HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service First" for all our customersWith an entirely new brand image andcontinuing good customer service, we wilstrive to offer more excellent exclusiveproducts to support all our customers andwell-established distributors, makingHansonLed as the first-class brand in LEDsignage lighting industry.
Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hansonled has grown into themarket leader in LED products at signagearea. Meanwhile, we export our productsto North America South America.MiddleEast AND European countries, whichenjoys great popularity in their localmarkets.Hansonled has become aprecursor successfully enter into westemdevelopment counties in LED Signagelighting industry.
HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting product ranges coverLED Flexible Strips,LED Linear Strip.LEDModule, LED Rigid bar, LED Ambient Lighhundreds of varieties, widely applied inChannal Letter,Shops sign, Lighting box,housing and accommodation, publicfacilities
OUR FACTORY
Company Certificate
ISO9001
PSE
FCC
CE
UL
Company Profile
HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise in Guangdongprovince, established in 2013 ,occupied area of 2,500 square meters factory.With senior engineers' professional expertise and continuing research, we have obtained national intellectuaproperty,The company has passed the "ISO 9001" international quality system certification" and CERoHS,PSE.UL,Reach certificate for dozens of our products. HansonLed owns the strongest R & D teamAccording to the customer's requirement. We customize the products or package for our clients
![2025042109070118083[1].jpg](/uploads/allimg/20260125/1-26012516120RH.jpg)
ISO 9001
12 year Industry experience
2500㎡ Plant area
HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service First" for all our customersWith an entirely new brand image andcontinuing good customer service, we wilstrive to offer more excellent exclusiveproducts to support all our customers andwell-established distributors, makingHansonLed as the first-class brand in LEDsignage lighting industry.
Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hansonled has grown into themarket leader in LED products at signagearea. Meanwhile, we export our productsto North America South America.MiddleEast AND European countries, whichenjoys great popularity in their localmarkets.Hansonled has become aprecursor successfully enter into westemdevelopment counties in LED Signagelighting industry.
HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting product ranges coverLED Flexible Strips,LED Linear Strip.LEDModule, LED Rigid bar, LED Ambient Lighhundreds of varieties, widely applied inChannal Letter,Shops sign, Lighting box,housing and accommodation, publicfacilities
OUR FACTORY
Item No. | M35 |
Input Voltage | DC24V |
LED QTY | 10 pcs |
Power | 21.6W |
Luminous Flux | 2260Lm |
LED Type | 2835 |
CCT | 2800K-10000K |
Beaming angle | 15*20° |
Weight | 217g |
Size | 502*30*16 |
Waterproof class | IP67 |
