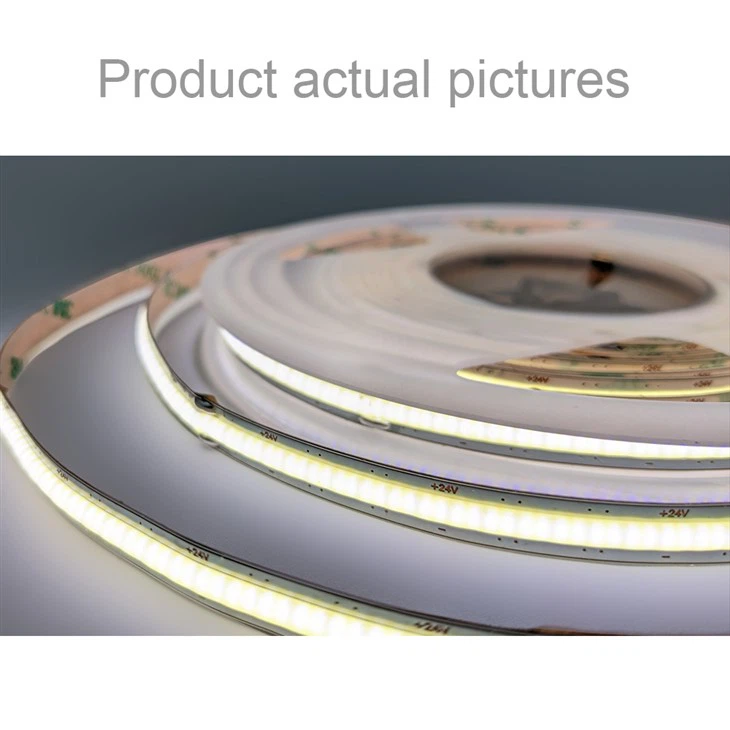

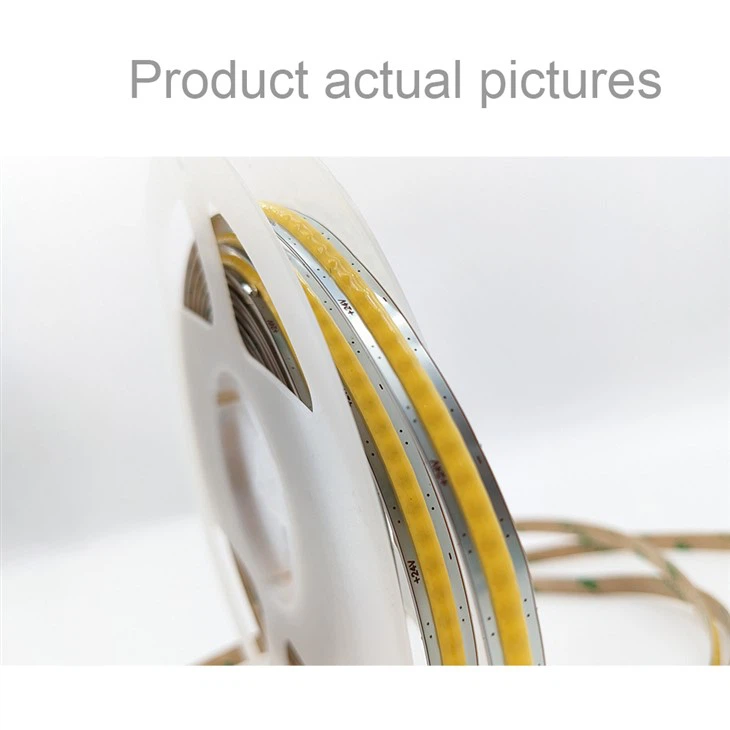

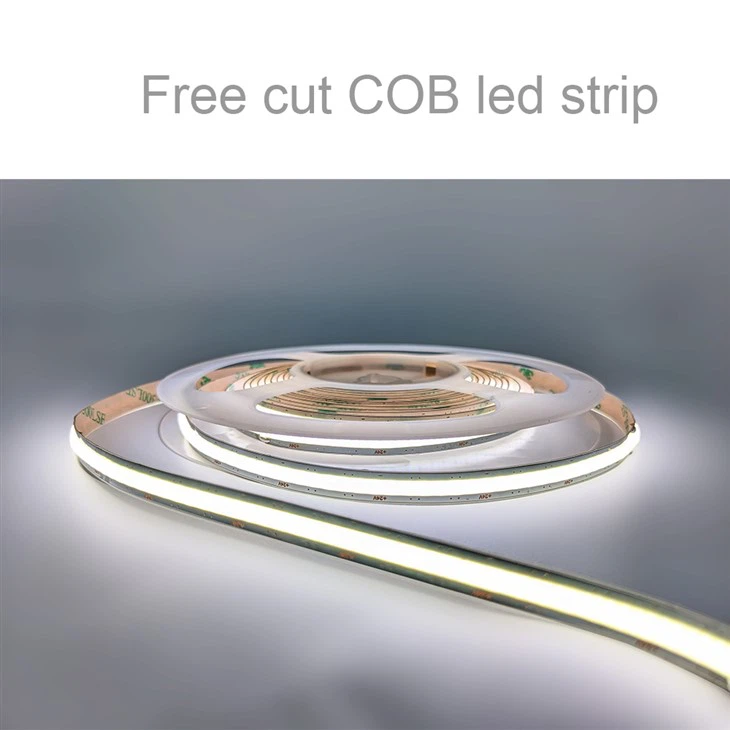

Free Cut COB Led Strip
Feature:
◆Chips-on-board design, dot free even without any profiles
◆Free-Cut design with a straight line of copper revealed on the surface, the ultimate solution of small cut
◆flexible installation in furniture lighting or decorative lighting.
◆Double layer 2oz PCB, for better flexibility, heat dissipation and voltage drop.
Description
Technical Parameters
Feature:
◆Chips-on-board design, dot free even without any profiles
◆Free-Cut design with a straight line of copper revealed on the surface, the ultimate solution of small cut
◆flexible installation in furniture lighting or decorative lighting.
◆Double layer 2oz PCB, for better flexibility, heat dissipation and voltage drop.
Description
Free cut COB LED strip is a state-of-the-art lighting solution, designed with a chips-on-board (COB) technology. This innovative technology results in dot-free and even lighting without requiring any additional profiles. This makes it an ideal solution for ambient lighting applications.
The most noteworthy feature of Free-cut COB LED strip is its ability to be easily installed in narrow spaces, making it an ideal choice for furniture lighting or decorative lighting applications. The new Free-cut design boasts a straight line of copper that is revealed on the surface. This allows for easy cutting and installation to fit any space.
To further enhance its performance, Free-cut COB LED strip is designed with a double-layer 2oz PCB, which helps to improve flexibility, heat dissipation, and voltage drop. This technology ensures that the product maintains optimal performance and produces the highest possible quality of light.
Free-cut COB LED strip has a low power consumption, making it energy-efficient, and helps to reduce your energy costs. You can use the strip in various settings including residential, commercial, and industrial settings.
Conclusion
Free-cut COB LED strip is a class-leading lighting solution that offers superior performance, easy installation and exceptional energy efficiency. Whether you are looking to create a warm and inviting atmosphere or want to add an architectural element to a space, this lighting strip is the ultimate solution for small cut, flexible installations in furniture lighting or decorative lighting.
Product Parameters
| Model | HS-LS-528D-COB |
| QTY/M | 60 |
| Storage Temperature | -20°C - 45°C |
| Width of pcb(mm) | 7.2 |
| Color | RGBW |
Rated Power(W/M) | 10 |
| Lm/M | 650-850 |
| Lm/W | 65-85 |
Product Applications
LED strip usage scenarios
Company Certificate
ISO9001
PSE
FCC
CE
UL
Company Profile
HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise in Guangdongprovince, established in 2013 ,occupied area of 2,500 square meters factory.With senior engineers' professional expertise and continuing research, we have obtained national intellectuaproperty,The company has passed the "ISO 9001" international quality system certification" and CERoHS,PSE.UL,Reach certificate for dozens of our products. HansonLed owns the strongest R & D teamAccording to the customer's requirement. We customize the products or package for our clients
ISO 9001
2500㎡ Plant area
HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service First" for all our customersWith an entirely new brand image andcontinuing good customer service, we wilstrive to offer more excellent exclusiveproducts to support all our customers andwell-established distributors, makingHansonLed as the first-class brand in LEDsignage lighting industry.
Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hansonled has grown into themarket leader in LED products at signagearea. Meanwhile, we export our productsto North America South America.MiddleEast AND European countries, whichenjoys great popularity in their localmarkets.Hansonled has become aprecursor successfully enter into westemdevelopment counties in LED Signagelighting industry.
HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting product ranges coverLED Flexible Strips,LED Linear Strip.LEDModule, LED Rigid bar, LED Ambient Lighhundreds of varieties, widely applied inChannal Letter,Shops sign, Lighting box,housing and accommodation, publicfacilities
OUR FACTORY
Company Certificate
ISO9001
PSE
FCC
CE
UL
Company Profile
HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise in Guangdongprovince, established in 2013 ,occupied area of 2,500 square meters factory.With senior engineers' professional expertise and continuing research, we have obtained national intellectuaproperty,The company has passed the "ISO 9001" international quality system certification" and CERoHS,PSE.UL,Reach certificate for dozens of our products. HansonLed owns the strongest R & D teamAccording to the customer's requirement. We customize the products or package for our clients
![2025042109070118083[1].jpg](/uploads/allimg/20260125/1-26012516120RH.jpg)
ISO 9001
12 year Industry experience
2500㎡ Plant area
HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service First" for all our customersWith an entirely new brand image andcontinuing good customer service, we wilstrive to offer more excellent exclusiveproducts to support all our customers andwell-established distributors, makingHansonLed as the first-class brand in LEDsignage lighting industry.
Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hansonled has grown into themarket leader in LED products at signagearea. Meanwhile, we export our productsto North America South America.MiddleEast AND European countries, whichenjoys great popularity in their localmarkets.Hansonled has become aprecursor successfully enter into westemdevelopment counties in LED Signagelighting industry.
HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting product ranges coverLED Flexible Strips,LED Linear Strip.LEDModule, LED Rigid bar, LED Ambient Lighhundreds of varieties, widely applied inChannal Letter,Shops sign, Lighting box,housing and accommodation, publicfacilities
OUR FACTORY
| Item NO. | HS-LS-528D-COB | |||||||||
| 产品型号 | ||||||||||
| Code | HS-LS-528D-COB | |||||||||
| 产品代号 | ||||||||||
| Input Voltage | 12Vdc | |||||||||
| 输入电压 | ||||||||||
| Power | 10W/m | |||||||||
| 功率 | ||||||||||
| CRI | Ra 80+ | Ra90+ | ||||||||
| 显色指数 | ||||||||||
| CCT | 2700K | 3000K | 4000K | 6500K | 2700K | 3000K | 4000K | 6500K | ||
| 色温 | ||||||||||
| Lm/M | 650 | 700 | 750 | 850 | 500 | 550 | 600 | 700 | ||
| 亮度 | ||||||||||
| Lm/W | 65 | 70 | 75 | 85 | 50 | 55 | 60 | 70 | ||
| 光效 | ||||||||||

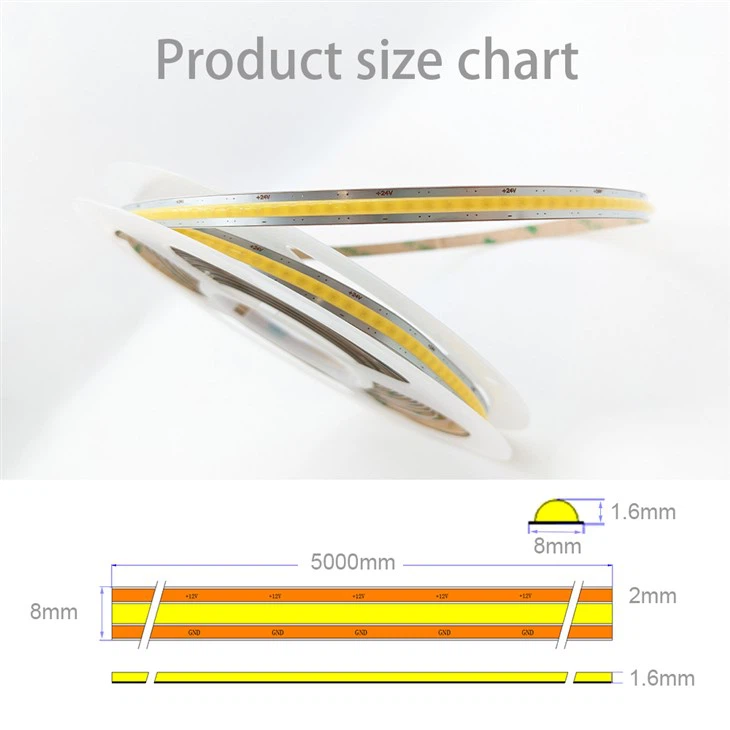

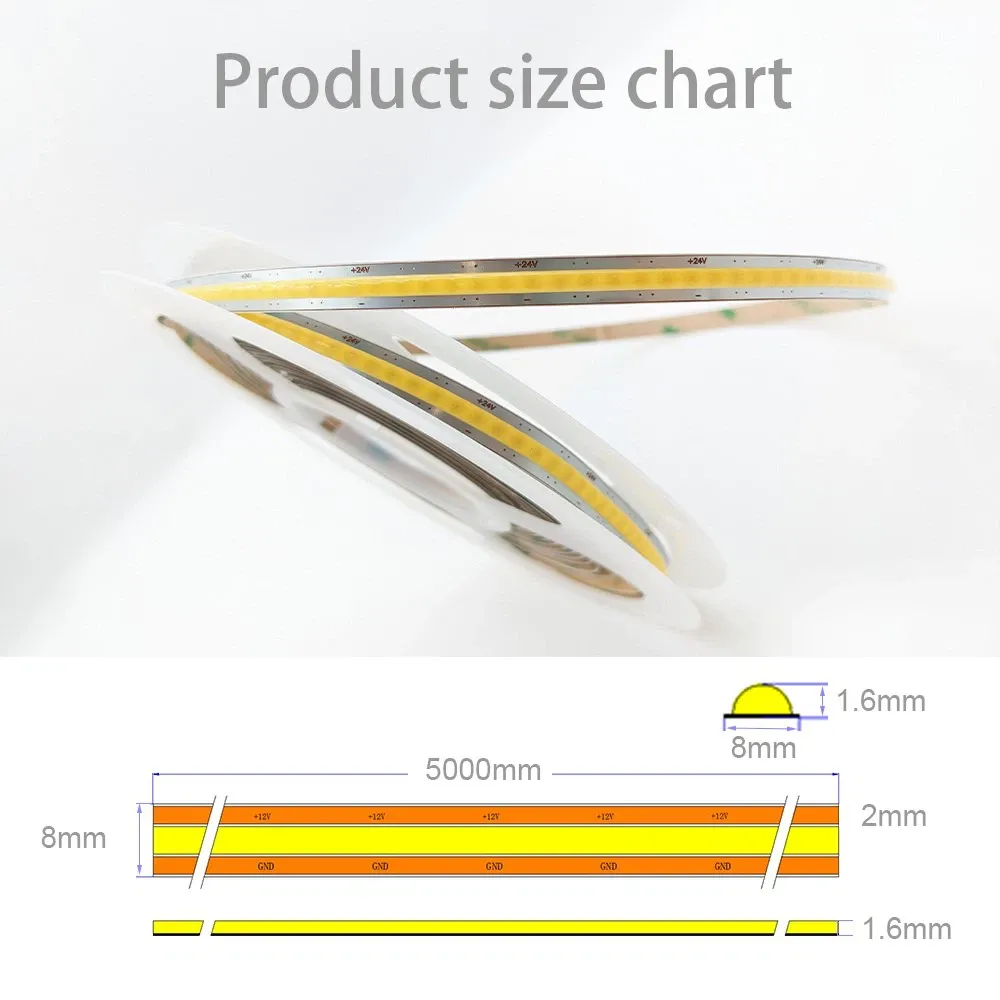

| Size | W 8mm | H 1.6mm | L5,000mm | |||||||||
| 尺寸 | ||||||||||
| Cutting Length | FREE/自由裁剪 | |||||||||
| 裁剪长度 | ||||||||||
| Lifespan | 50,000 H | |||||||||
| 工作时长 | ||||||||||
| Working Temperature | -20°C - 40°C | |||||||||
| 工作温度 | ||||||||||
| Storage Temperature | -20°C - 45°C | |||||||||
| 储存温度 | ||||||||||
| Warranty | 3 years | |||||||||
| 质保 | ||||||||||
