1. Ultra Narrow only 5mm width Pcb
2. CRI>80/90/95
3. One bin for production; uniform light
4. 1led per cut, only 8.3mm per cut.
5. CE,RoHS Approved ,5 years warranty
6. Unqiue and strong PCB design
7. Customized Label and packing

Send Inquiry

Description

Technical Parameters

Feature：

1. Ultra Narrow only 5mm width Pcb

2. CRI>80/90/95

3. One bin for production; uniform light

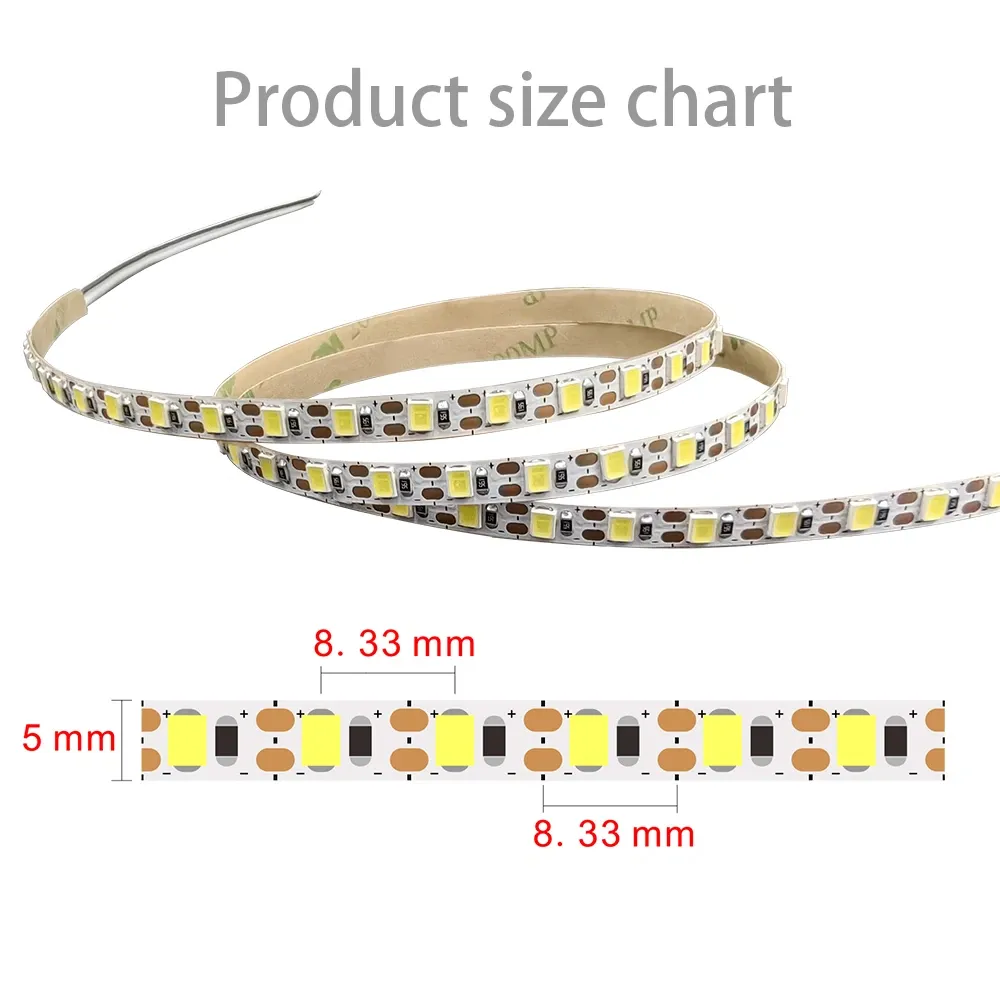

4. 1led per cut, only 8.3mm per cut.

5. CE,RoHS Approved ,5 years warranty

6. Unqiue and strong PCB design

7. Customized Label and packing

Description

Our 5mm 1led cut LED strip is the perfect solution for those looking for ultra-narrow, high-CRI lighting options. This strip boasts a PCB width of only 5mm, making it an incredibly compact choice for any lighting project. With a CRI rating of 80/90/95, you can be assured that your lighting will maintain its color accuracy and consistency. And with only one bin used for production, you can expect a uniform light across your entire project.

Our 5mm 1led cut LED strip is incredibly easy to use, with only one LED per cut. Each cut measures only 8.3mm, making it simple to fit into any space you may need. And with CE and RoHS approved, you can trust in the safety and quality of our product.

We take pride in our unique and strong PCB design, which is specifically tailored to ensure optimal lighting outcomes. Plus, with our customizable labeling and packing options, your branding needs can be seamlessly integrated into your lighting project.

we stand by our product and offer a 5-year warranty to ensure your complete confidence in our product.

FAQ

1. What is the width of the PCB of this LED strip light?

A: The PCB width is only 5mm, which is ultra narrow.

2. What is the CRI value of this LED strip light?

A: The CRI value options are 80/90/95, ensuring high color rendering performance.

3. Is the light uniform across the whole strip?

A: Yes, our LED strip light uses only one bin for production, guaranteeing uniform light with every cut.

4. How long is each LED unit of the strip?

A: Each LED unit is only 8.3mm, making the strip easy to cut and customize.

5. Does this LED strip light comply with regulations?

A: Yes, it is CE and RoHS approved, with a 5-year warranty.

6. What is special about the PCB design?

A: Our PCB design is unique and strong, ensuring stable performance and durability.

7. Can the label and packaging be customized?

A: Yes, we offer customized label and packaging services to meet your specific needs.

Product Parameters

Model	HS-1C-2835-120D-5MM-WW/CW
QTY/M	120
DC Voltage(V)	12/24
Width of pcb(mm)	5

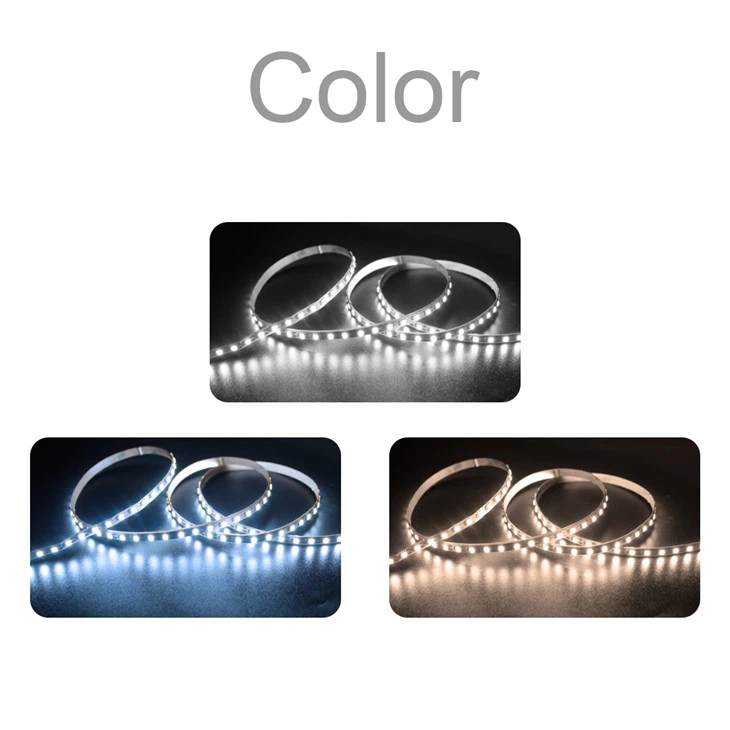

Color	WW/CW
Rated Power(W/M)	8
Lm/M	880/960
Lm/W	110/120

Product Applications

LED Strip usage scenarios
