1led Per Cut Zigzag Strip
1. 2835 Gold wire+copper fixture LEDs
2. CRI>80/90/95
3. One bin for production; uniform light
4. 1 Led per cut, to meet different length requirement
5. CE,RoHS Approved ,5 years warranty
6. Unqiue and strong PCB design
7. Customized Label and packing
Description
Technical Parameters
Feature：
1. 2835 Gold wire+copper fixture LEDs
2. CRI>80/90/95
3. One bin for production; uniform light
4. 1 Led per cut, to meet different length requirement
5. CE,RoHS Approved ,5 years warranty
6. Unqiue and strong PCB design
7. Customized Label and packing
Description

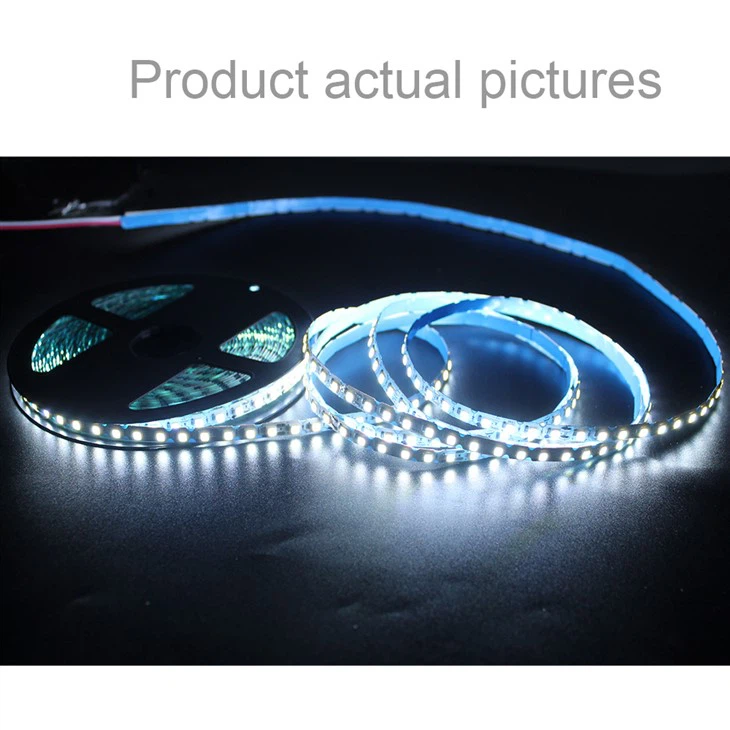

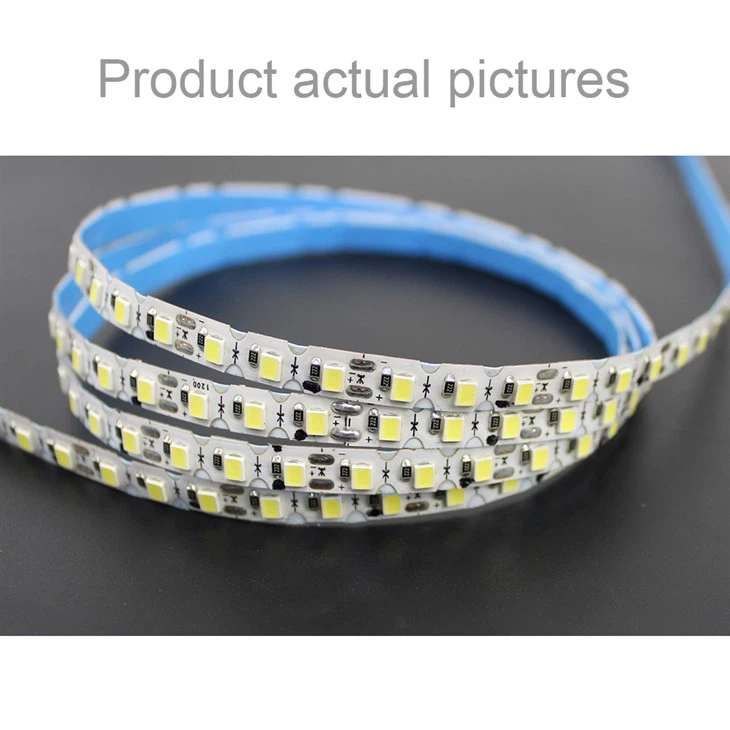

Our 1led per cut zigzag strip is designed with high-quality components to create uniform lighting solutions for any application. With 2835 Gold wire and copper fixture LEDs, this product provides exceptional brightness combined with a CRI of up to 95. Each LED strip is made with one bin for production to ensure consistency throughout each strip.

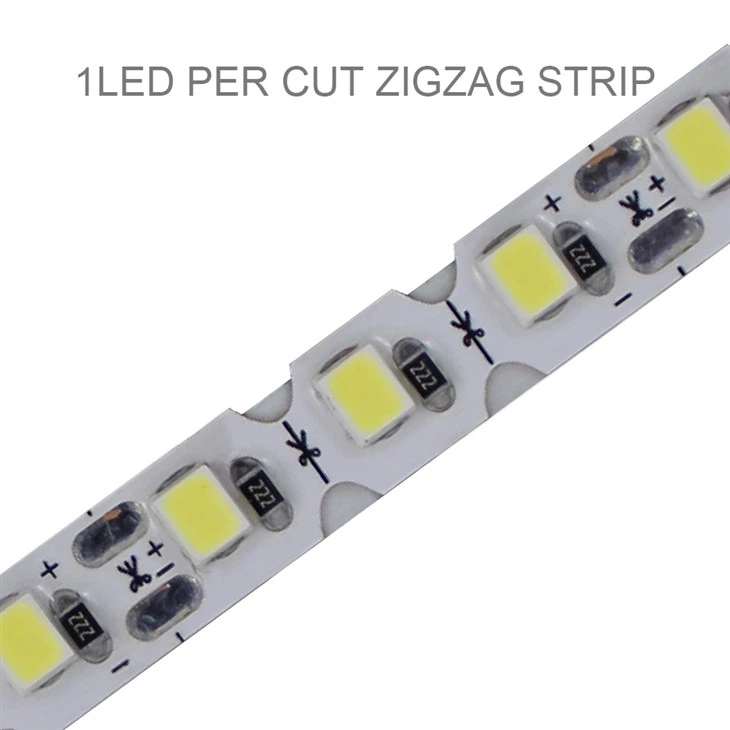

These LED strips are cuttable and can be customized to meet any length requirement with one LED per cut. Each LED is mounted on a unique and robust PCB design providing stability and reliability.
The LED strips are CE and RoHS certified, and with a 5-year warranty, you can trust in the quality and longevity of the product. Additionally, it comes with customized labeling and packaging options tailored to meet your business needs.
Our 1led per cut zigzag strip is the perfect solution for illuminating any space, from commercial and industrial settings to residential applications. Illuminate your environment with confidence and reliability by choosing our 1led per cut zigzag strip.
FAQ
1. What kind of LEDs are used in this product?
This product uses 2835 Gold wire+copper fixture LEDs.
2. What is the CRI of this product?
The CRI of this product can be customized to be greater than 80, 90, or 95.
3. Is the light uniform across all the LEDs?
Yes, this product is produced with one bin, ensuring a uniform light across all the LEDs.
4. Can the LED strips be cut to different lengths?
Yes, each LED is cut separately to meet different length requirements.
5. Does this product have any certifications or warranties?
This product is CE and RoHS approved and comes with a 5-year warranty.
6. What sets the PCB design of this product apart?
This product has a unique and strong PCB design.
7. Can the labeling and packaging of this product be customized?
Yes, the labeling and packaging of this product can be customized according to individual preferences.
Product Parameters
| Model | HS-S-2835-120D-WW/PW/CW/R/G/B-1C |
| QTY/M | 120 |
| DC Voltage(V) | 12/24 |

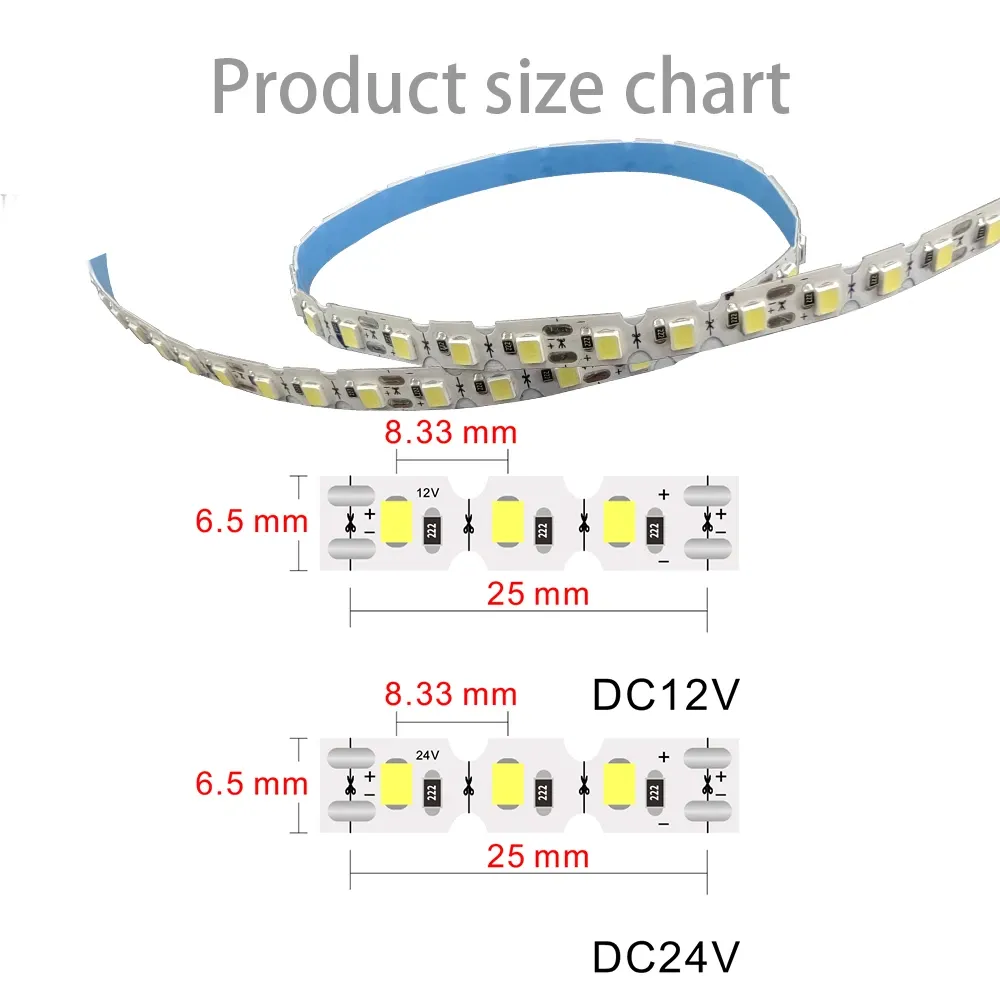

| Width of pcb(mm) | 6.5 |

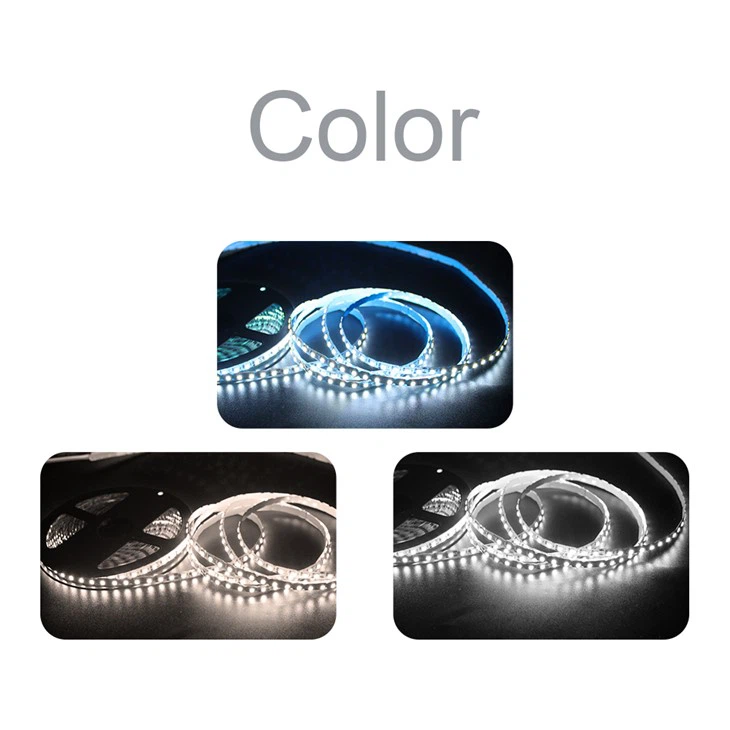

| Color | WW/PW/CW/R/G/B |
Rated Power(W/M) | 10 |
| Lm/M | 1000/1100/950/220/620/110 |
| Lm/W | 100/110/95/22/62/11 |
Product Applications
LED Strip usage scenarios
Company Certificate
ISO9001
PSE
FCC
CE
UL
Company Profile
HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise in Guangdongprovince, established in 2013 ,occupied area of 2,500 square meters factory.With senior engineers' professional expertise and continuing research, we have obtained national intellectuaproperty,The company has passed the "ISO 9001" international quality system certification" and CERoHS,PSE.UL,Reach certificate for dozens of our products. HansonLed owns the strongest R & D teamAccording to the customer's requirement. We customize the products or package for our clients
ISO 9001
2500㎡ Plant area
HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service First" for all our customersWith an entirely new brand image andcontinuing good customer service, we wilstrive to offer more excellent exclusiveproducts to support all our customers andwell-established distributors, makingHansonLed as the first-class brand in LEDsignage lighting industry.
Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hansonled has grown into themarket leader in LED products at signagearea. Meanwhile, we export our productsto North America South America.MiddleEast AND European countries, whichenjoys great popularity in their localmarkets.Hansonled has become aprecursor successfully enter into westemdevelopment counties in LED Signagelighting industry.
HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting product ranges coverLED Flexible Strips,LED Linear Strip.LEDModule, LED Rigid bar, LED Ambient Lighhundreds of varieties, widely applied inChannal Letter,Shops sign, Lighting box,housing and accommodation, publicfacilities
OUR FACTORY
Company Certificate
ISO9001
PSE
FCC
CE
UL
Company Profile
HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise in Guangdongprovince, established in 2013 ,occupied area of 2,500 square meters factory.With senior engineers' professional expertise and continuing research, we have obtained national intellectuaproperty,The company has passed the "ISO 9001" international quality system certification" and CERoHS,PSE.UL,Reach certificate for dozens of our products. HansonLed owns the strongest R & D teamAccording to the customer's requirement. We customize the products or package for our clients
![2025042109070118083[1].jpg](/uploads/allimg/20260125/1-26012516120RH.jpg)
ISO 9001
12 year Industry experience
2500㎡ Plant area
HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service First" for all our customersWith an entirely new brand image andcontinuing good customer service, we wilstrive to offer more excellent exclusiveproducts to support all our customers andwell-established distributors, makingHansonLed as the first-class brand in LEDsignage lighting industry.
Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hansonled has grown into themarket leader in LED products at signagearea. Meanwhile, we export our productsto North America South America.MiddleEast AND European countries, whichenjoys great popularity in their localmarkets.Hansonled has become aprecursor successfully enter into westemdevelopment counties in LED Signagelighting industry.
HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting product ranges coverLED Flexible Strips,LED Linear Strip.LEDModule, LED Rigid bar, LED Ambient Lighhundreds of varieties, widely applied inChannal Letter,Shops sign, Lighting box,housing and accommodation, publicfacilities
OUR FACTORY
Model | QTY/M | DC Voltage(V) | Width of pcb(mm) | CCT(K/nm) | Rated Power (W/M) | Lm/M | Lm/W |
HS-S-2835-120D-WW-1C | 120 | 12/24 | 6.5 | 2800-3200 | 10 | 1000 | 100 |
HS-S-2835-120D-PW-1C | 120 | 12/24 | 6.5 | 6000-6500 | 10 | 1100 | 110 |
HS-S-2835-120D-CW-1C | 120 | 12/24 | 6.5 | 10000-12000 | 10 | 950 | 95 |
HS-LS-2835-120D-R-1C | 120 | 12/24 | 6.5 | Red | 10 | 220 | 22 |
HS-LS-2835-120D-G-1C | 120 | 12/24 | 6.5 | Green | 10 | 620 | 62 |
HS-LS-2835-120D-B-1C | 120 | 12/24 | 6.5 | Blue | 10 | 110 | 11 |
