ZIG ZAG LED Strip 72 LED
Feature：

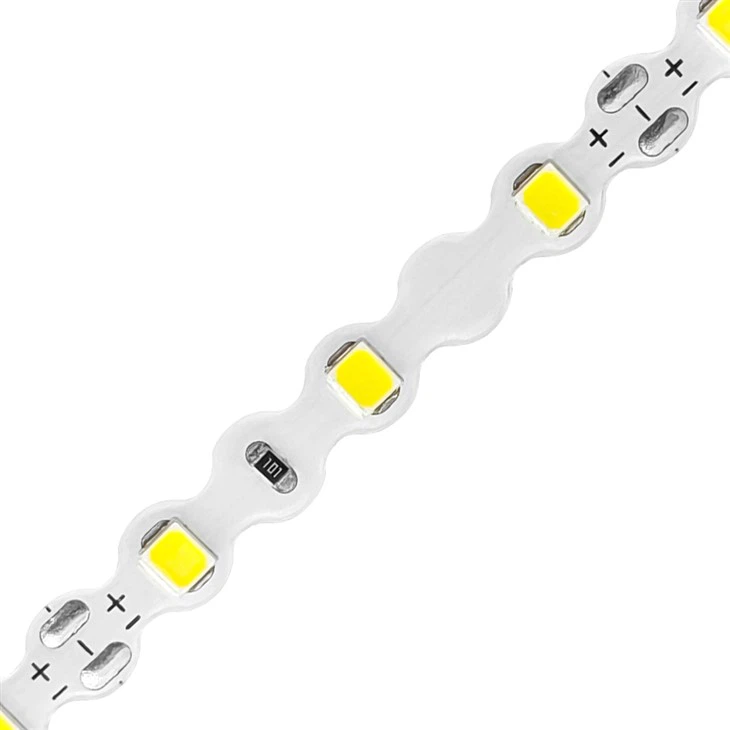

1.Bendable led strip ,72led/m
2.CRI>80/90/95
3. One bin for production; uniform light
4. Can be cut short, to meet different length requirement
5. CE,RoHS UL Approved ,5 years warranty
6. Waterproof ,IP54
Description
Technical Parameters
Feature：
1.Bendable led strip ,72led/m
2.CRI>80/90/95
3.One bin for production; uniform light
4.Can be cut short, to meet different length requirement
5.CE,RoHS UL Approved ,5 years warranty
6.Waterproof ,IP54
7.Use for Acrylic Channel Letter.
8.Customized Label and packing
Description
1. This bendable LED strip features 72 LEDs per meter, offering excellent flexibility to adapt to various curved or irregular surfaces. The high LED density ensures uniform light distribution without obvious dark spots, delivering consistent brightness for diverse installation scenarios.
2. Boasting a CRI (Color Rendering Index) of over 80, 90, or 95, the strip reproduces colors accurately and naturally. It adopts one-bin production process, strictly controlling LED parameters to eliminate light inconsistency, guaranteeing homogeneous light output across the entire strip.
3. The LED strip supports on-site cutting to meet different length requirements. Pre-set cutting points ensure easy and precise trimming without damaging the circuit, making it highly versatile for installations of varying sizes.
4. With CE, RoHS, and UL certifications, the strip complies with international safety and environmental standards. It also comes with a 5-year warranty for reliable use. Featuring IP54 waterproof rating, it resists splashing water and dust, suitable for both indoor and semi-outdoor environments.
5. Specifically designed for Acrylic Channel Letter applications, the strip provides optimal light transmission to highlight letter contours. Additionally, it offers customized label and packaging services, catering to personalized branding and packaging needs of different clients.

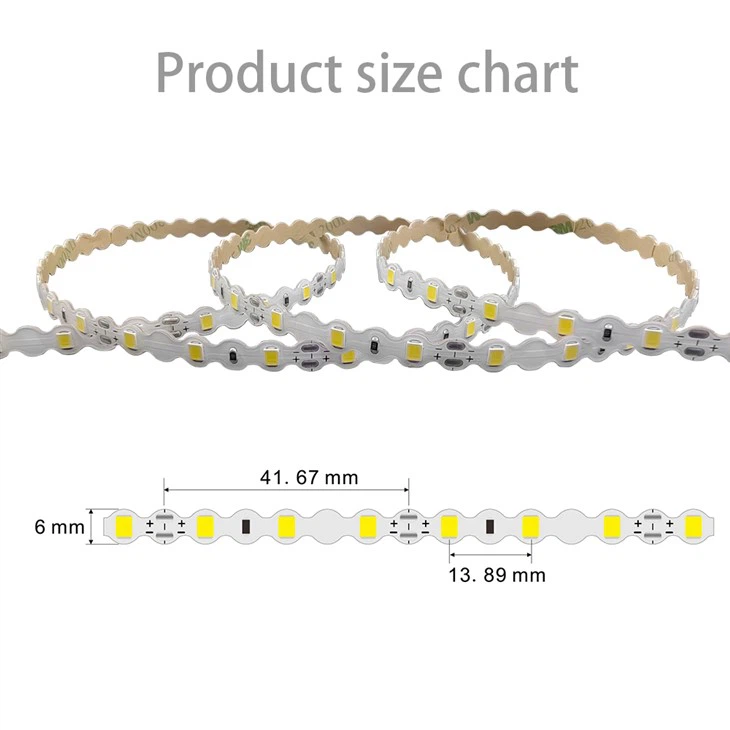

Product Parameters
| Model | HS-S-2835-72D-WW/PW/CW/R/G/B-P-SC |
| QTY/M | 72 |
| DC Voltage(V) | 12 |
| Width of pcb(mm) | 6 |
| Color | WW/PW/CW/R/G/B |
Rated Power(W/M) | 9.6 |
| Lm/M | 860/960/910/210/600/105 |
| Lm/W | 90/100/95/22/62/11 |

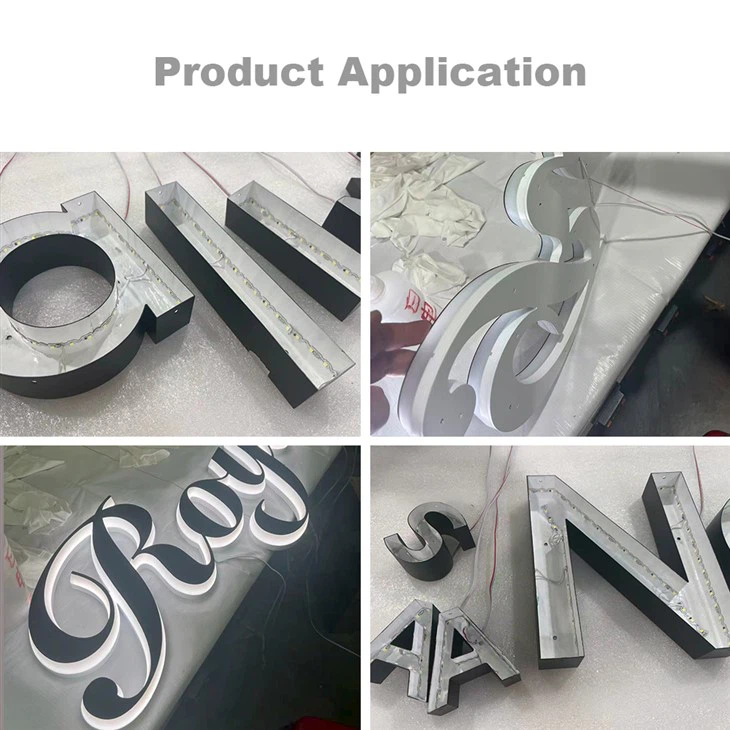

Product Applications
LED module usage scenarios
Company Certificate
ISO9001
PSE
FCC
CE
UL
Company Profile
HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise in Guangdongprovince, established in 2013 ,occupied area of 2,500 square meters factory.With senior engineers' professional expertise and continuing research, we have obtained national intellectuaproperty,The company has passed the "ISO 9001" international quality system certification" and CERoHS,PSE.UL,Reach certificate for dozens of our products. HansonLed owns the strongest R & D teamAccording to the customer's requirement. We customize the products or package for our clients
ISO 9001
2500㎡ Plant area
HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service First" for all our customersWith an entirely new brand image andcontinuing good customer service, we wilstrive to offer more excellent exclusiveproducts to support all our customers andwell-established distributors, makingHansonLed as the first-class brand in LEDsignage lighting industry.
Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hansonled has grown into themarket leader in LED products at signagearea. Meanwhile, we export our productsto North America South America.MiddleEast AND European countries, whichenjoys great popularity in their localmarkets.Hansonled has become aprecursor successfully enter into westemdevelopment counties in LED Signagelighting industry.
HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting product ranges coverLED Flexible Strips,LED Linear Strip.LEDModule, LED Rigid bar, LED Ambient Lighhundreds of varieties, widely applied inChannal Letter,Shops sign, Lighting box,housing and accommodation, publicfacilities
OUR FACTORY
Company Certificate
ISO9001
PSE
FCC
CE
UL
Company Profile
HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise in Guangdongprovince, established in 2013 ,occupied area of 2,500 square meters factory.With senior engineers' professional expertise and continuing research, we have obtained national intellectuaproperty,The company has passed the "ISO 9001" international quality system certification" and CERoHS,PSE.UL,Reach certificate for dozens of our products. HansonLed owns the strongest R & D teamAccording to the customer's requirement. We customize the products or package for our clients
![2025042109070118083[1].jpg](/uploads/allimg/20260125/1-26012516120RH.jpg)
ISO 9001
12 year Industry experience
2500㎡ Plant area
HansonLed always stick to the businessphilosophy of "Quality First, CustomerFirst, Service First" for all our customersWith an entirely new brand image andcontinuing good customer service, we wilstrive to offer more excellent exclusiveproducts to support all our customers andwell-established distributors, makingHansonLed as the first-class brand in LEDsignage lighting industry.
Continuous quality improvement capabilityand the ability to quickly respond to marketdemands, Hansonled has grown into themarket leader in LED products at signagearea. Meanwhile, we export our productsto North America South America.MiddleEast AND European countries, whichenjoys great popularity in their localmarkets.Hansonled has become aprecursor successfully enter into westemdevelopment counties in LED Signagelighting industry.
HansonLed is foucs on the LED lightingSource products.At present, HansonLed'sindoor LED lighting product ranges coverLED Flexible Strips,LED Linear Strip.LEDModule, LED Rigid bar, LED Ambient Lighhundreds of varieties, widely applied inChannal Letter,Shops sign, Lighting box,housing and accommodation, publicfacilities
OUR FACTORY
Model | QTY/M | DC Voltage(V) | Width of pcb(mm) | CCT(K/nm) | Rated Power (W/M) | Lm/M | Lm/W |
HS-S-2835-72D-WW-P-SC | 72 | 12 | 6 | 2800-3200 | 9.6 | 860 | 90 |
HS-S-2835-72D-PW-P-SC | 72 | 12 | 6 | 6000-6500 | 9.6 | 960 | 100 |
HS-S-2835-72D-CW-P-SC | 72 | 12 | 6 | 10000-12000 | 9.6 | 910 | 95 |
HS-LS-2835-72D-R-P-SC | 72 | 12 | 6 | Red | 9.6 | 210 | 22 |
HS-LS-2835-72D-G-P-SC | 72 | 12 | 6 | Green | 9.6 | 600 | 62 |
HS-LS-2835-72D-B-P-SC | 72 | 12 | 6 | Blue | 9.6 | 105 | 11 |
