What is the IP rating of a waterproof Pixel LED Strip?

What is the IP rating of a waterproof Pixel LED Strip?

As a dedicated supplier of Pixel LED Strips, I often get asked about the IP rating of our waterproof products. Understanding the IP rating is crucial for anyone looking to use these LED strips in various environments, as it directly relates to the strip's ability to withstand dust and water.

What is an IP Rating?

The IP rating, or Ingress Protection rating, is an international standard (IEC 60529) that classifies the degree of protection provided by an electrical enclosure against the intrusion of solid objects (like dust) and liquids (such as water). It consists of two digits. The first digit represents the protection against solids, and the second digit represents the protection against liquids.

The first digit ranges from 0 to 6:

• 0: No protection against solids.
• 1: Protection against solid objects larger than 50mm (e.g., a hand).
• 2: Protection against solid objects larger than 12mm (e.g., a finger).
• 3: Protection against solid objects larger than 2.5mm (e.g., a tool).
• 4: Protection against solid objects larger than 1mm (e.g., a wire).
• 5: Dust - protected. Limited ingress of dust is permitted, but it should not enter in sufficient quantity to interfere with the satisfactory operation of the equipment.
• 6: Dust - tight. No dust ingress is allowed.

The second digit ranges from 0 to 9:

• 0: No protection against liquids.
• 1: Protection against vertically falling drops of water, such as condensation.
• 2: Protection against direct sprays of water up to 15 degrees from the vertical.
• 3: Protection against direct sprays of water up to 60 degrees from the vertical.
• 4: Protection against splashing water from any direction.
• 5: Protection against water jets from any direction.
• 6: Protection against powerful water jets, such as those from a fire - hose.
• 7: Protection against the effects of immersion in water between 15cm and 1m for a limited time.
• 8: Protection against long - term immersion in water under conditions specified by the manufacturer.
• 9: Protection against high - pressure, high - temperature water jets, often used in industrial cleaning.

IP Ratings of Our Pixel LED Strips

Our company offers a wide range of Pixel LED Strips, each with different IP ratings to suit various applications.

1Led Cut Led Strip

The 1Led Cut Led Strip is a highly flexible and customizable option. For indoor use where there is no risk of water exposure, we offer models with an IP20 rating. This means they are protected against fingers but have no protection against water. However, for outdoor or damp environments, we have versions with an IP65 rating. These strips are dust - tight and can withstand water jets from any direction, making them suitable for outdoor signage, landscape lighting, and other applications where they may be exposed to rain or splashes.

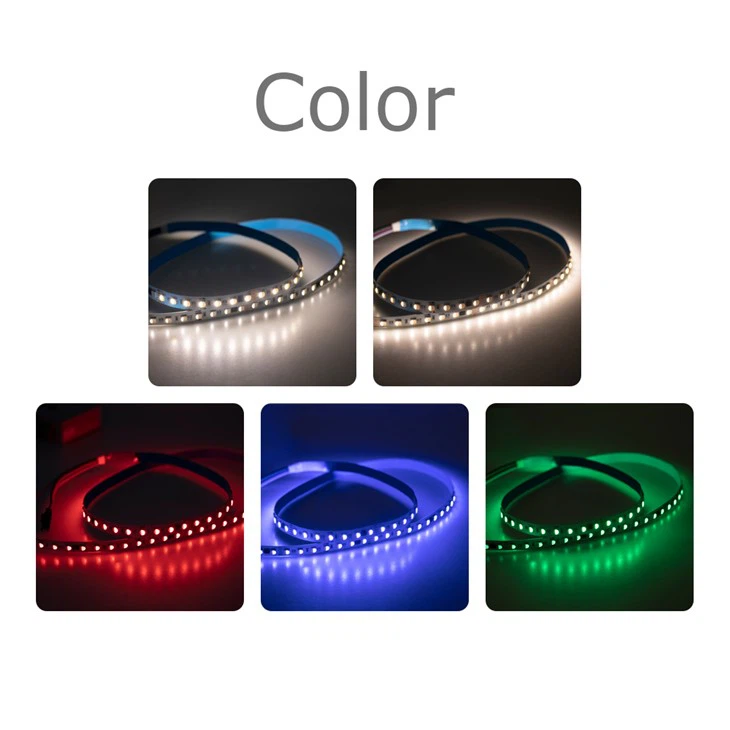

Smart RGB LED Strip

The Smart RGB LED Strip is designed for both home and commercial use. For normal indoor installations, an IP20 rated strip is sufficient. But for more challenging environments such as bathrooms, kitchens, or outdoor patios, we provide IP67 rated strips. The IP67 rating ensures that the strip is dust - tight and can be immersed in water up to 1m for a limited time without damage. This makes it ideal for creating underwater lighting effects in fish tanks or for lighting around swimming pools.

IC 5V LED Strip

The IC 5V LED Strip is a popular choice for low - voltage applications. Our standard indoor version has an IP20 rating. For outdoor use, we offer IP68 rated strips. The IP68 rating means that these strips can be immersed in water for an extended period, even at greater depths than the IP67 rated ones, as defined by our specific product specifications. This makes them suitable for marine applications, such as boat lighting or underwater illumination in large aquariums.

Factors Affecting the IP Rating

Several factors can affect the actual performance of the IP rating of a Pixel LED Strip.

Installation Quality: If the LED strip is not installed correctly, it can compromise the IP rating. For example, if the joints are not properly sealed during installation, water or dust can enter the strip, reducing its protection level.

Material Quality: The quality of the materials used in the construction of the LED strip also plays a crucial role. High - quality silicone encapsulation for waterproofing is more likely to maintain the IP rating over time compared to lower - quality materials that may crack or degrade.

Environmental Conditions: Extreme temperatures, UV exposure, and chemical exposure can all affect the integrity of the IP protection. For example, prolonged exposure to direct sunlight can cause the silicone coating to degrade, reducing its ability to keep out water and dust.

Choosing the Right IP Rating for Your Application

When choosing a Pixel LED Strip, it is essential to consider the environment in which it will be used.

Indoor Use: For most indoor applications such as home lighting, office decoration, or retail displays, an IP20 rated strip is usually sufficient. These strips are cost - effective and easy to install.

Outdoor Use: If the LED strip will be exposed to the elements, you should choose a higher IP rating. For areas with occasional rain or splashes, an IP65 rated strip is a good choice. For areas that may be submerged in water, such as around pools or in fountains, an IP67 or IP68 rated strip is necessary.

Maintenance of Pixel LED Strips with Different IP Ratings

Even with a high IP rating, proper maintenance is essential to ensure the long - term performance of the Pixel LED Strip.

For IP20 rated strips, regular cleaning with a dry or slightly damp cloth is usually sufficient to keep them looking good.

For IP65, IP67, and IP68 rated strips, you should still avoid using abrasive cleaners that could damage the waterproof coating. Periodically inspect the joints and connections to ensure they are still sealed properly. If the strip has been exposed to harsh chemicals or extreme conditions, it may be necessary to clean it with a mild detergent and water solution.

Conclusion

Understanding the IP rating of a waterproof Pixel LED Strip is vital for making the right choice for your lighting needs. As a supplier, we are committed to providing high - quality LED strips with accurate IP ratings to ensure that our customers get the best performance in their specific applications.

If you are interested in purchasing our Pixel LED Strips or have any questions about IP ratings and which product is right for you, please feel free to contact us for more information and to start a procurement discussion. We look forward to helping you find the perfect lighting solution for your project.

References

• International Electrotechnical Commission (IEC). (2013). IEC 60529: Degrees of protection provided by enclosures (IP Code).
