What is the maximum length of a connected COB LED strip?

Hey there! As a COB LED strip supplier, I often get asked about the maximum length of a connected COB LED strip. It's a crucial question, especially for those planning large - scale lighting projects. So, let's dive right in and figure this out.

Understanding COB LED Strips

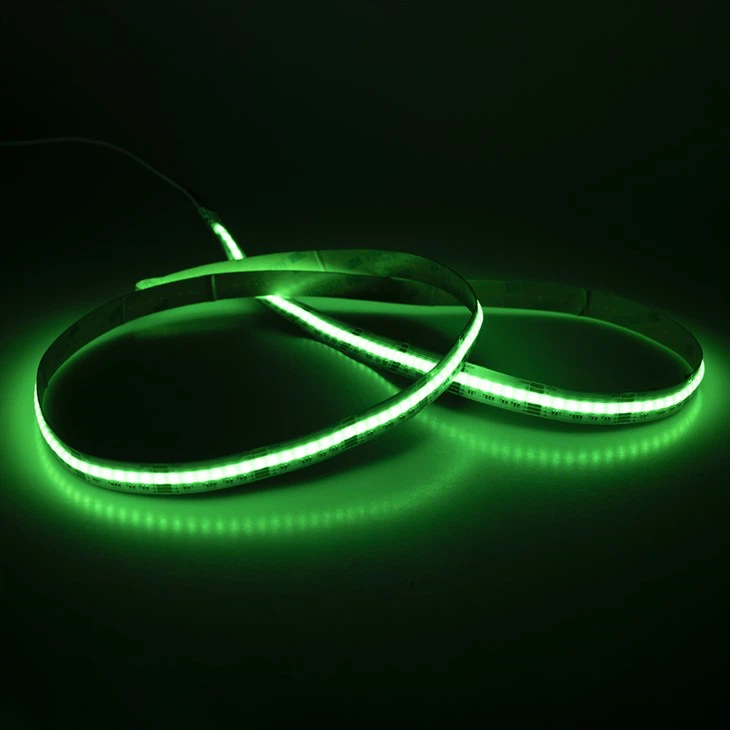

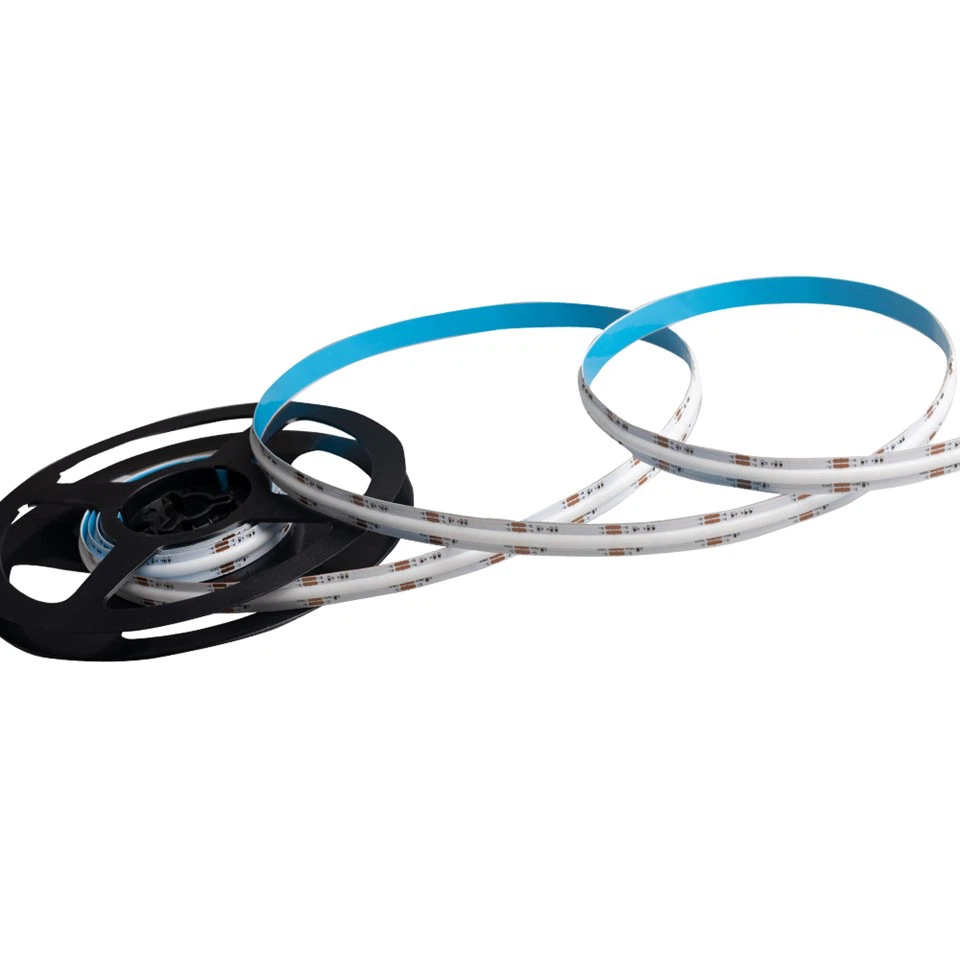

First off, what are COB LED strips? COB stands for Chip - on - Board. Unlike traditional LED strips where individual LEDs are placed on a circuit board, COB technology mounts multiple LED chips directly onto a substrate. This results in a more even light output, better heat dissipation, and a slimmer profile. You can check out our RGB COB LED Strip and RGBW COB LED Strip to see the variety of options we offer.

Factors Affecting the Maximum Length

There are several factors that determine how long you can connect a COB LED strip.

Voltage Drop

Voltage drop is one of the biggest culprits. As electricity flows through the strip, the resistance in the copper traces on the circuit board causes a reduction in voltage. The longer the strip, the more significant the voltage drop. When the voltage drops too much, the LEDs at the far end of the strip will be dimmer than those closer to the power source. To mitigate this, you need to use a power supply with a higher voltage or add power injection points along the strip.

Heat Dissipation

COB LEDs generate heat, and if the heat isn't dissipated properly, it can affect the performance and lifespan of the LEDs. Longer strips can accumulate more heat, especially if they are installed in an enclosed space. Adequate ventilation and heat - sinking materials are essential for longer strips. For example, if you're using our COB LED Tape in a long run, make sure it has enough space around it to release heat.

Power Supply Capacity

The power supply you use also plays a vital role. Each COB LED strip has a certain power consumption per meter. You need to make sure your power supply can handle the total power required for the length of the strip you want to connect. If the power supply is undersized, it won't be able to provide enough power, leading to poor performance or even damage to the LEDs.

Calculating the Maximum Length

To calculate the maximum length of a COB LED strip, you need to consider the voltage drop and power supply capacity.

Let's say you have a COB LED strip that operates at 12V and consumes 12W per meter. Your power supply is a 12V, 60W unit. First, calculate the maximum length based on the power supply capacity. Divide the power supply wattage by the wattage per meter: 60W / 12W per meter = 5 meters.

Now, let's consider the voltage drop. You can use a voltage drop calculator, which takes into account the resistance of the copper traces on the strip, the current flowing through it, and the length. For most standard COB LED strips, a voltage drop of more than 10% is considered unacceptable.

Practical Examples

Let's look at some real - world scenarios.

Residential Lighting

In a home lighting project, say you want to install a COB LED strip under your kitchen cabinets. You might be looking at a run of around 3 - 5 meters. In this case, a 12V power supply can usually handle the load without significant voltage drop. You can easily connect the strip in one continuous length and enjoy a nice, even light under your cabinets.

Commercial Lighting

For a commercial space like a store or a showroom, you might need much longer strips, maybe 10 - 20 meters or more. Here, you'll need to pay close attention to voltage drop and power supply capacity. You may need to use a 24V power supply and add power injection points every few meters to ensure consistent brightness.

Tips for Long - Run Installations

If you're planning a long - run COB LED strip installation, here are some tips:

• Use a Higher Voltage: As mentioned earlier, using a 24V power supply instead of 12V can reduce the voltage drop over long distances.
• Add Power Injection Points: This involves connecting the power supply at multiple points along the strip to maintain a consistent voltage.
• Choose the Right Heat Sink: Make sure your strip has a proper heat sink to keep the LEDs cool.
• Test the Installation: Before finalizing the installation, test the strip with a temporary power supply to check for any issues like uneven brightness or overheating.

Conclusion

So, what's the maximum length of a connected COB LED strip? Well, there's no one - size - fits - all answer. It depends on various factors like voltage drop, heat dissipation, and power supply capacity. With proper planning and the right equipment, you can achieve long - run installations that provide consistent, high - quality lighting.

If you're interested in our COB LED strips for your project, whether it's a small residential job or a large commercial one, don't hesitate to reach out. We're here to help you figure out the best solution for your specific needs. Let's have a chat about your project and see how we can make your lighting vision a reality.
