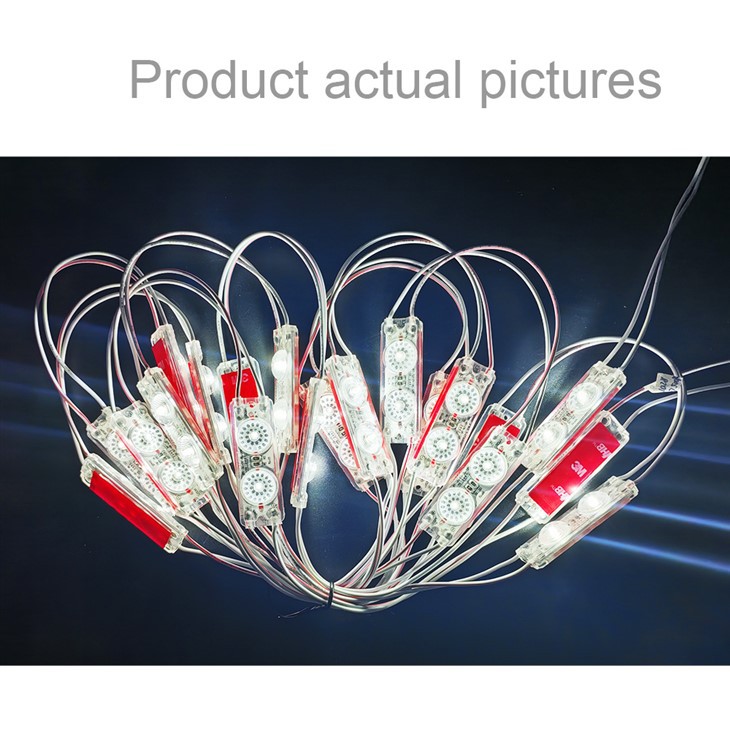

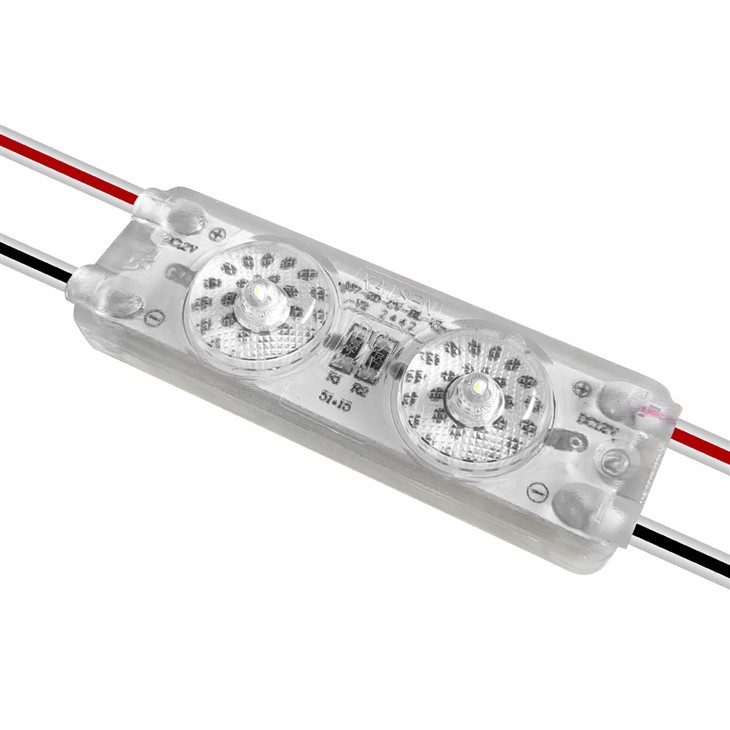

Black Dot LED Module

Feature：

◆ Transprent housing design, better reflection in slim light box

◆ Special design with black dot,can work at slim letter and box

◆ 95% transmittance lens,Wide view angle 170°

◆ High efficiency module,upto 170lm/w

◆ 170degree view angle,with less qty in square meter

◆ Injection molding process,Waterproof:IP 65

◆ Energy Class reach to "C"

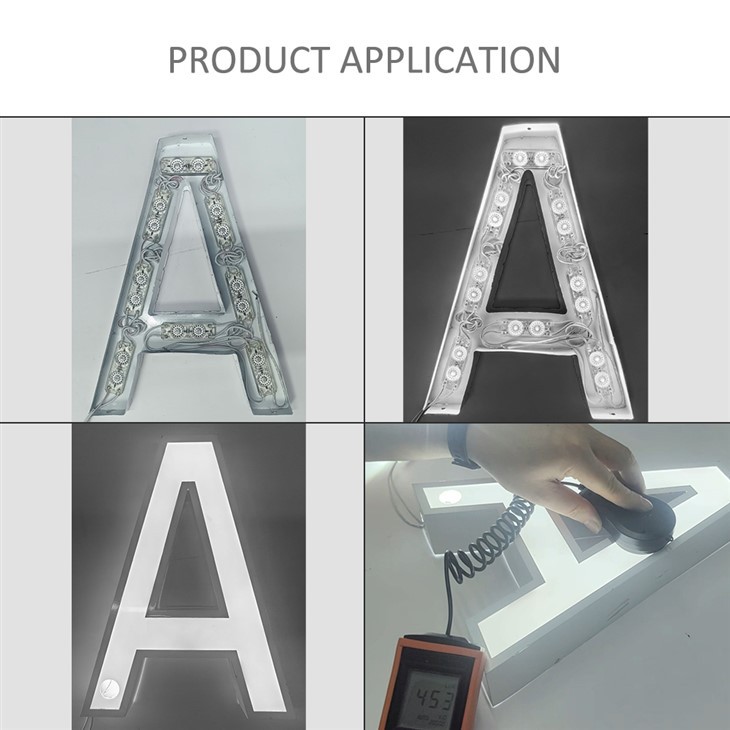

◆ Suitable for 5-12 cm height channel letters and light boxes backlighting etc.

Description

Black Dot LED Module - The Ultimate Illumination Solution for Slim Light Boxes and Channel Letters

Welcome to our revolutionary range of LED modules that are specially designed to cater to all your signage-related lighting requirements. Our transparent housing design is not only innovative but also provides better reflection in slim light boxes, enhancing the overall visibility and legibility of your brand messages.

Our state-of-the-art LED modules feature a special design with black dots that enable them to work at slim letters and boxes, making them the perfect choice for small channel letters, outline lighting, and backlighting in lightboxes. Moreover, our 95% transmittance lens ensures a wide viewing angle of 170°, making it easy for your customers to read your brand messages from a distance.

We understand the importance of energy-efficiency in today's world, and that's why our LED modules boast a high efficiency rating, reaching up to 170lm/w. Additionally, the 170-degree view angle ensures that you need less quantity in a square meter, effectively reducing your overall lighting costs.

Our Black Dot LED Module are built to last, using the injection molding process, which makes them waterproof and suitable for outdoor use with an IP 65 rating. Moreover, our modules are energy-efficient, with an energy class rating of "C."

These LED modules are perfect for your 5-12cm height channel letters and lightboxes, providing an optimal lighting scheme for your brand messages. With our reliable and efficient LED modules, you can rest assured that your brand will always shine bright, even in the darkest of locations.

FAQ

1) What is the special design with black dot in these LED modules?

Answer: The black dot design allows these modules to work in slim letters and boxes.

2) What is the view angle range for these LED modules?

Answer: The wide view angle for these modules is 170°, providing a broad and even light distribution in illuminated signs.

3) How efficient are these LED modules?

Answer: The high efficiency module can achieve up to 170lm/w, ensuring bright and visible illumination.

4) Is the energy efficiency of these LED modules high?

Answer: Yes, the energy class of these LED modules is rated as "C".

5) What is the suitable channel letter or light box height for these LED modules?

Answer: These LED modules are suitable for 5-12 cm height channel letters and light boxes backlighting.

6) How many LED modules are needed for a square meter of illuminated sign?

Answer: With a wide view angle of 170 degrees, a lesser quantity of LED modules is required for a square meter, allowing for cost savings.

7) How are these LED modules manufactured?

Answer: These LED modules are produced through injection molding process, ensuring their waterproof rating of IP65.

8) Can these LED modules be used outdoors?

Answer: Yes, with their high waterproof rating, these LED modules are designed for outdoor use.

9) What type of housing is used for these LED modules?

Answer: These LED modules are designed with a transparent housing, allowing for better reflection in slim light boxes.

10) How much light is transmitted through these LED modules?

Answer: These LED modules have a 95% transmittance lens, ensuring bright and even illumination in illuminated signs.

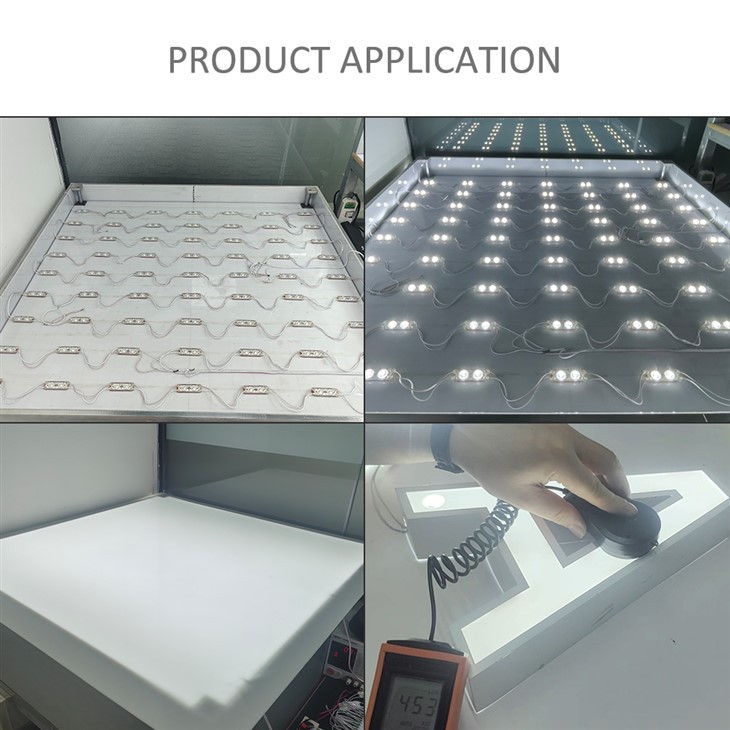

LED module usage scenarios
