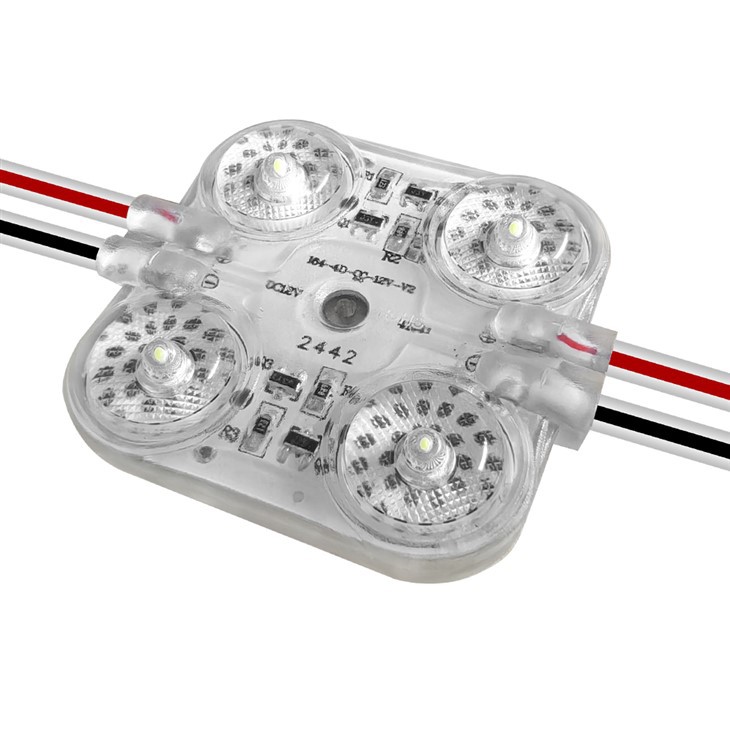

4 Light Black Dot LED Module

Feature：

◆ Transprent housing design, better reflection in slim light box

◆ Special design with black dot,can work at 2.5cm depth letter and box

◆ 95% transmittance lens,Wide view angle 170°

◆ The exposed Aluminum plate for heat dissipation

◆ Energy Class reach to "C"

◆ Special Opitical Lens,can reach ratio 1:2.5

◆ Suitable for 10-25cm height channel letters and light boxes backlighting etc.

Description

LED module features a transparent housing design that provides better reflection in slim light boxes. The special design with black dots allows for it to work at 2.5cm depth letter and box, making it highly adaptable to various types of signage. The 95% transmittance lens provides a wide viewing angle of 170°, making it suitable for use in larger signs and boxes. The exposed aluminum plate ensures effective heat dissipation and long-lasting performance.

Black Dot LED Module module has a high energy rating of "C," making it an energy-efficient solution for light box and channel letter backlighting. The special optical lens included in the module can reach a ratio of 1:2.5, providing excellent brightness and illumination.

Black Dot LED Module module is suitable for 10-25cm height channel letters and light boxes backlighting and is carefully designed to meet your requirements for light sources in signage. Our module is excellent for retrofits, upgrades, and new installations that require high-performance and energy-saving modules.

Whether you're retrofitting an existing sign or creating a new one, our LED module is an optimal solution for optimal performance and compatibility. We understand the importance of quality standards, and our LED module meets all industry and safety requirements.

FAQ

Q1. What is the housing design of the slim light box?

A. The housing design of the slim light box is transparent, which helps in better reflection.

Q2. What is the special feature of the design with black dot?

A. The special feature of the design with black dot is that it can work at a depth of 2.5cm for both letters and box.

Q3. What is the view angle of the lens used in the slim light box?

A. The lens used in the slim light box has a view angle as wide as 170° and a transmittance rate of up to 95%.

Q4. How is heat dissipation managed in the slim light box?

A. The slim light box comes with an exposed Aluminum plate that helps in the dissipation of heat.

Q5. What is the energy class reached by the slim light box?

A. The energy class reached by the slim light box is "C".

Q6. What is the ratio reached by the special optical lens used in the slim light box?

A. The special optical lens used in the slim light box can reach a ratio of 1:2.5.

Q7. What are the suitable dimensions for the slim light box?

A. The slim light box is suitable for a height of 10-25cm channel letters and light boxes for backlighting, and others.

Q8. What are the benefits of using a slim light box?

A. Some benefits of using a slim light box include high transmittance, a wide view angle, heat dissipation, and energy efficiency.

Q9. How can I install the slim light box?

A. The installation process of the slim light box may vary depending on the model. Please refer to the installation manual or consult with a professional for guidance.

Q10. Are there any maintenance tips for the slim light box?

A. Regular cleaning of the slim light box with a soft cloth and mild detergent can help maintain its appearance. Also, please avoid using abrasive cleaners or solvents that may damage the light box.

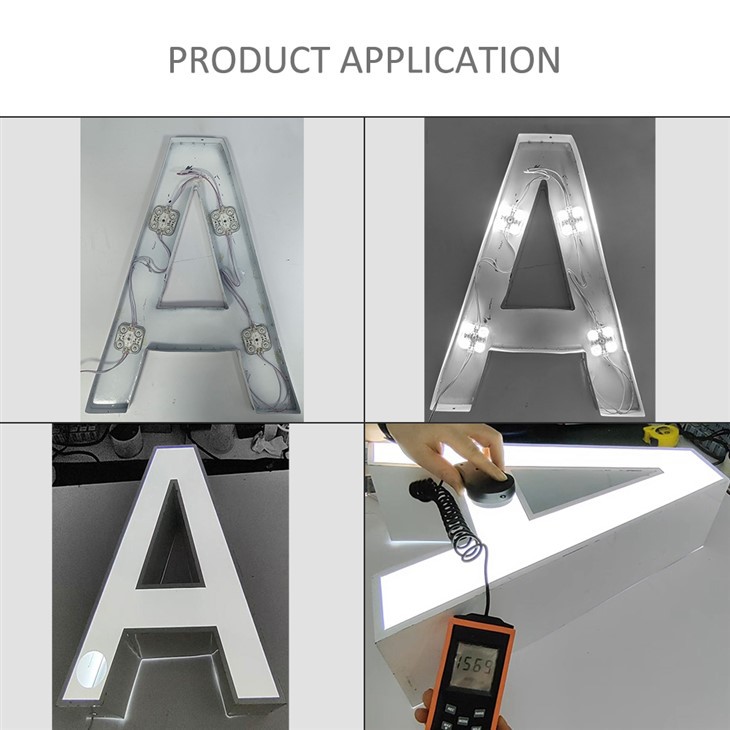

LED module usage scenarios
