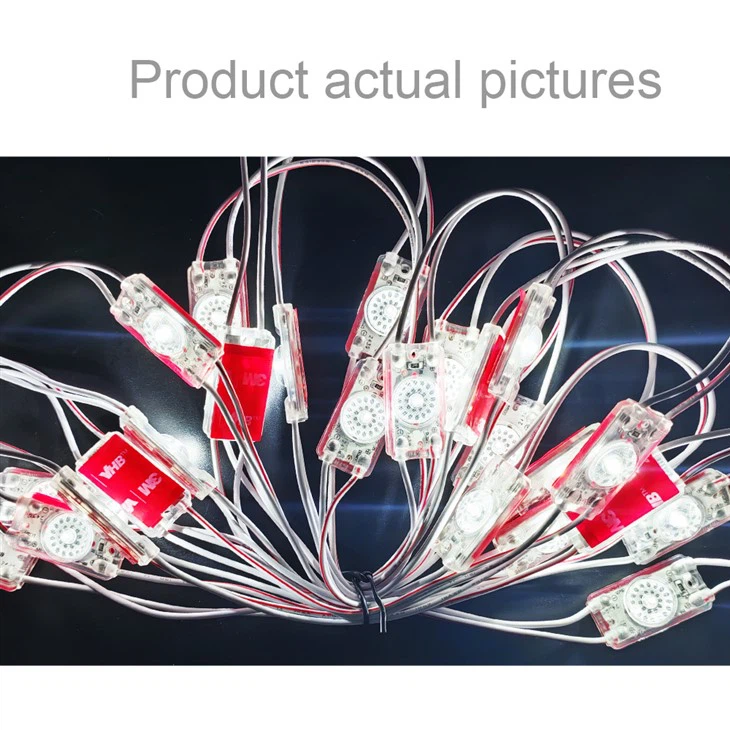

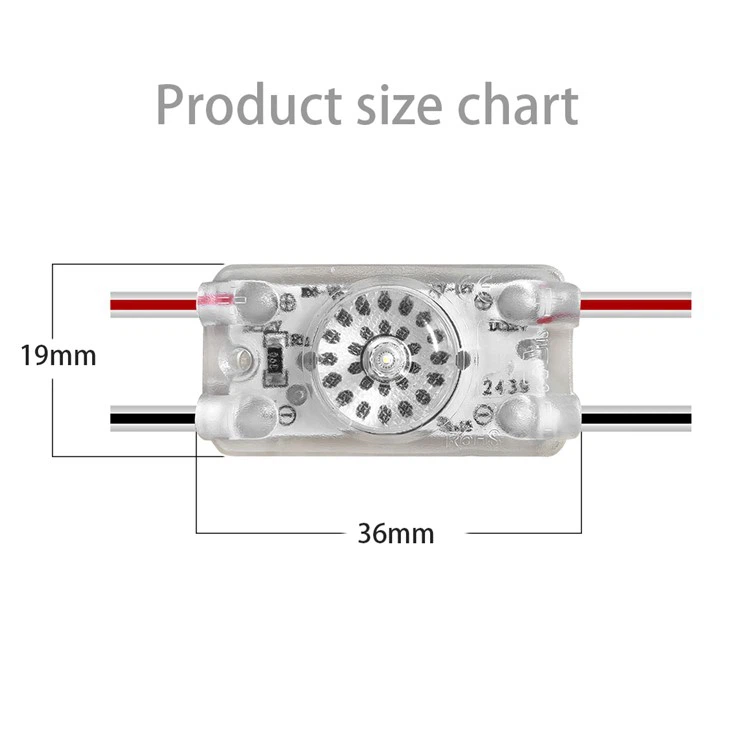

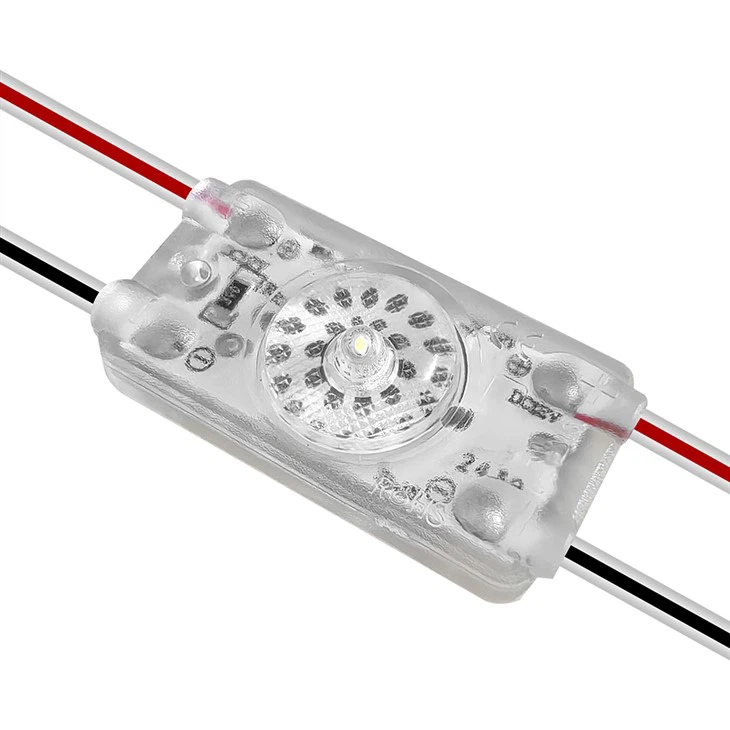

Black Dot LED Module

Feature：

◆ Transprent housing design, better reflection in slim light box

◆ Special design with black dot,can work at 2.5cm depth letter and box

◆ 95% transmittance lens,Wide view angle 170°

◆ The Aluminum plate for heat dissipation

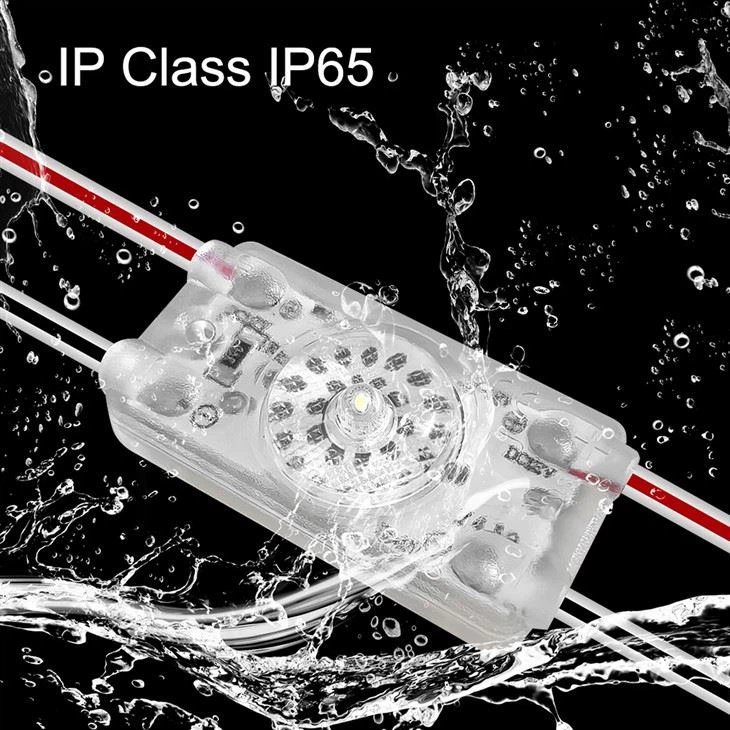

◆ Injection molding process,Waterproof:IP 65

◆ Energy Class reach to "C"

◆ Special Opitical Lens,can reach ratio 1:2.5

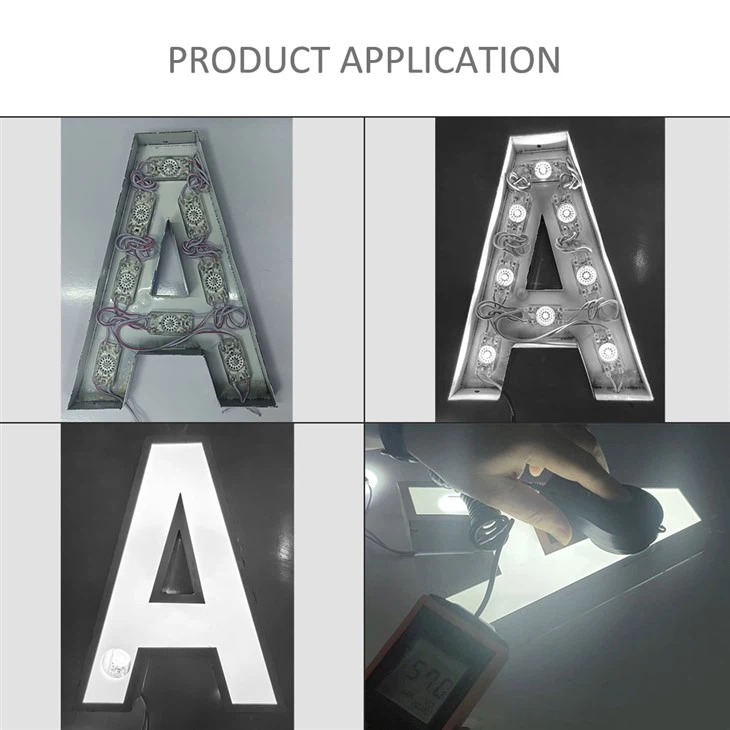

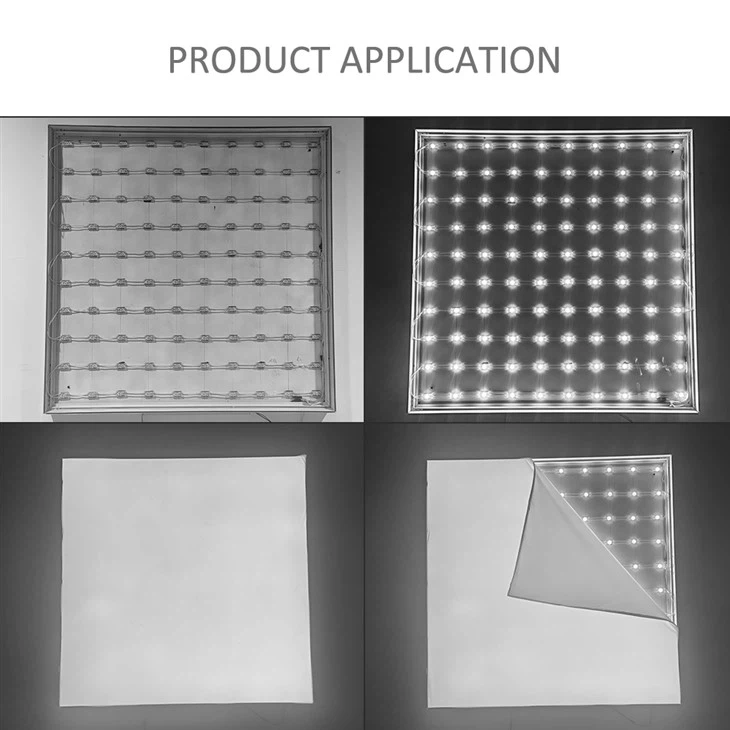

◆ Suitable for 2.5-6cm height channel letters and light boxes backlighting etc.

Description

The Black Dot LED Module is a high-quality lighting solution that is better suited for backlighting slim and small-sized light boxes and channel letters. With a transparent housing design, the LED Module provides better reflection in slim lightboxes. Additionally, the special design with black dot makes it capable of working at 2.5cm depth letter and box.

One of its standout features is the 95% transmittance lens, which provides a wide angle of view, up to 170 degrees. This ensures that the light emanating from the module is uniform and consistent, making it ideal for creating vibrant displays.

The LED Module also incorporates an aluminum plate, which provides for excellent heat dissipation, allowing the unit to operate at optimal efficiency. This ensures that the LED Module delivers bright, vivid illumination consistently and reliably.

Another notable feature is the injection molding process used in the manufacturing of the LED Module. This endows it with a waterproof rating of IP65, making it ideal for both indoor and outdoor use in varied environments. The unit is energy efficient with its energy class rated at "C", ensuring that it provides great lighting without consuming excessive power.

The special optical lens incorporated in the Black Dot LED Module is designed to achieve a ratio of 1:2.5, which is better than what is obtainable in traditional lighting systems. When installed, the LED Module provides a uniform and consistent light, which is critical for quality displays.

The LED Module is suitable for 2.5-6cm height channel letters and light boxes. This makes it versatile as it suits most use cases, including commercial, hospitality, and residential applications.

FAQ

1. What is the design concept of the transparent housing of the LED lighting solution?

- The transparent housing design is aimed at providing better reflection in slim light boxes for a more visually appealing and clear illumination.

2. Can the LED lighting solution work with shallow channel letters and boxes?

- Yes, the special design with black dot enables the LED lighting to work with 2.5cm depth letters and boxes.

3. What is the viewing angle of the LED lighting solution?

- The LED lighting solution features a wide view angle of 170° thanks to the 95% transmittance lens.

4. How does the LED lighting solution deal with heat dissipation?

- The LED lighting solution uses an Aluminum plate for heat dissipation to ensure long-lasting performance.

5. Is the LED lighting solution waterproof?

- Yes, the injection molding process makes the LED lighting solution waterproof with an IP 65 rating.

6. What is the energy efficiency rating of the LED lighting solution?

- The LED lighting solution reaches energy class "C" offering a cost-effective lighting solution.

7. Can the special optical lens feature of the LED lighting solution achieve a specific ratio?

- Yes, the special optical lens can achieve a ratio of 1:2.5.

8. What kind of channel letters and light boxes is the LED lighting solution suitable for?

- The LED lighting solution is suitable for 2.5-6cm height channel letters and light boxes for a diverse range of backlighting applications.

9. What advantages does the LED lighting solution offer compared to traditional lighting solutions?

- The LED lighting solution offers a narrower depth and a greater energy efficiency with a high-quality light output, perfect for signage and other commercial applications.

10. What is the expected lifespan of the LED lighting solution?

- The LED lighting solution has a lifespan of approximately 50,000 hours, making it a reliable and long-lasting lighting solution.

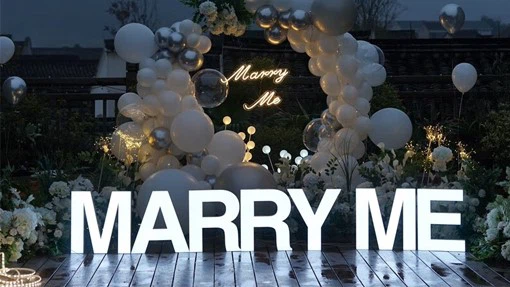

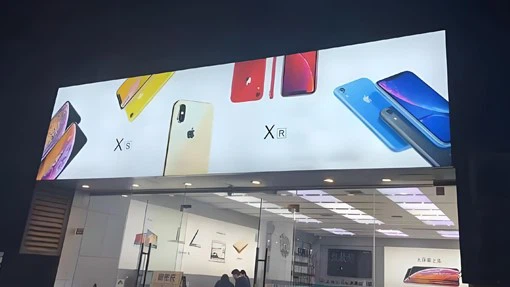

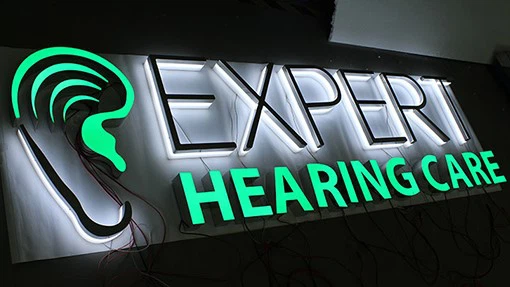

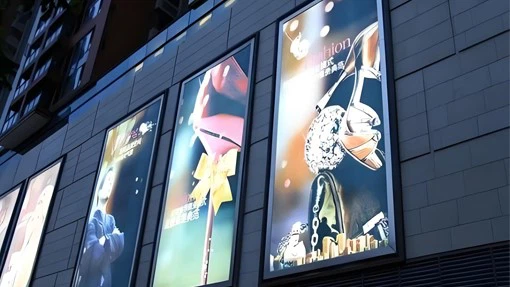

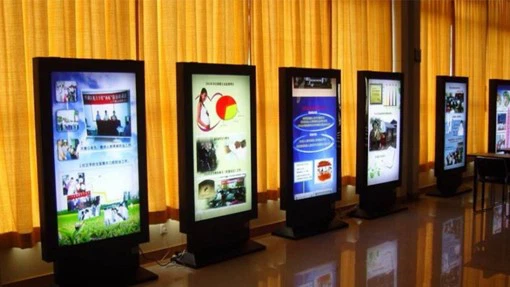

LED module usage scenarios
