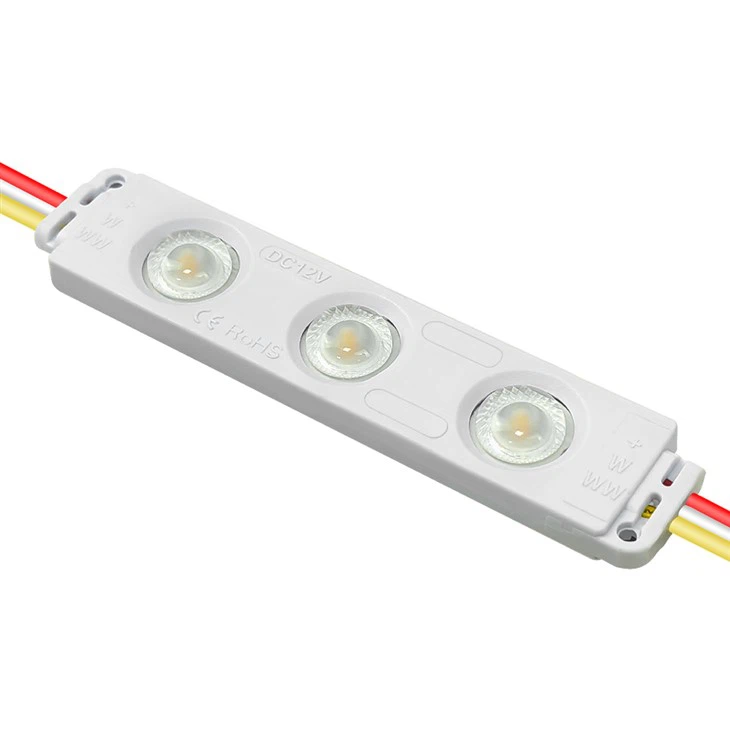

CCT Adjustable Led Module

Feature：

◆ CCT Adjustable led module ,CCT could u change

◆ 90% transmittance lens,Wide view angle 165°

◆ Constant Voltage Technology ,20 pcs per series

◆ 165degree view angle,with less qty in square meter

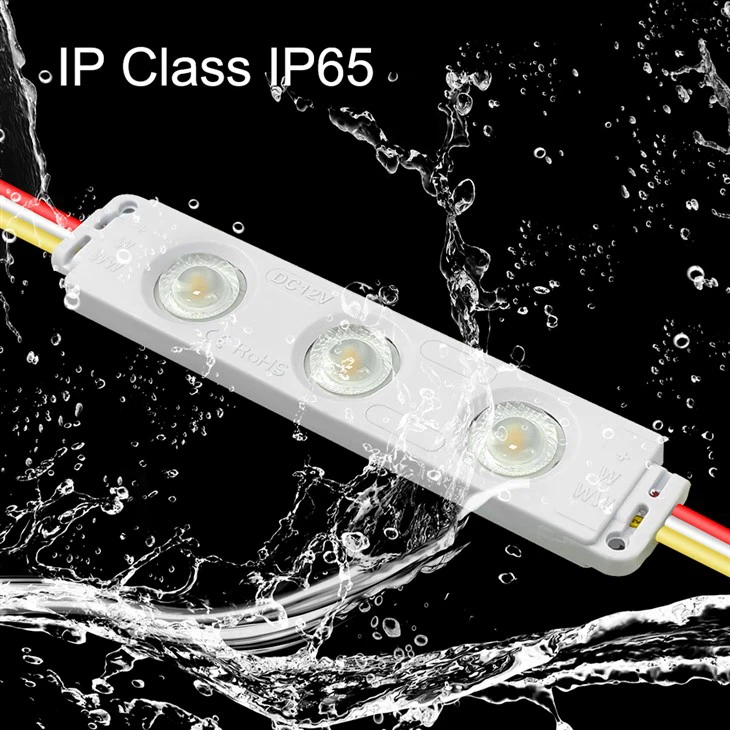

◆ Injection molding process,Waterproof:IP 65

◆ Energy saving,Environment friendly

◆ Suitable for 8-15 cm height channel letters and light boxes backlighting etc.

Description

The CCT (Correlated Color Temperature) Adjustable LED Module is engineered to offer unparalleled flexibility in lighting design. Users can seamlessly adjust color temperatures from warm white (2700K) to cool daylight (6500K), enabling tailored illumination for diverse environments. This feature is ideal for commercial spaces, retail displays, or architectural lighting where ambiance customization is critical. The technology leverages dual-channel LED arrays combined with intuitive dimming controls, ensuring smooth transitions and precise tuning. Whether enhancing product visibility in a boutique or creating a cozy atmosphere in hospitality settings, this adaptability empowers users to optimize lighting scenarios in real time.

Equipped with a premium optical lens boasting 90% light transmittance, this module maximizes luminous efficiency while minimizing energy loss. Crafted from ultra-clear PMMA (polymethyl methacrylate), the lens ensures minimal distortion and uniform light distribution. Its wide 165° viewing angle eliminates dark spots and delivers consistent brightness across large surfaces, making it ideal for backlighting applications such as channel letters and light boxes. The high transmittance not only enhances visual clarity but also reduces the need for additional modules, lowering overall project costs.

Built with advanced Constant Voltage (CV) drivers, the module guarantees stable performance across varying input voltages. This technology mitigates flicker, extends LED lifespan, and ensures consistent brightness even in fluctuating power conditions. The 20-LED-per-series configuration optimizes voltage distribution, reducing thermal stress and enhancing reliability. Designed for scalability, this setup simplifies installation in large-scale projects while maintaining uniform illumination.

The expansive 165° beam angle ensures broad, uniform coverage with fewer modules per square meter. This design minimizes installation density while maintaining high luminance, significantly cutting material and labor costs. For instance, a single row of modules can effectively illuminate tall channel letters (8–15 cm depth), eliminating the need for multi-layered setups. This efficiency is particularly advantageous for large signage or backlit displays where seamless aesthetics and cost-effectiveness are priorities.

Constructed via precision injection molding, the module features a robust, lightweight housing resistant to impact, UV exposure, and temperature extremes (-20°C to 50°C). The IP65 waterproof rating ensures reliable operation in harsh indoor and outdoor environments, protecting against dust ingress and low-pressure water jets. This durability makes it suitable for exposed locations such as storefronts, outdoor signage, or humid indoor areas like refrigeration units.

Consuming up to 50% less energy than traditional lighting solutions, this module aligns with global sustainability goals. It operates at high efficacy (≥120 lm/W), reducing carbon footprints without compromising brightness. The lead-free, RoHS-compliant construction ensures environmentally safe disposal. By minimizing heat generation and power consumption, it supports long-term energy savings and compliance with green building certifications.

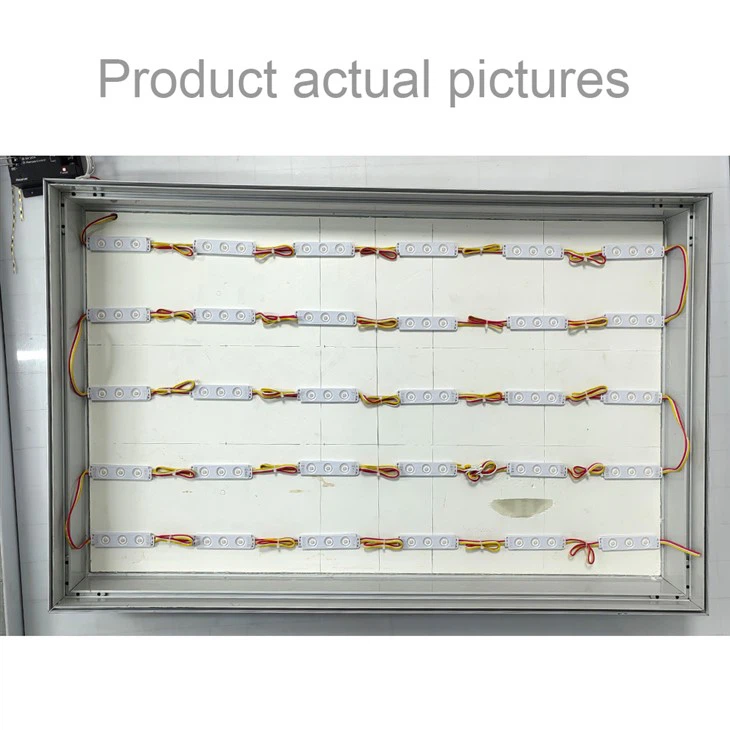

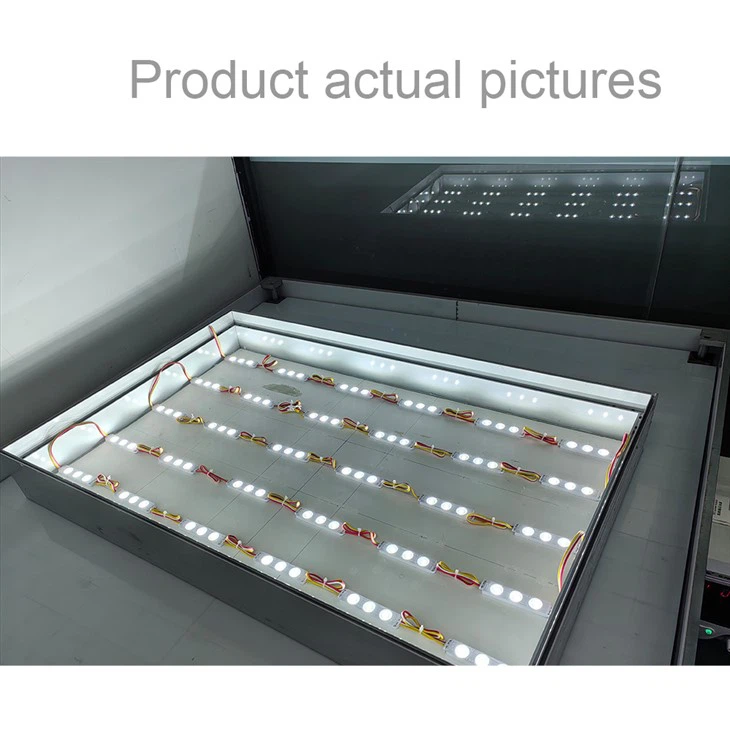

Optimized for channel letters and light boxes with 8–15 cm depth, the module's slim profile and high output enable seamless integration into space-constrained installations. Its adaptability extends to architectural accents, cabinet lighting, and retail displays, offering crisp, shadow-free illumination. Compatible with aluminum or acrylic enclosures, it provides a plug-and-play solution for retrofit or new projects, reducing downtime and complexity.

The CCT Adjustable LED Module redefines modern lighting with its blend of adaptability, efficiency, and rugged performance. From dynamic color control to industrial-grade durability, each feature is meticulously designed to meet the demands of commercial, retail, and architectural applications. By prioritizing energy savings, ease of installation, and optical precision, this solution stands as a future-proof investment for businesses seeking to elevate their visual impact while embracing sustainability.

FAQ:

Q1: How many CCT options does the adjustable LED module offer?

A1: The CCT adjustable LED module allows you to change the CCT as needed.

Q2: What is the transmittance of the lens used in the LED module?

A2: The lens has a 90% transmittance with a wide view angle of 165°.

Q3: What technology is used in the LED module for voltage regulation?

A3: The LED module uses Constant Voltage Technology with 20 pieces per series.

Q4: What is the view angle of the LED module and how does it affect the quantity needed per square meter?

A4: The LED module has a 165-degree view angle, allowing for less quantity needed in each square meter.

Q5: What is the manufacturing process used for the LED module and what is its waterproof rating?

A5: The LED module is produced using injection molding process and has a waterproof rating of IP65.

Q6: Are the LED modules energy-saving and environmentally friendly?

A6: Yes, the LED modules are energy-saving and environmentally friendly.

Q7: What applications are suitable for the LED modules?

A7: The LED modules are suitable for 8-15 cm height channel letters and light boxes backlighting, among others.
