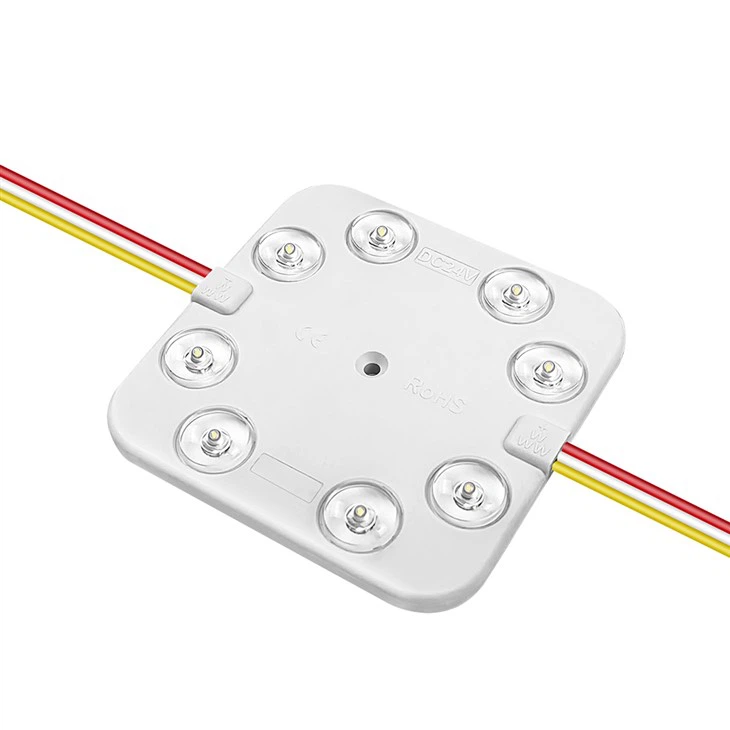

CCT Led Module

Feature：

◆ 95% transmittance lens,Wide view angle 170°

◆ High Power High lumen with less module per square meter

◆ CCT Module,Color Temperature could be changed

◆ The Aluminum plate for better heat dissipation

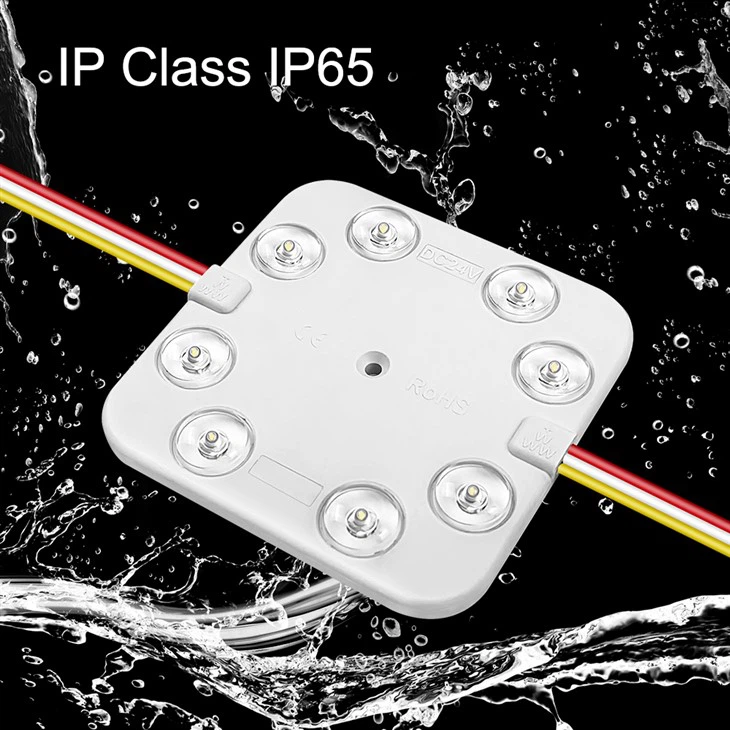

◆ Injection molding process,Waterproof:IP 65

◆ Three Single color can changeable

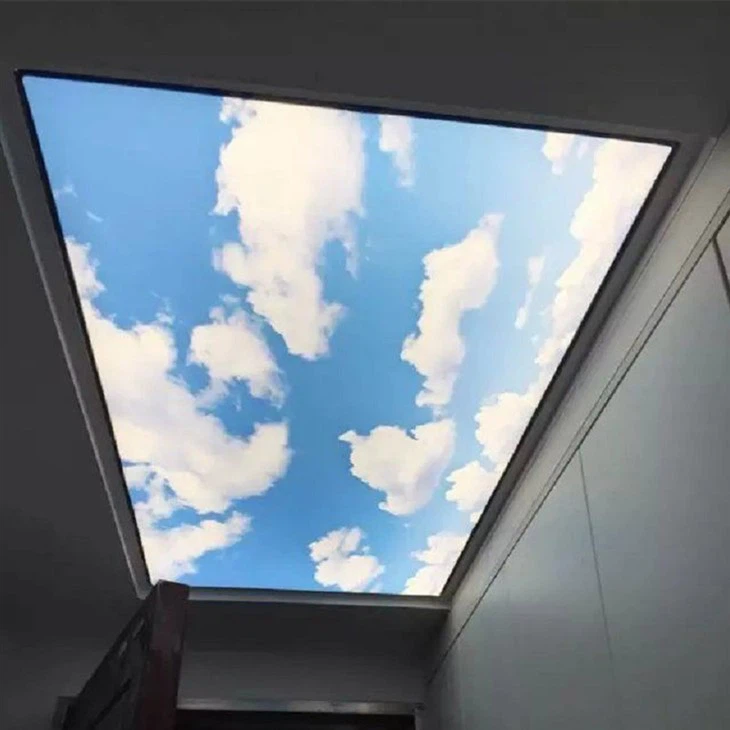

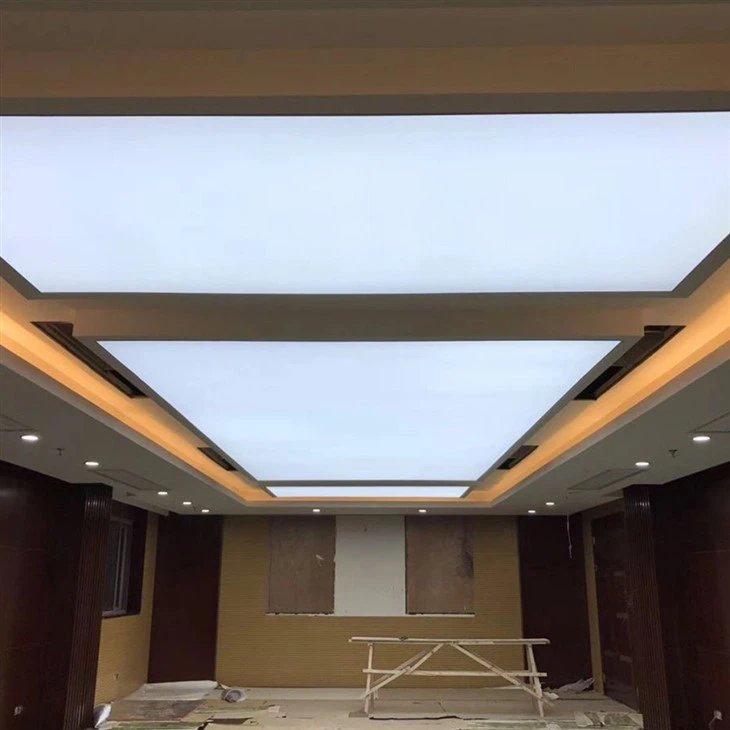

◆ suitable for ceiling light

◆ Suitable for 8-20cm height channel letters and light boxes backlighting etc.

Description

1. Introduction: Revolutionizing Modular LED Lighting
Introducing our next-generation high-performance LED module, engineered to set new benchmarks in efficiency, versatility, and reliability. Designed specifically for demanding commercial and architectural lighting applications, this module integrates cutting-edge optical, thermal, and electronic technologies. Its core innovation lies in the advanced CCT LED Module, enabling unprecedented control over light quality and ambiance. Ideal for ceiling lights, channel letters, and lightbox backlighting, it delivers superior illumination while addressing critical industry challenges like energy consumption, space constraints, and environmental adaptability.

2. Unmatched Optical Clarity & Uniformity
Featuring a precision-engineered optical lens with 95% transmittance, this module maximizes luminous efficacy by minimizing light loss. Coupled with an ultra-wide 170° viewing angle, it achieves exceptional spatial light distribution, eliminating hotspots and shadows. This combination ensures consistent, glare-free illumination across large surfaces-whether illuminating a retail display, office ceiling, or backlit signage. The broad beam angle significantly reduces the number of modules required per square meter, lowering installation complexity and cost while maintaining seamless brightness.

3. High-Power Density & Energy Efficiency
This module delivers breakthrough luminous output through its high-power, high-lumen density design. Generating up to 40% higher lumen density compared to conventional LED modules, it achieves target brightness levels with approximately 30% fewer modules per square meter. This translates to 15% lower energy consumption for equivalent illuminance, offering substantial operational cost savings and reduced environmental impact. The optimized power-to-light ratio makes it perfect for applications demanding high brightness in confined spaces, such as shallow channel letters (8-20cm depth).

4. Intelligent Color Control: The CCT LED Module Advantage
At the heart of this innovation is the CCT LED Module (Correlated Color Temperature Module), offering dynamic stepless color temperature adjustment from warm 2700K to cool 6500K. This tunable white technology allows users to adapt lighting atmospheres instantly-enhancing productivity with cool white in offices, creating cozy warmth in hospitality settings, or optimizing visual appeal in retail displays. The module supports smooth transitions across the entire CCT spectrum via standard control interfaces (0-10V/DALI/PWM), enabling scene-specific lighting customization without hardware changes.

5. Enhanced Flexibility with Triple Single-Color Modes
Complementing the CCT tunability, the module provides dedicated Three Single-Color Modes: fixed Warm White, Neutral White, and Cool White outputs. This dual-control approach offers unmatched versatility-users can leverage dynamic CCT tuning for adaptive environments or select a fixed color temperature for consistent, maintenance-free operation. This flexibility caters to diverse project requirements, from circadian lighting systems in healthcare facilities to cost-effective single-color solutions for backlit advertisements or signage illumination.

6. Robust Industrial Design & Thermal Management
Engineered for longevity, the module utilizes a high-conductivity anodized aluminum plate (thermal conductivity ≥200W/m·K) as its primary heatsink. This advanced thermal substrate reduces junction temperatures by 30% versus standard designs, extending operational lifespan to 50,000 hours while maintaining stable photometric performance. The housing employs IP65-rated injection molding, ensuring complete protection against dust ingress and high-pressure water jets. Rigorously tested for extreme environments (-30°C to 80°C), it guarantees reliable operation in humid, outdoor, or industrial settings.

7. Application-Specific Versatility
Optimized for space-sensitive installations, the module's slim profile excels in:

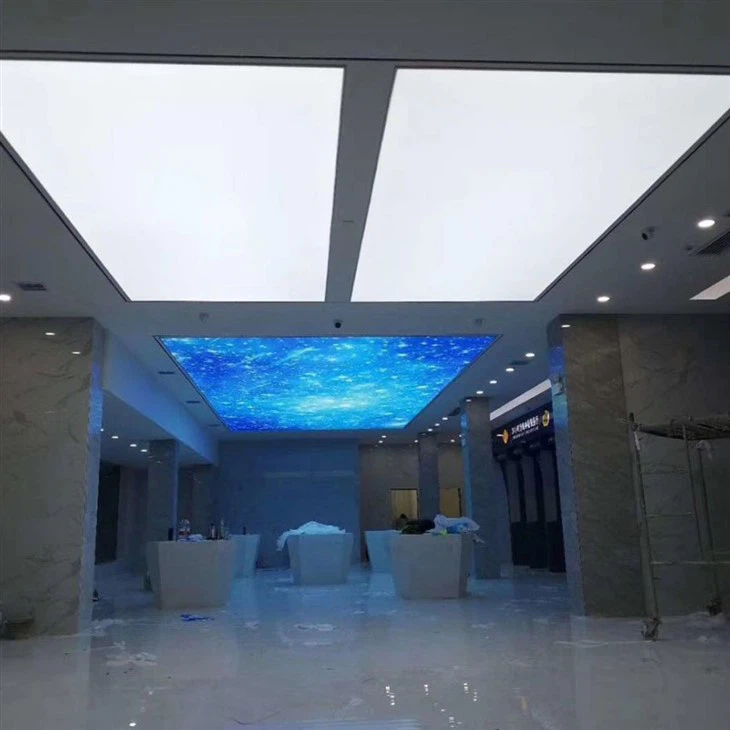

● Ceiling Lights: Ultra-thin design for seamless integration into recessed panels or suspended fixtures.
● Channel Letter Lighting: Uniform backlighting for letters/logo signs with cavity depths of 8-20cm.
● Light Boxes: High-brightness, even illumination for advertising lightboxes and display cabinets.
● Niche Architectural Lighting: Cove lighting, shelf accents, and museum display lighting requiring precise color control. Its combination of high output, minimal depth, and environmental resilience makes it ideal for retail, hospitality, and urban branding projects.

8. Integrated Value Proposition
This CCT LED Module represents a holistic solution merging optical precision (95% lens transmittance, 170° beam), energy intelligence (40% higher lumen density), and adaptive color science (stepless CCT + fixed modes). Paired with industrial-grade thermal reliability and IP65 protection, it solves core lighting challenges: reducing energy/installation costs, enabling human-centric lighting designs, and ensuring durability in harsh conditions. For architects, lighting designers, and facility managers seeking future-proof, sustainable illumination-especially in height-restricted or ambiance-critical spaces-this module delivers unparalleled technical and economic value.
