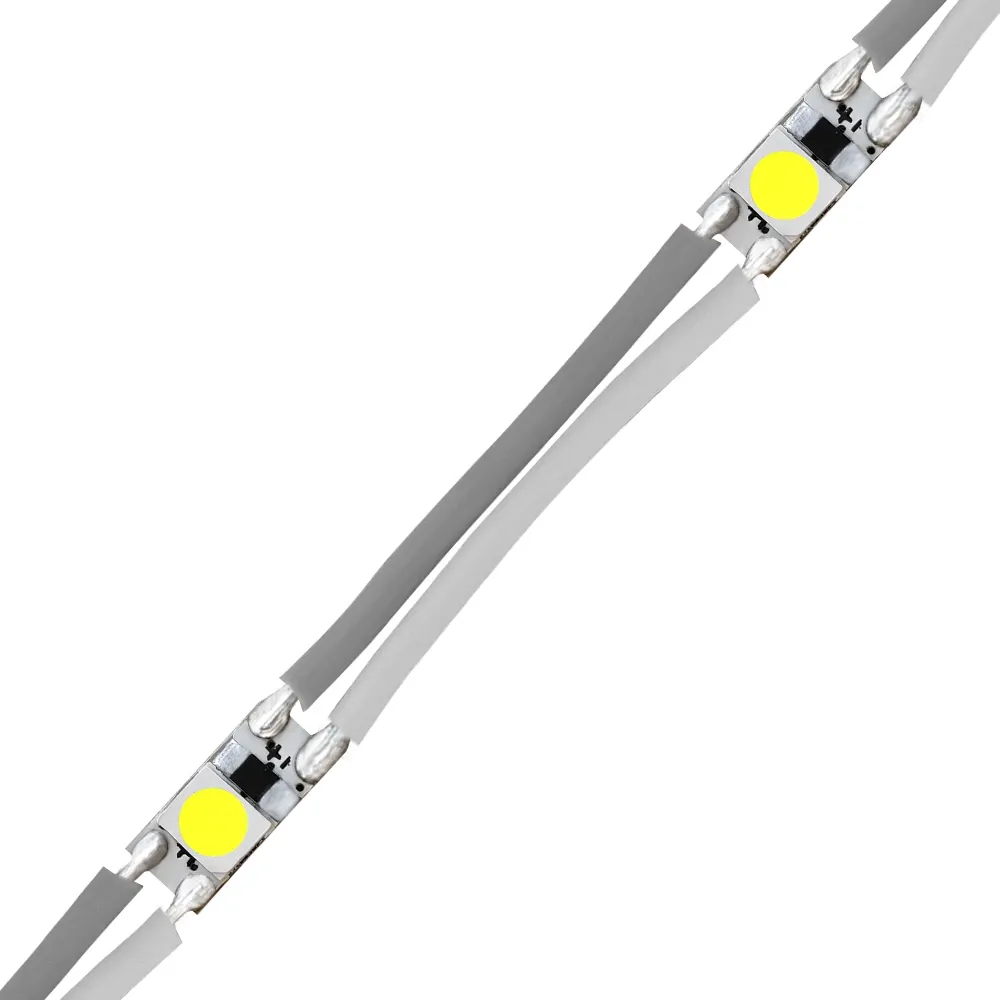

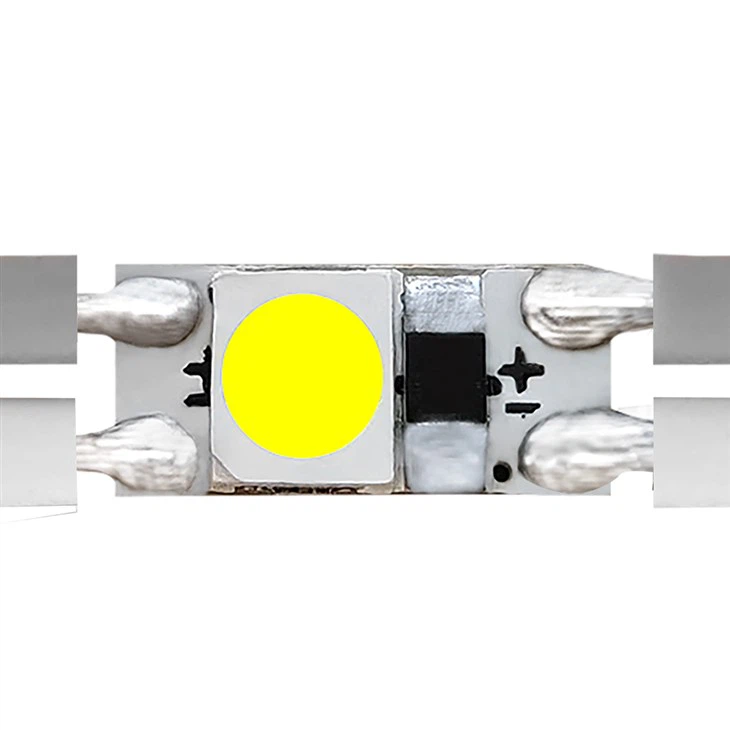

Constant Voltage Mini Module

Feature：

◆ Constant Voltage Technology (CCT),50 pcs per series

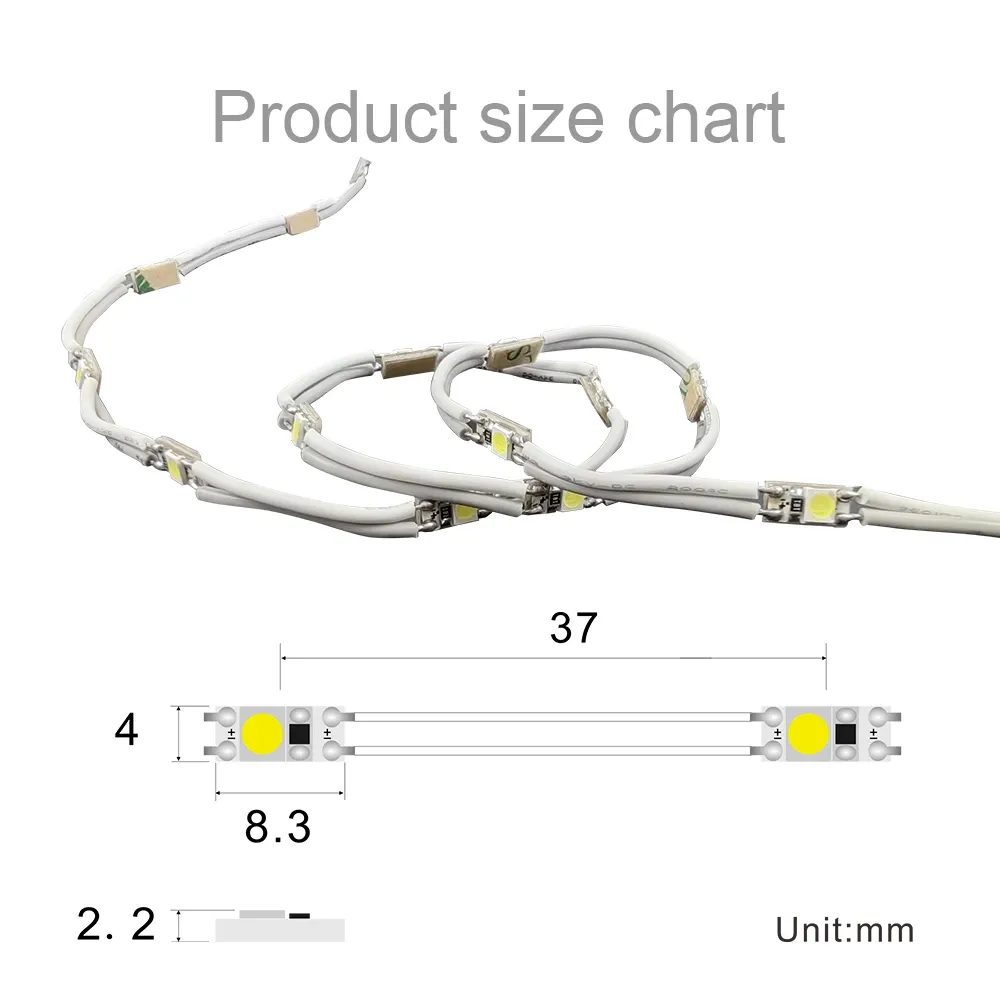

◆ Super Mini size ,only 4mm width,good for small letter

◆ Bigger chip,high lux

◆ Energy saving,Environment friendly

◆ Suitable for 2-8cm height channel letters

Description

The cornerstone of this Mini Module is its sophisticated "Constant Voltage Technology (CVT)". Unlike traditional LED solutions susceptible to fluctuations in input voltage, CVT employs a highly efficient internal voltage regulation circuit. This intelligent system meticulously maintains a consistent, pre-set output voltage to the LED chips, regardless of minor variations in the power supply. This precise regulation is paramount for LED performance and lifespan. It eliminates the risk of current surges caused by voltage spikes, which are a primary cause of premature LED degradation and catastrophic failure. Furthermore, CVT ensures uniform brightness across all LEDs within a series connection, preventing hotspots or dim sections that plague unstable systems. Designed for practical installation, these modules are conveniently supplied "50 pieces per series", optimizing workflow and reducing waste for sign fabricators working on large projects. The inherent stability of CVT translates directly into significantly reduced maintenance costs and enhanced reliability for the end-user's illuminated signage.

Engineered with meticulous precision, this module achieves a "super-mini size", boasting an incredibly narrow profile of "only 4mm in width". This breakthrough in miniaturization addresses a critical challenge in the signage industry: effectively and attractively illuminating very small channel letters. Traditional LED modules often prove too bulky or require excessive spacing, compromising the aesthetics and light uniformity in letters with limited internal cavity depth. The 4mm width allows for tight, efficient placement within even the most constrained spaces, enabling the creation of crisp, well-defined illumination for letters as small as 2cm in height. This slim form factor maximizes light output per linear inch without sacrificing coverage or creating visible dark spots near bends and returns. Sign makers gain unprecedented flexibility in design, confident that they can achieve professional-grade, bright results even on intricate logos and compact lettering where space is at an absolute premium.

Despite its miniature footprint, this module delivers exceptional brightness through the strategic integration of "larger, high-performance LED chips". These advanced chips possess a significantly larger light-emitting surface area compared to standard SMD LEDs used in many mini modules. This fundamental design choice directly translates into "higher luminous flux (lumens)" and critically, "higher Lux levels" at the face of the channel letter. Lux measures the intensity of light falling on a surface – a crucial metric for ensuring letters appear vividly bright and readable, especially in daylight conditions or competitive urban environments. The larger chips are also inherently more efficient at converting electrical energy into visible light, contributing to the module's overall energy savings. The result is a powerful, concentrated beam of light that effectively illuminates the acrylic face material, ensuring maximum visibility and impact for the signage, all packed into an ultra-slim 4mm wide form factor that defies expectations.

This Constant Voltage Mini Module is designed with sustainability and operational economy as core principles, delivering substantial "energy savings". The combination of highly efficient, larger LED chips and the optimized current regulation provided by the CVT driver circuit minimizes power consumption without compromising luminous output. Compared to older LED technologies or fluorescent lighting commonly used in signage, these modules can achieve reductions in energy usage of 50% or more, significantly lowering the operational electricity costs for the end-user over the lifespan of the sign. This inherent efficiency aligns perfectly with global trends towards "environmentally friendly" solutions. Reduced energy demand directly correlates to lower carbon emissions from power generation. Furthermore, the modules are typically constructed using lead-free, RoHS-compliant materials, minimizing hazardous substances. The exceptional longevity provided by CVT stability also drastically reduces the frequency of replacements, leading to less electronic waste (e-waste) entering landfills. Choosing this module represents a responsible investment in both cost savings and environmental stewardship.

The unique combination of constant voltage stability, extreme miniaturization (4mm width), and high-intensity output makes this module "perfectly suited for illuminating channel letters ranging from 2cm to 8cm in height". For very small letters (2-4cm), the 4mm width allows modules to be placed close to the letter face and efficiently navigate tight curves without creating shadows or requiring excessive module counts that could cause overheating in confined spaces. The high Lux output ensures these small letters achieve the necessary brightness for visibility. For medium-sized letters (5-8cm), the modules provide exceptional uniformity and coverage. The CVT ensures consistent brightness even when modules are connected in longer series runs required for these sizes. Installers benefit from predictable performance and simplified wiring due to the series compatibility. Careful thermal management is integrated into the design, allowing the modules to operate reliably within the typical thermal environment of acrylic-faced channel letters across this entire height spectrum. This targeted application range makes the Constant Voltage Mini Module the definitive solution for achieving professional, bright, durable, and energy-efficient illumination in the vast majority of standard commercial signage applications.

LED module usage scenarios
