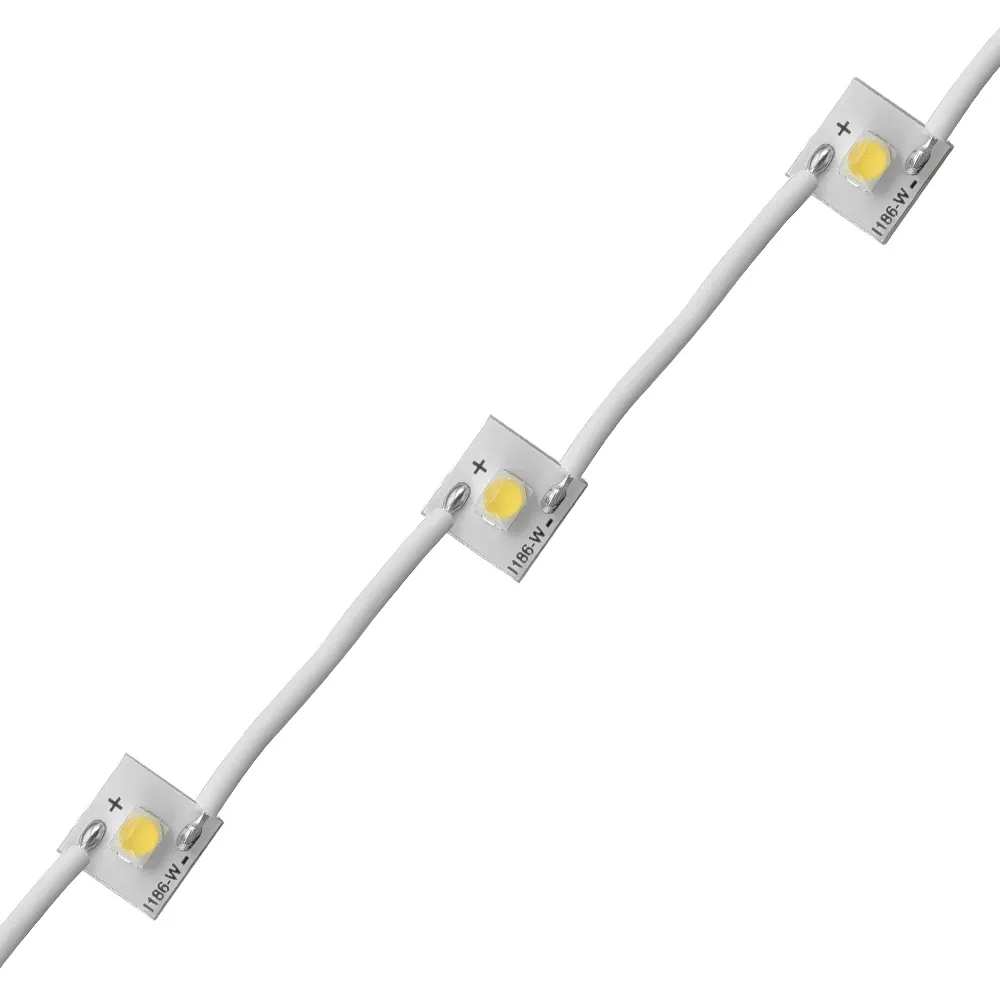

Constant Current Mini Module

Feature：

◆ Constant Current Technology (CCT),100 pcs per series

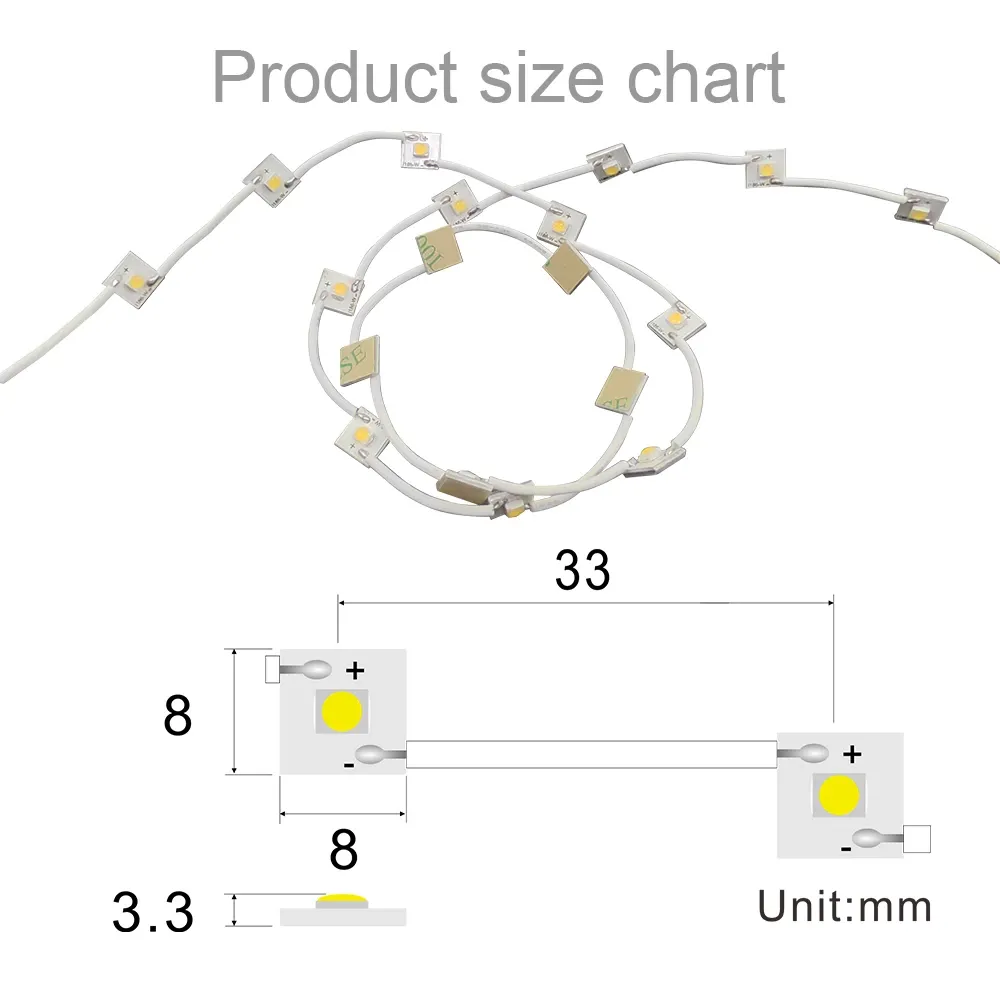

◆ Super Mini size ,only 4mm width,good for small letter

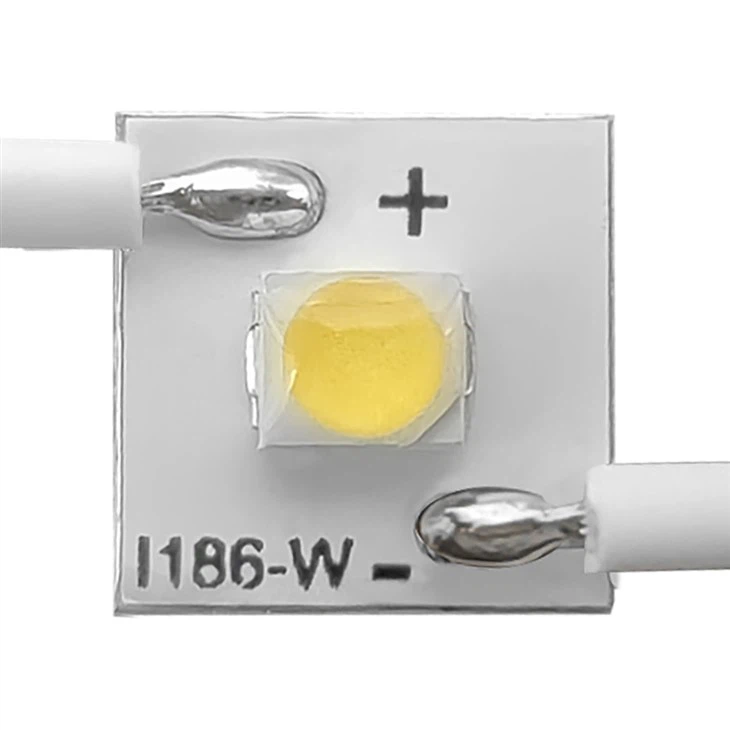

◆ Bigger chip,high lux

◆ Energy saving,Environment friendly

◆ Suitable for 2-8cm height channel letters

Description

The Constant Current Mini Module represents a significant advancement in LED technology specifically engineered for demanding channel letter and signage applications. Its core innovation lies in the integration of sophisticated "Constant Current Technology (CCT)". This technology utilizes a precision driver circuit that meticulously regulates the current flowing through the LED chips, irrespective of minor fluctuations in the input voltage. This ensures absolutely uniform brightness across all modules within a system, eliminating hot spots or dimming. Crucially, CCT provides inherent protection against thermal runaway, a common cause of LED failure, by preventing current spikes that can overstress the semiconductor junction. This precise regulation directly translates to significantly enhanced longevity and consistent luminous output throughout the module's extended operational lifespan. Furthermore, the modules are designed for optimal performance when connected in "series configurations, typically supporting runs of up to 100 modules per series", simplifying large-scale installations and reducing wiring complexity while maintaining voltage efficiency.

Engineered for space-constrained applications, this module boasts a "super-miniature form factor, featuring an exceptionally narrow width of merely 4mm". This ultra-slim profile is a critical design achievement, making it the ideal solution for illuminating very small channel letters, intricate logo details, and signage elements with extremely tight internal cavities where traditional wider modules simply cannot fit. The minimal footprint allows installers to position modules closer to the sign face or within complex bends without compromising light distribution or causing mechanical interference. This design maximizes installation flexibility, enabling the creation of crisp, evenly illuminated lettering even in the most challenging small-scale sign designs, enhancing overall visual impact and readability.

Despite its diminutive size, the module delivers outstanding luminous efficacy through the incorporation of "larger, high-performance LED chips". These advanced chips possess a greater light-emitting surface area compared to standard chips used in conventional mini-modules. This larger chip size directly correlates to "higher Lux output" and superior lumen density. The result is exceptionally bright, intense illumination capable of achieving vibrant, eye-catching signage even when viewed under high ambient light conditions. The enhanced light output ensures that channel letters appear vivid and saturated, maximizing visibility and brand recognition day and night, without requiring excessive power consumption or compromising the module's compact dimensions.

A cornerstone of this module's design is its "superior energy efficiency", delivering significant operational cost savings over traditional lighting solutions. By leveraging highly efficient LED chips combined with the optimized Constant Current driver, the module converts a greater proportion of electrical input into visible light, minimizing wasteful heat generation. This inherent efficiency directly reduces electricity consumption for the signage system. Furthermore, the module is constructed using "environmentally friendly materials and processes", adhering to stringent RoHS (Restriction of Hazardous Substances) compliance standards. It contains no hazardous elements like lead or mercury, making it safer for both the environment during its operational life and at the end of its lifecycle during responsible disposal or recycling. The combination of low energy usage and eco-conscious materials underscores its sustainable design philosophy.

Finally, this Constant Current Mini Module is "specifically engineered to provide optimal performance within channel letters ranging from 2cm to 8cm in height". Its unique combination of ultra-miniature size, high brightness output, and efficient thermal management makes it exceptionally versatile. For the smallest letters (2-3cm), the 4mm width ensures easy fitting and excellent light penetration. For medium-sized letters (4-6cm), the high Lux output guarantees vibrant, uniform illumination without dark spots. Even in larger letters up to 8cm, the module's brightness and the ability to run long series (up to 100 modules) ensure consistent, powerful light distribution across the entire sign face. The robust design and constant current operation ensure reliable performance across this entire spectrum, making it a truly adaptable core component for a wide variety of professional signage applications, delivering superior illumination quality, longevity, and cost-effectiveness.
