Our goal is to become your true partner in the field of high voltage led strip in China. HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise. According to the customer's requirement. We customize the products or package for our clients. We have a skilled engineering team dedicated to refining every stage, from product development and process improvement to production oversight, ensuring every product delivered meets rigorous quality and performance standards.The price is competitive and the product is quality-assured, which is a good choice for your long-term cooperation.
Why Choose Us
Our certification
Our company has passed the "ISO9001 International Quality System Certification", and dozens of products have obtained CE, RoHS, PSE, UL, Reach and other certifications.
Product market
Our products are exported to North America, South America, the Middle East and European countries, and are popular in the local market. Hansen has become a pioneer in the LED sign lighting industry to successfully enter the western development countries.
Product application
Our products cover hundreds of varieties such as LED flexible light strips, LED linear light strips, LED modules, LED hard light strips, LED atmosphere lights, etc., which are widely used in channel characters, shop signs, light boxes, residences, public facilities, etc.
Our services
In the pre-sales stage, our team of experts will recommend the most suitable products according to the needs of customers and provide detailed technical consultation. During the sales period, we ensure timely delivery and provide installation guidance. For after-sales, we provide long-term technical support, warranty services and spare parts to help customers maximize the use of products and get reliable
maintenance during use.
Advantages of High Voltage LED Strip
Cost-effective
0 1
Low maintenance
0 2
Environmentally friendly
0 3
Versatile design options
0 4
Instant on activation
0 5

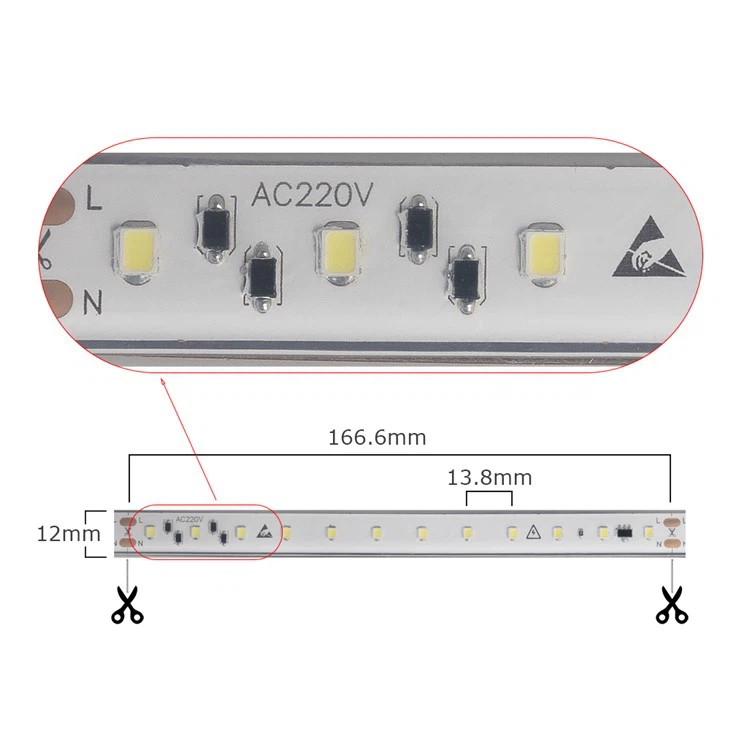

Specification of High Voltage LED Strip
| Item No. | HS-HV-2835-72D |
| Input Voltage | AC120V/AC230V |
| Power | 7.2W/M |
| Luminous Flux | 720lm/M |
| Efficiency | 100lm/W |
| LED Type | 2835 |
| LED QTY | 72LEDs/M |
| Color | Warm White/Pure White/Cold White |
| PCB width | 12mm |
| RA | 80/90 |
Features of High Voltage LED Strip
High-quality LEDs
The LED strip is made up of high-quality LED chips that emit bright, uniform light. The LEDs have a long lifespan of up to 50,000 hours, which means you won't have to replace them frequently.
Waterproof
The LED strip is IP65 rated, which means it is protected against dust and water. It can be used in wet environments such as bathrooms, kitchens, and outdoor areas.
Wide-angle viewing
The LED strip has a viewing angle of 120 degrees, which means the light is emitted in a wide angle, providing greater coverage and illumination.
Low heat emission
The LED strip emits low heat, making it safe to touch and reducing the risk of fire.
High voltage
The LED strip is powered by 220V high voltage, which makes it more stable and safer than low voltage strips. The high voltage also ensures that the LED strip can be connected in series up to 50 meters (164ft) without any voltage drop.
Application of High Voltage LED Strip
Industrial facilities
0 1
Commercial buildings
0 2
Street and area lighting
0 3
Architectural lighting
0 4
Residential uses
0 5
Customizable Options of High Voltage LED Strip

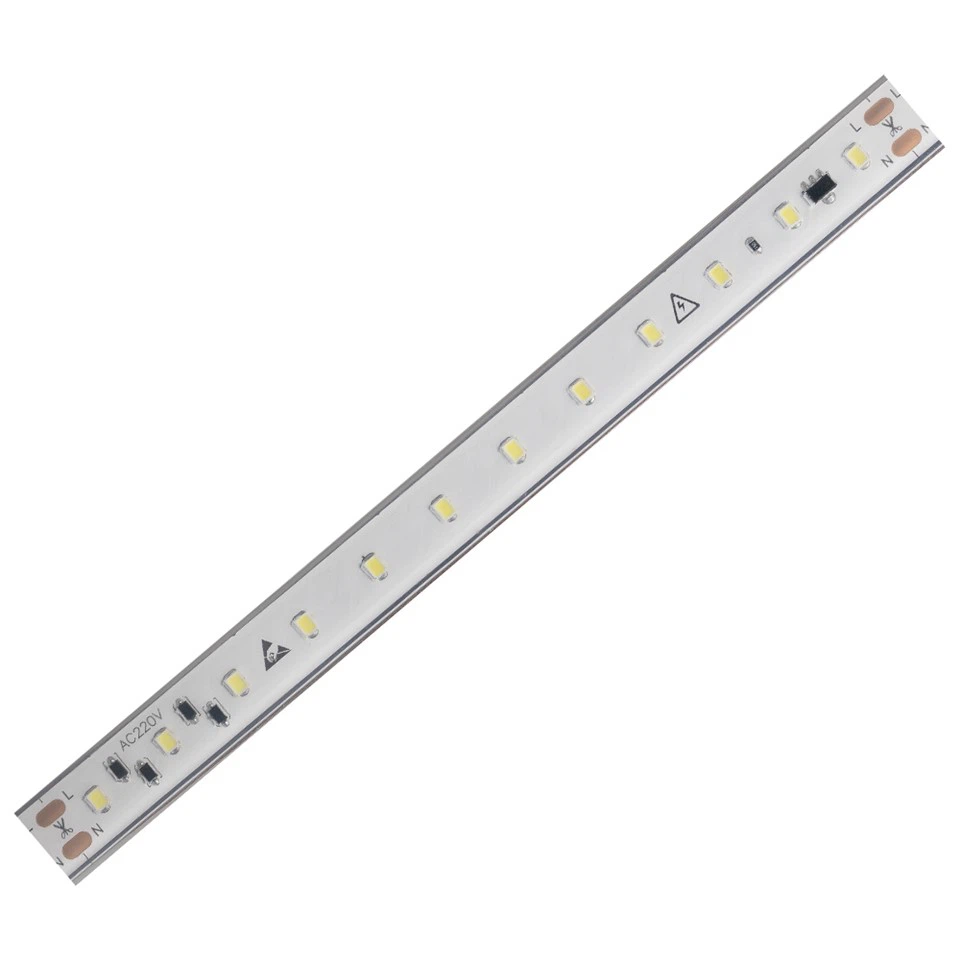

LED strip color rendering index (cri)

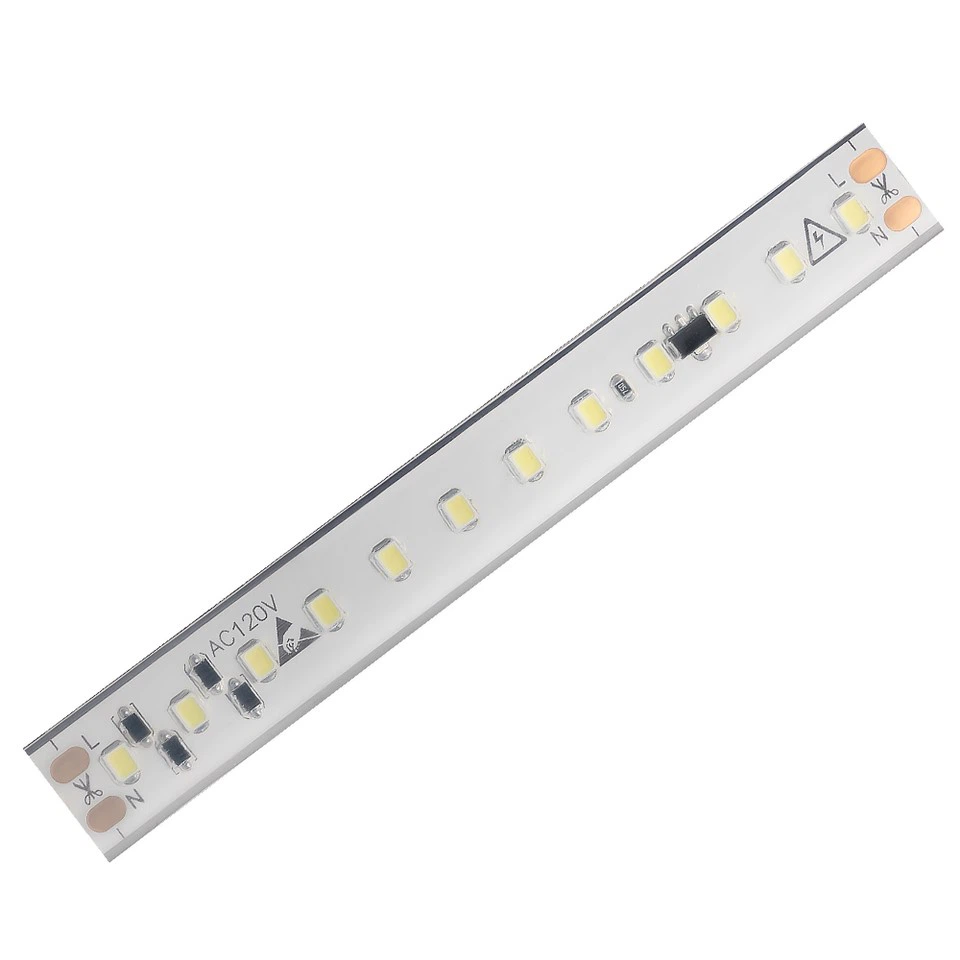

LED strip kit options
LED strip dimming options

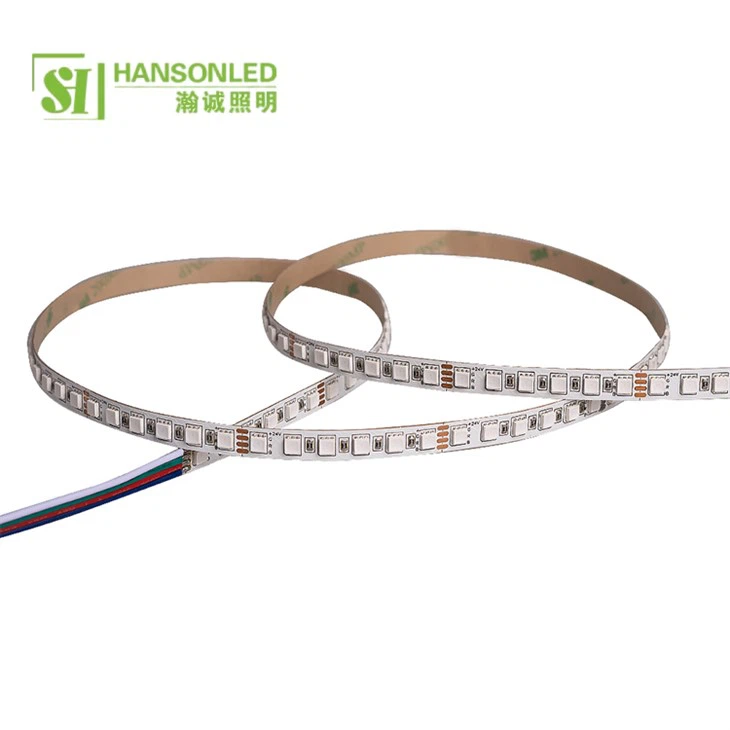

LED strip size & dimension
LED strip brightness

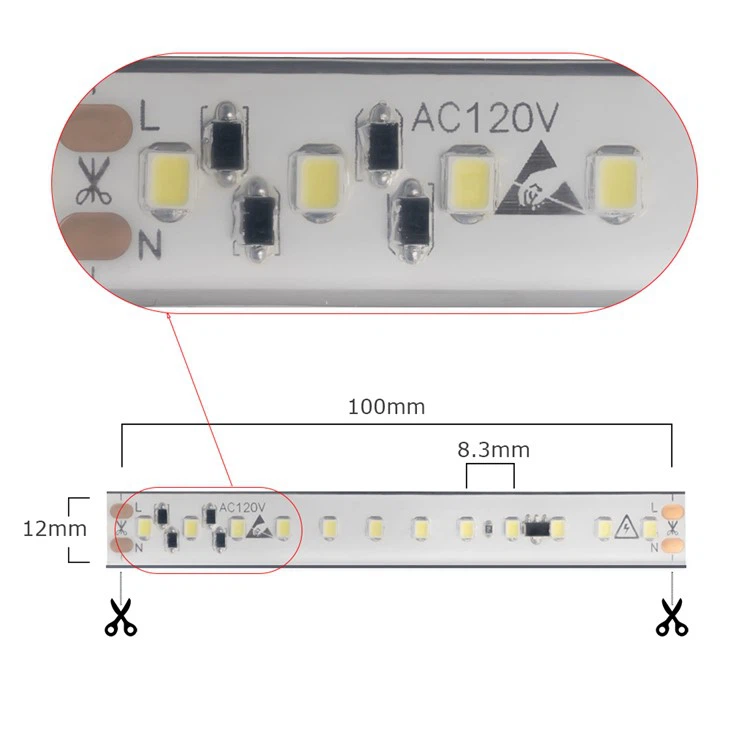

LED strip ip rating
High-voltage LED Strip Lights vs Low-voltage LED Strip Lights
Safety: The 220V voltage used by high-voltage LED strip lights is not a safe voltage. There are potential safety hazards in some risky applications; while low-voltage LED strip lights work under the working voltage of DC 12V or 24V, which is a safe voltage. There is no danger to the person.
Cost: If you only look at the price of the strip light, the prices of the two LED strip lights are similar. However, there is a difference in terms of overall cost. High-voltage LED strip lights come equipped with a high-voltage power supply, allowing them to support 30-50-meter LED strip lights simultaneously.
Installation: Installing high-voltage LED strip lights is straightforward as they can be directly powered by a high-voltage driver. They come pre-equipped and function properly when connected to a 220V power supply.
Packaging: The packaging of high-voltage LED strip lights is also very different from that of low-voltage LED strip lights. High-voltage LED flexible light strips can generally be 50-100 meters per roll; low-voltage LED strip lights can generally be up to 5-10 meters per roll.
Lifetime: The service life of low-voltage LED strip lights can reach 30,000-50,000 hours. High-voltage LED strip lights have a direct impact on the life of high-voltage LED strip lights because of their high voltage.
Testing of High Voltage LED Strip
| Test Item | Test Conditions | Duration/Cycle | Judgment Condition | Use Equipment |
| Thermal Shock | –40℃ 30min ↑↓ 5sec 100℃ 30min | 200 cycles | No cracked glue, no dead light | Hot and cold shock box |
| Humidity Heat Storage | Ta=85℃, RH=85%, Rated voltage | 1000 hours | Luminous decay ≤10%, no cracked glue, no dead light | High temperature and humidity box |
| Life Test | Ta=25℃, Rated voltage | 1000 hours | Luminous decay ≤3%, no cracked glue, no dead light | Room temperature aging seat |
| High Humidity Heat Life Test | 60℃, RH=90%, Rated voltage | 1000 hours | Luminous decay ≤10%, no cracked glue, no dead light | High temperature and high humidity aging box |
| Twist Test | 0.5M fixed at both ends, twisted 360°/cycle | 300 cycles | No dead light, no cracked glue | Distortion test machine |
Packing and Shipping of 24V LED Module
| Packing | Box |
| Shipping | Shipped by road, sea, rail |
FAQ
We're well-known as one of the leading high voltage LED strip manufacturers and suppliers in China. Our factory offers high quality high voltage LED strip made in China with low price. Welcome to contact us for customized service.
