Our goal is to become your true partner in the field of ultra-long led strip in China. HansonLed Ltd is a high-tech green illumination enterprise and a high-tech enterprise. According to the customer's requirement. We customize the products or package for our clients. We have a skilled engineering team dedicated to refining every stage, from product development and process improvement to production oversight, ensuring every product delivered meets rigorous quality and performance standards.The price is competitive and the product is quality-assured, which is a good choice for your long-term cooperation.
Why Choose Us
Our certification
Our company has passed the "ISO9001 International Quality System Certification", and dozens of products have obtained CE, RoHS, PSE, UL, Reach and other certifications.
Product market
Our products are exported to North America, South America, the Middle East and European countries, and are popular in the local market. Hansen has become a pioneer in the LED sign lighting industry to successfully enter the western development countries.
Product application
Our products cover hundreds of varieties such as LED flexible light strips, LED linear light strips, LED modules, LED hard light strips, LED atmosphere lights, etc., which are widely used in channel characters, shop signs, light boxes, residences, public facilities, etc.
Our services
In the pre-sales stage, our team of experts will recommend the most suitable products according to the needs of customers and provide detailed technical consultation. During the sales period, we ensure timely delivery and provide installation guidance. For after-sales, we provide long-term technical support, warranty services and spare parts to help customers maximize the use of products and get reliable maintenance during use.
Advantages of Ultra-Long LED Strip
Versatility
Extra-long LED strips are longer in length, providing greater flexibility in mounting options. They can be used to cover larger areas or around corners, curves, and other irregular surfaces to provide consistent lighting.
Low heat
LED technology generates limited heat, making extra-long LED strips safe to touch and suitable for use in a variety of environments, including areas where traditional lighting May not be possible due to heat dissipation issues.
Easy to install
LED light strips are designed for easy installation, with adhesive backing or mounting brackets to hold them securely to surfaces. Extra-long LED strips May include additional accessories such as connectors, power adapters, and controllers to simplify the installation process.
Environmentally friendly
LED lights are considered more environmentally friendly than traditional lighting options because they consume less energy and do not contain harmful elements such as mercury or other toxins. Using extra-long LED light strips helps save energy and reduce carbon emissions.

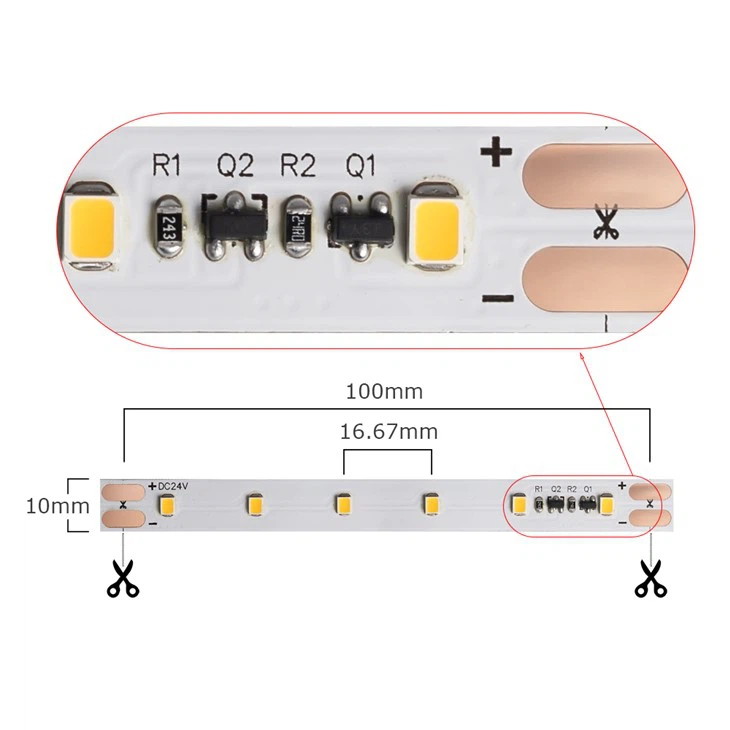

Specification of Ultra-Long LED Strip
| Item No. | HS-CC-2835-60D |
| Input Voltage | DC24V |
| Power | 6.2W/M |
| Luminous Flux | 620lm/M |
| Efficiency | 100lm/W |
| LED Type | 2835 |
| LED QTY | 60LEDs/M |
| Color | Warm White/Pure White/Cold White |
| PCB width | 10mm |
| RA | 80/90/95 |
Types of Ultra-Long LED Strip
Extended length LED strips
Extra-long LED strips
Extra-long LED strips can often be cut to shorter lengths or extended by adding connectors, allowing them to be precisely customized to fit specific space or lighting requirements. This size flexibility makes them suitable for a wide range of applications.
Extra-long LED strips are available in a variety of brightness levels and color temperatures, including warm white, cool white, RGB, and even color-changing options. This allows for easy customization and helps create different moods or lighting effects.
Ultra-Long LED Strip Manufacturing Process
Smd LED production: Smd-LED-chipsthe first step in the manufacturing process is the production of smd leds. These are small, surface-mounted devices that emit light when voltage is applied to them.
Solder paste printing: LED strip light reflow-solderingthe next step in the manufacturing process involves printing solder paste onto both sides of the pcb boards using a computer-controlled printer (screen printer). The solder paste helps to provide electrical connections between components on the pcbs and wires.
Component placement (smt): The smds are then placed on the respective pads on each side of the pcbs using automated machines known as pick-and-place machines. These machines do not require human assistance and can place hundreds of components per minute, giving manufacturers an efficient way of producing large numbers of LED strip lights without sacrificing quality or precision.
Reflow soldering: The next step involves reflow soldering all of the components together by applying heat until they melt into each other and form solid connections between pcb and LED.
Soldering: The leds in an LED strip are soldered onto a pcb (printed circuit board). This is done with special machines that heat up the surface of the board and then apply solder to it.
Aging and waterproofing: This step is important as it makes sure that your LED strip lights will last for a long time. It also ensures that they are waterproof, however, not all strips go through this step so make sure yours do!
Tape pasting and packaging: Your LED strip lights will be packaged in boxes or wrapped in plastic depending on how they are being shipped out to customers or retailers.
| Packing | Box |
| Shipping | Shipped by road, sea, rail |
FAQ
We're well-known as one of the leading ultra-long LED strip manufacturers and suppliers in China. Our factory offers high quality ultra-long LED strip made in China with low price. Welcome to contact us for customized service.
